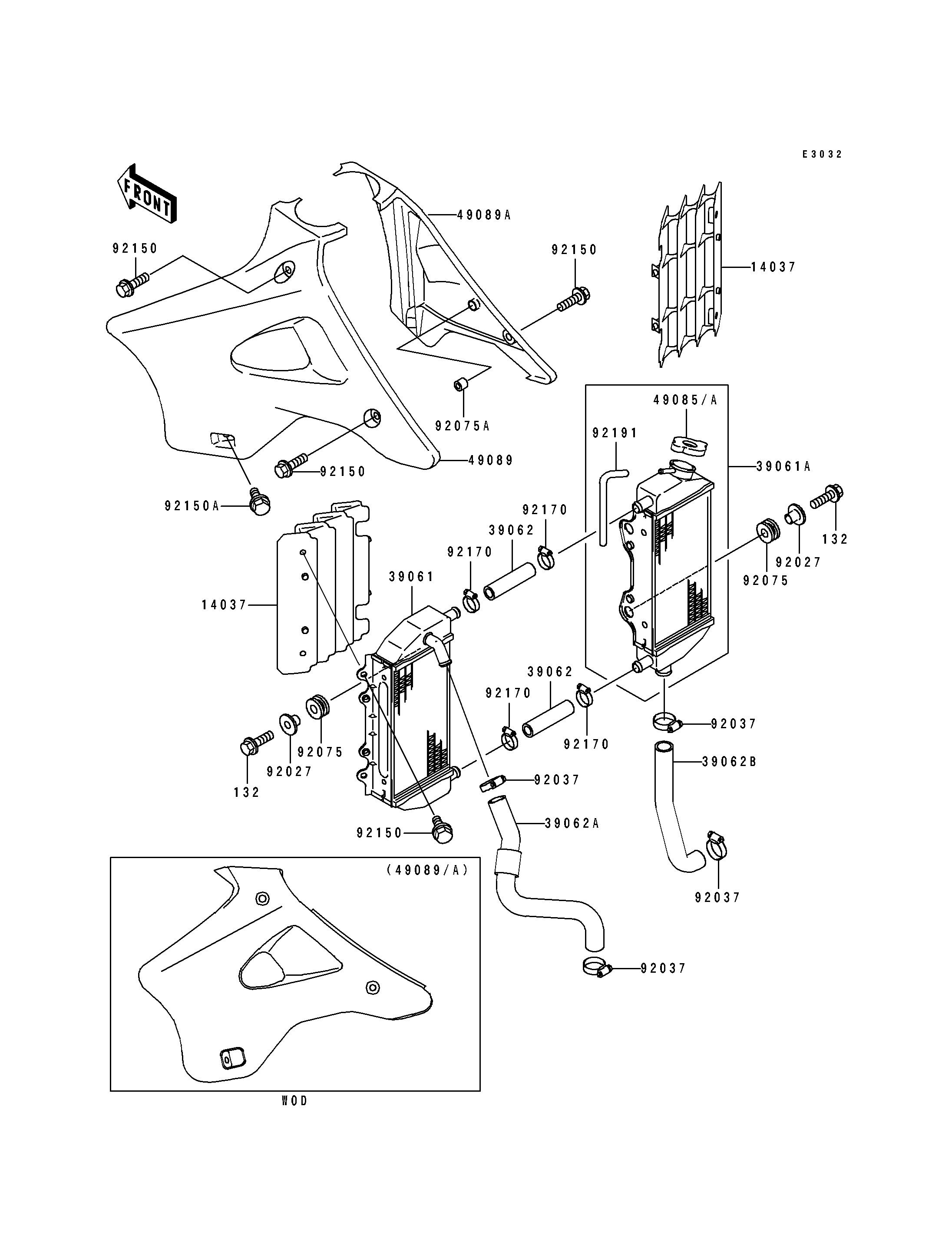

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0620 | 4 | ||
SCREEN,WHITE | 14037 | 14037-1179-RZ | 2 | ||
RADIATOR-ASSY,LH | 39061 | 39061-1229 | 1 | ||
RADIATOR-ASSY,RH | 39061A | 39061-1230 | 1 | ||
HOSE-COOLING,RADIATOR,LH-RH | 39062 | 39062-1551 | 2 | ||
HOSE-COOLING,HEAD-RADIATOR,LH | 39062A | 39062-1554 | 1 | ||
HOSE-COOLING,RADIATOR,RH-PUMP | 39062B | 39062-1555 | 1 | ||
CAP-ASSY-PRESSURE,P=1.6 | 49085 | 49085-1059 | 1 | ||
CAP-ASSY-PRESSURE | 49085A | 49085-1070 | 1 | ||
SHROUD-ENGINE,LH,L.GREEN | 49089 | 49089-1133-6W | 1 | ||
SHROUD-ENGINE,RH,L.GREEN | 49089A | 49089-1134-6W | 1 | ||
COLLAR,L=11.1 | 92027 | 92027-194 | 4 | ||
CLAMP,COOLING HOSE | 92037 | 92037-1589 | 4 | ||
DAMPER | 92075 | 92075-209 | 4 | ||
DAMPER,AIR FILTER | 92075A | 92075-217 | 2 | ||
BOLT,6X12 | 92150 | 92150-1435 | 6 | ||
BOLT,6X20 | 92150A | 92150-1801 | 2 | ||
CLAMP | 92170 | 92170-1283 | 4 | ||
TUBE,5X8X700 | 92191 | 92191-1122 | 1 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREEN,WHITE | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RADIATOR-ASSY,LH | |
REF # | 39061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR-ASSY,RH | |
REF # | 39061A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR,LH-RH | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOSE-COOLING,HEAD-RADIATOR,LH | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR,RH-PUMP | |
REF # | 39062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE,P=1.6 | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD-ENGINE,LH,L.GREEN | |
REF # | 49089 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD-ENGINE,RH,L.GREEN | |
REF # | 49089A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,L=11.1 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,COOLING HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER,AIR FILTER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
TUBE,5X8X700 | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
