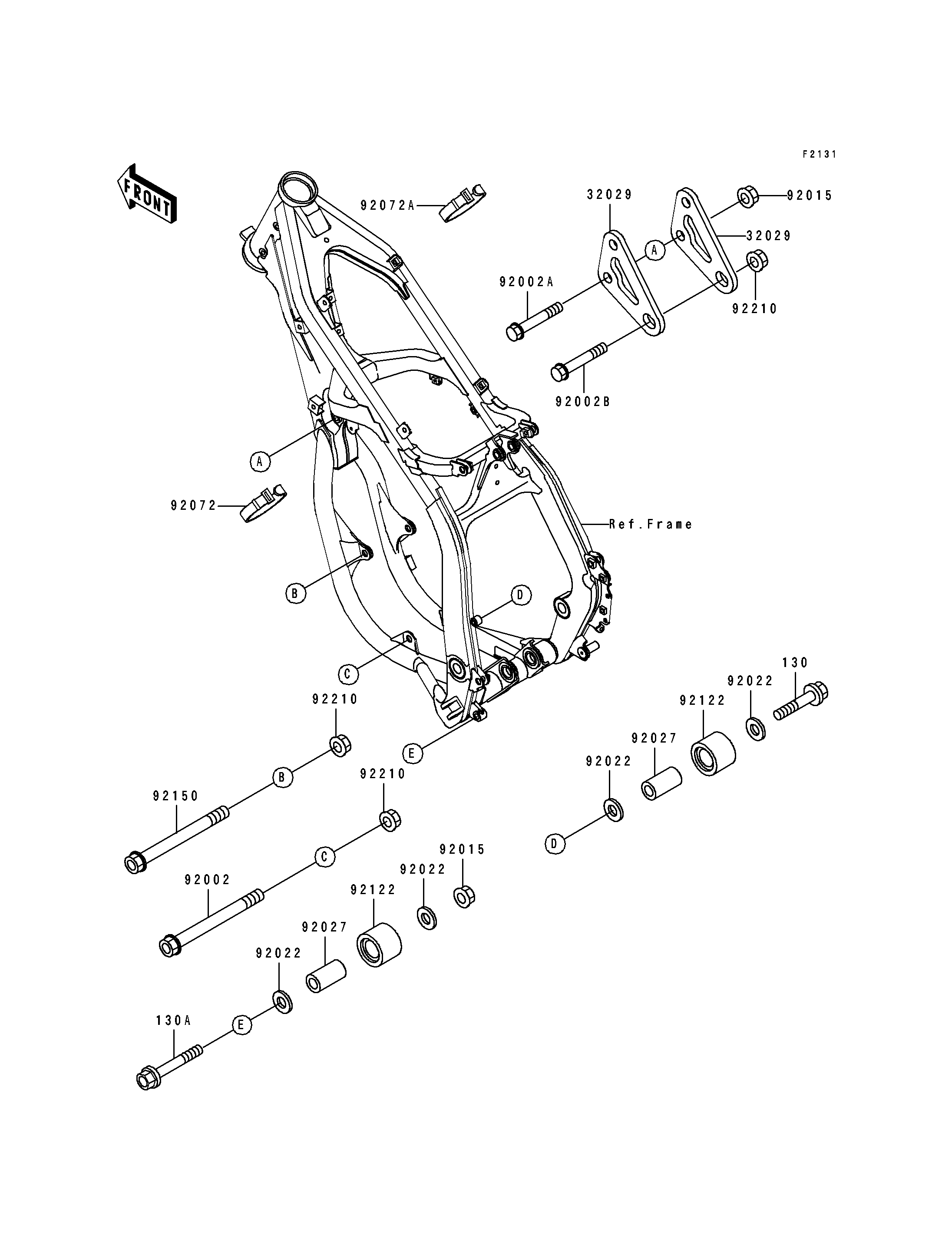

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X40 130 130G0840 1
BOLT-FLANGED,8X55 130A 130G0855 1
BRACKET-ENGINE 32029 32029-1944 2
BOLT,FLANGED,10X105 92002 92002-1491 1
BOLT,FLANGED,8X52 92002A 92002-1857 2
BOLT,FLANGED,10X53 92002B 92002-1936 1
NUT,8MM 92015 92015-1432 3
WASHER,8.5X22X1.5 92022 92022-1629 4
COLLAR,CHAIN ROLLER 92027 92027-1670 2
BAND,L=149 92072 92072-031 1
BAND,L=186 92072A 92072-056 2
ROLLER,CHAIN GUIDE 92122 92122-1153 2
BOLT,FLANGED,10X95 92150 92150-1230 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 3
