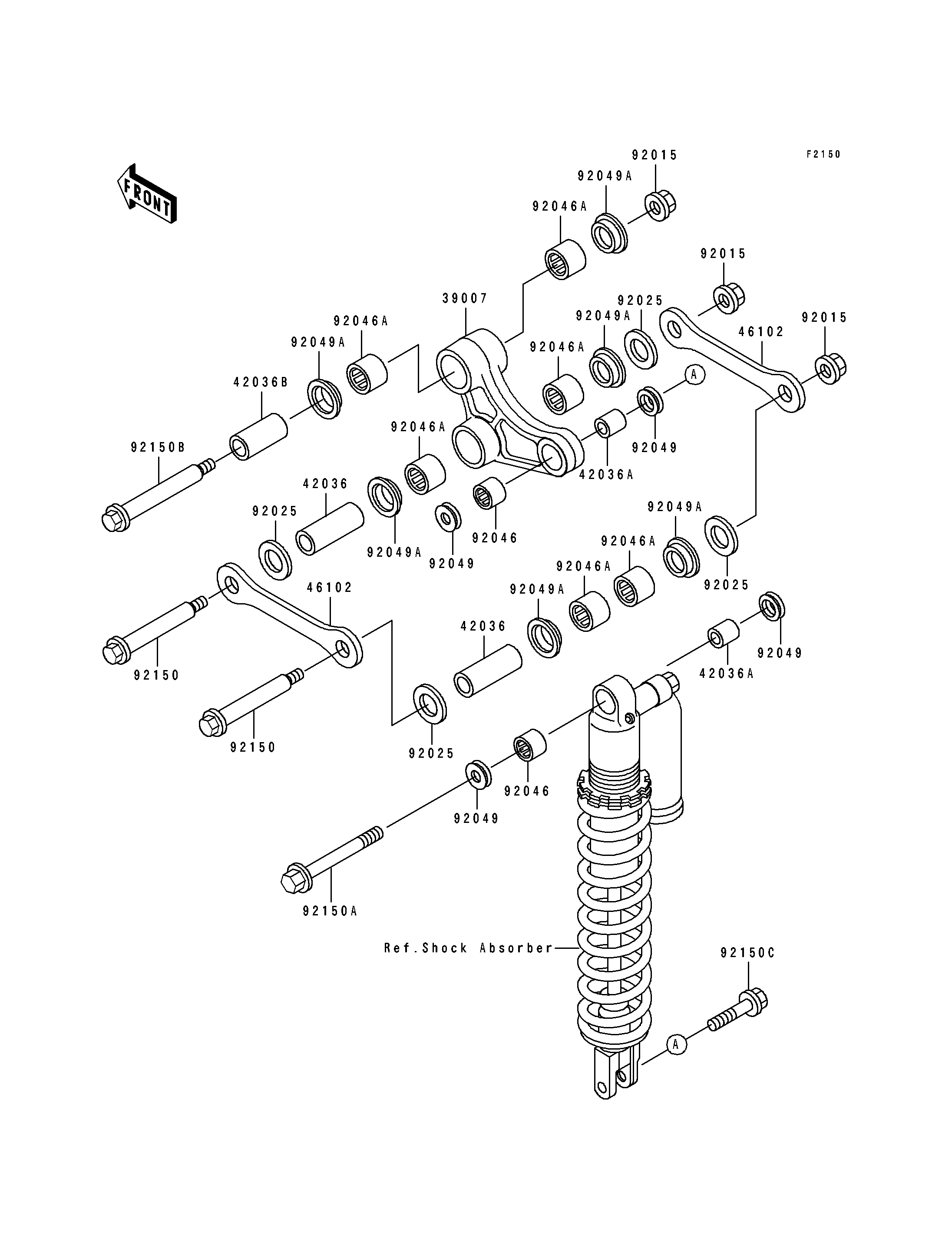

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1243 1
SLEEVE,15X22X57 42036 42036-1245 2
SLEEVE,10X16X19 42036A 42036-1248 2
SLEEVE,15X22X45 42036B 42036-1309 1
ROD,SUSPENSION 46102 46102-1404 2
NUT,FLANGED,12MM 92015 92015-1433 3
SHIM,15.3X27.5X0.6 92025 92025-1135 4
BEARING-NEEDLE,16BM2212 92046 92046-1192 2
BEARING-NEEDLE,22BM2816 92046A 92046-1216 6
SEAL-OIL 92049 92049-1330 4
SEAL-OIL,MHA22 28 5.7F-1 92049A 92049-1402 6
BOLT,ROD,12X93 92150 92150-1337 2
BOLT,FLANGED,10X42 92150A 92150-1571 1
BOLT,FLANGED,12X76 92150B 92150-1701 1
BOLT,FLANGED,10X40 92150C 92150-1711 1
