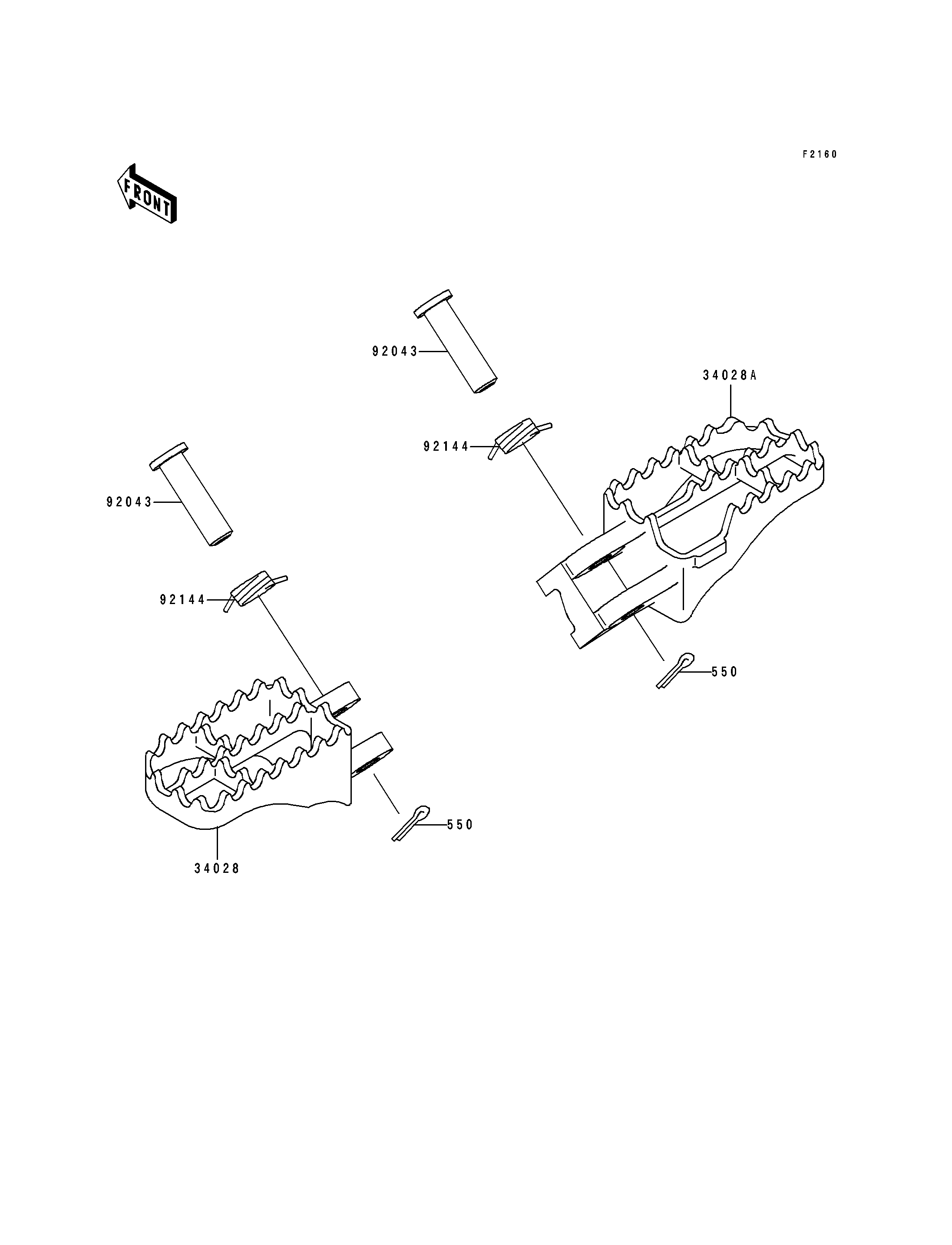

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,3.0X20 550 550S3020 2
STEP,LH,SILVER 34028 34028-1418-CE 1
STEP,RH,SILVER 34028A 34028-1419-CE 1
PIN,10X48.5 92043 92043-1538 2
SPRING,STEP 92144 92144-1951 2
