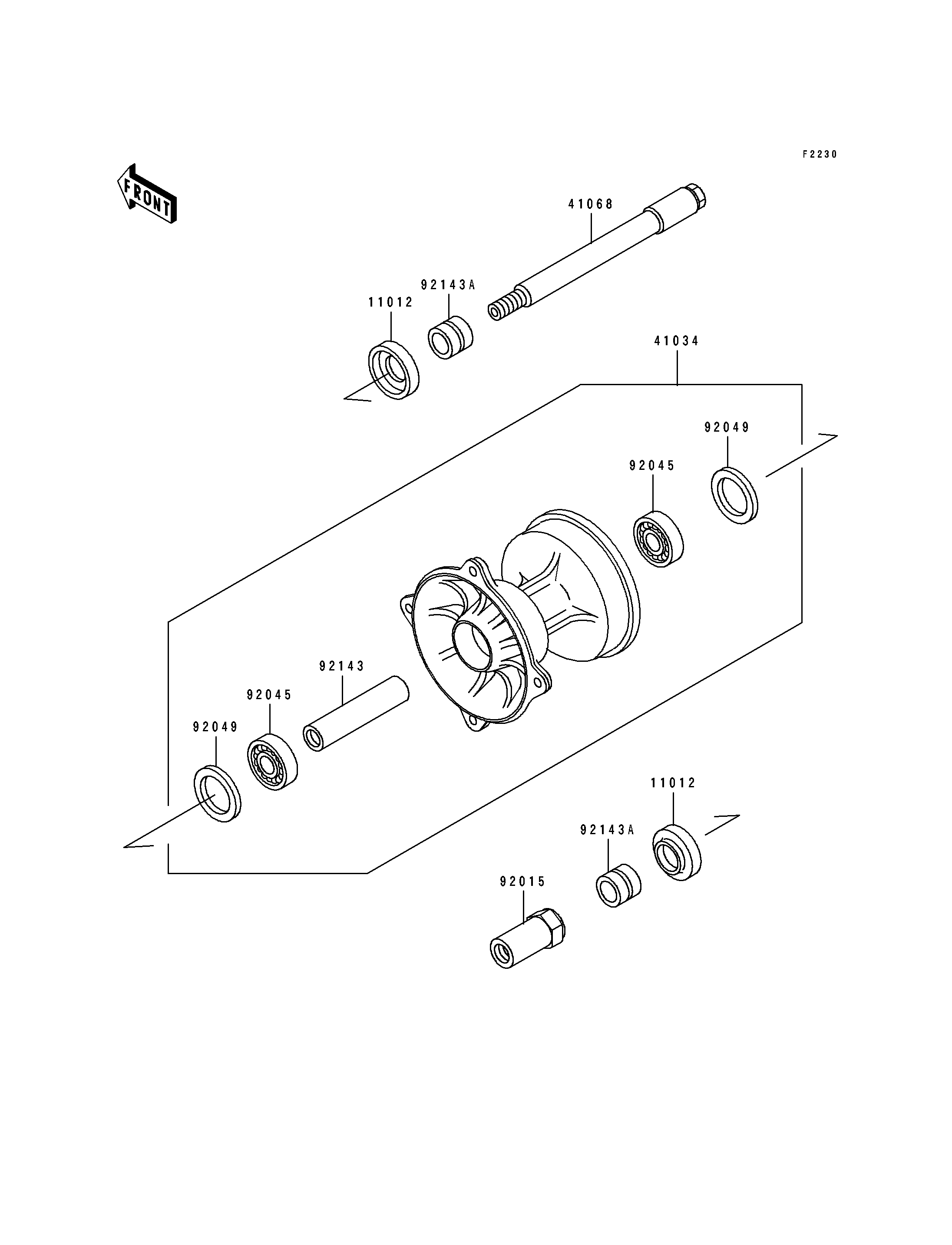

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,AXLE 11012 11012-1581 2
DRUM-ASSY,FRONT BRAKE 41034 41034-1226 1
AXLE,FR 41068 41068-1342 1
NUT,AXLE,18MM 92015 92015-1884 1
BEARING-BALL,69042RS 92045 92045-1284 2
SEAL-OIL,BJNC-2 25X37X5 92049 92049-1403 2
COLLAR,FR BRAKE DRUM,L=72 92143 92143-1580 1
COLLAR,FR AXLE,L=20 92143A 92143-1581 2
