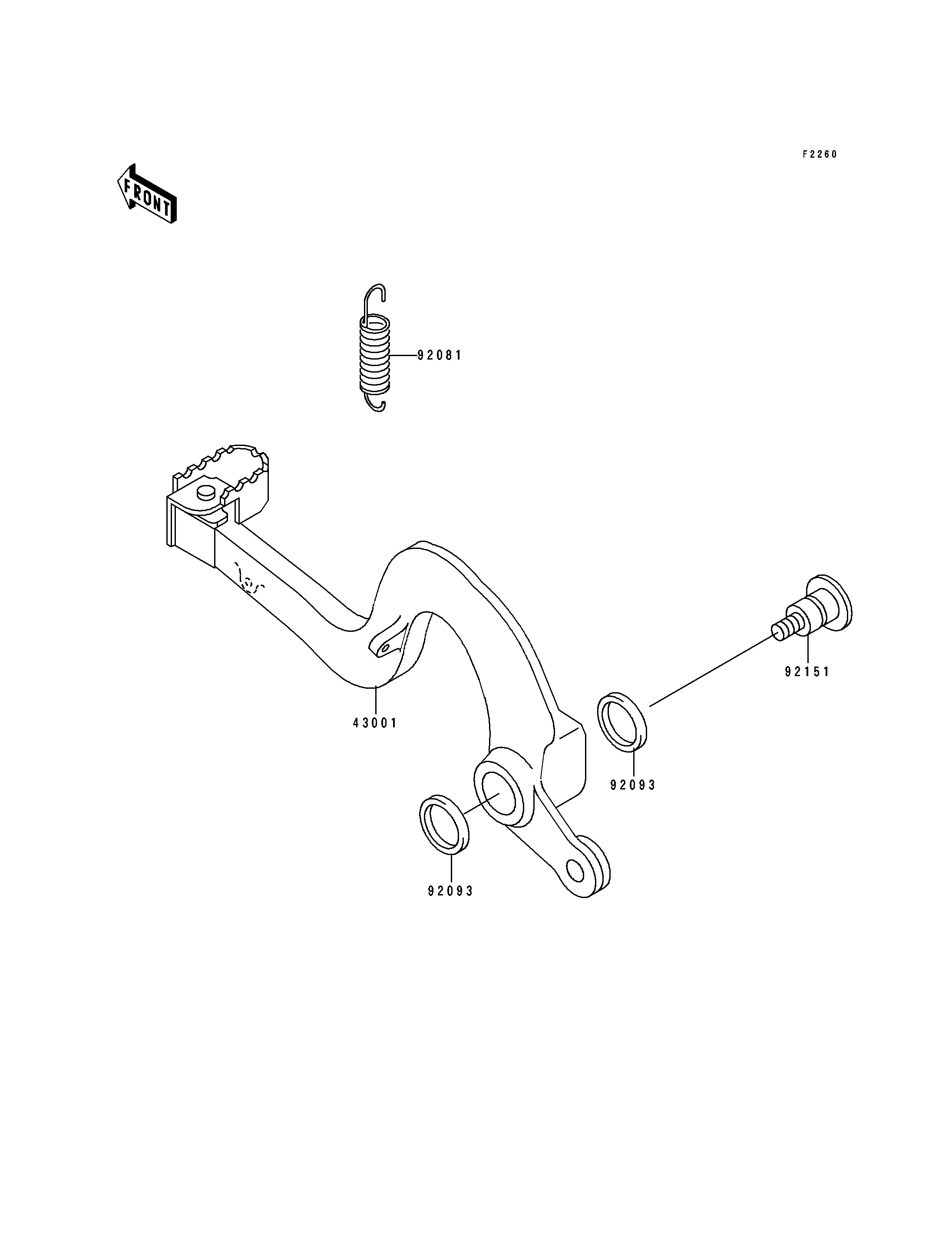

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1382 1
SPRING,BRAKE PEDAL RETURN 92081 92081-1932 1
SEAL,MY15.9X20X2.8 92093 92093-1433 2
BOLT 92151 92151-1104 1
