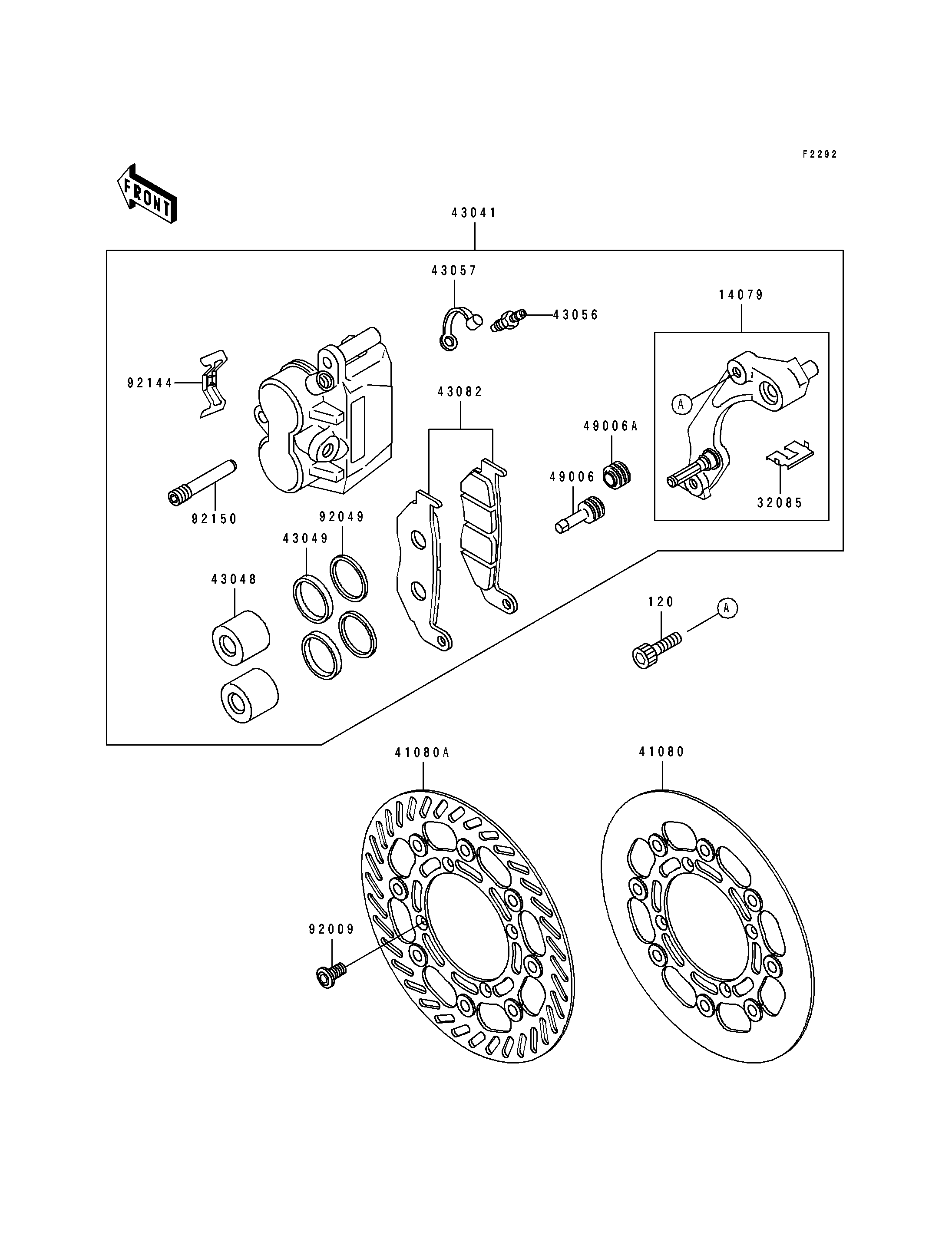

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X40 120 120P0840 2
HOLDER-ASSY,FRONT CALIPER 14079 14079-1097 1
STOPPER,PAD 32085 32085-1361 1
DISC,FR 41080 41080-1365 1 (OPTION)
DISC,FR 41080A 41080-1387 1
CALIPER-ASSY,FR,LH 43041 43041-1605 1
PISTON-CALIPER 43048 43048-1082 2
PACKING 43049 43049-1080 2
BREATHER-BRAKE 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
PAD-ASSY-BRAKE 43082 43082-1193 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
SCREW,6X14 92009 92009-1546 4
SEAL-OIL 92049 92049-1447 2
SPRING,PAD 92144 92144-1721 1
BOLT,HANGER 92150 92150-1691 1
