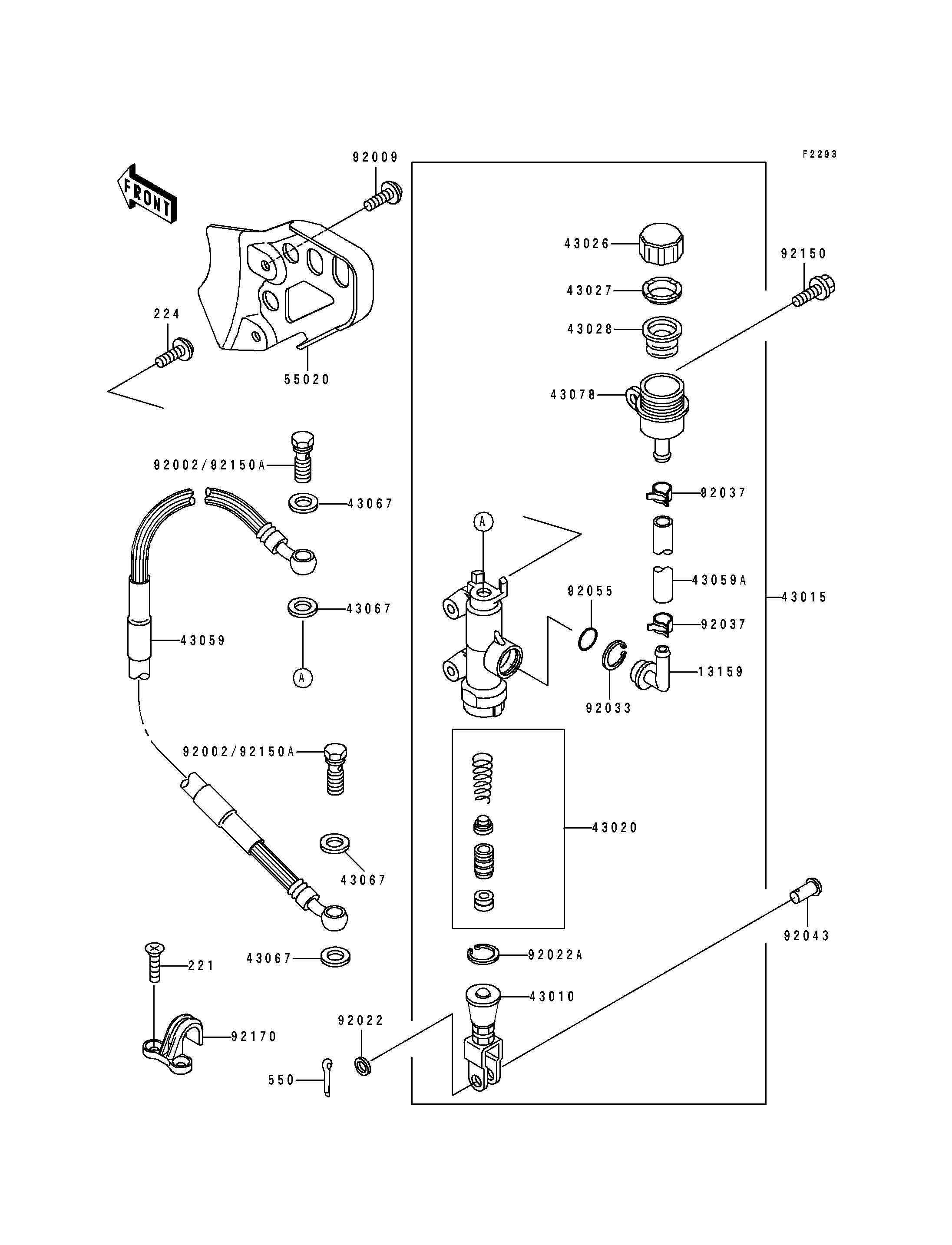

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-CSK-CROS | 221 | 221B0510 | 4 | ||
| SCREW-PAN-WP-CROS | 224 | 224B0614 | 2 | ||
| PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
| CONNECTOR | 13159 | 13159-1056 | 1 | ||
| ROD-ASSY-BRAKE | 43010 | 43010-1076 | 1 | ||
| CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1597 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1094 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1058 | 1 | ||
| PLATE-DIAPHRAGM | 43027 | 43027-1052 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1060 | 1 | ||
| HOSE-BRAKE,RR | 43059 | 43059-1982 | 1 | ||
| HOSE-BRAKE,RR MASTER CYLINDER | 43059A | 43059-1985 | 1 | ||
| WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
| RESERVOIR | 43078 | 43078-1068 | 1 | ||
| GUARD,RR M/CYLINDER&OIL TANK | 55020 | 55020-1487 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
| SCREW,6X10,WHITE | 92009 | 92009-1286 | 2 | ||
| WASHER,8.5X13X1 | 92022 | 92022-1028 | 1 | ||
| WASHER,CIRCRIP | 92022A | 92022-1601 | 1 | ||
| RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
| CLAMP | 92037 | 92037-1710 | 2 | ||
| PIN | 92043 | 92043-1039 | 1 | ||
| RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
| BOLT,FLANGED,6X25 | 92150 | 92150-1507 | 1 | ||
| BOLT,OIL,L=23 | 92150A | 92150-1886 | 2 | (OPTION) | |
| CLAMP,HOSE | 92170 | 92170-1684 | 2 |
