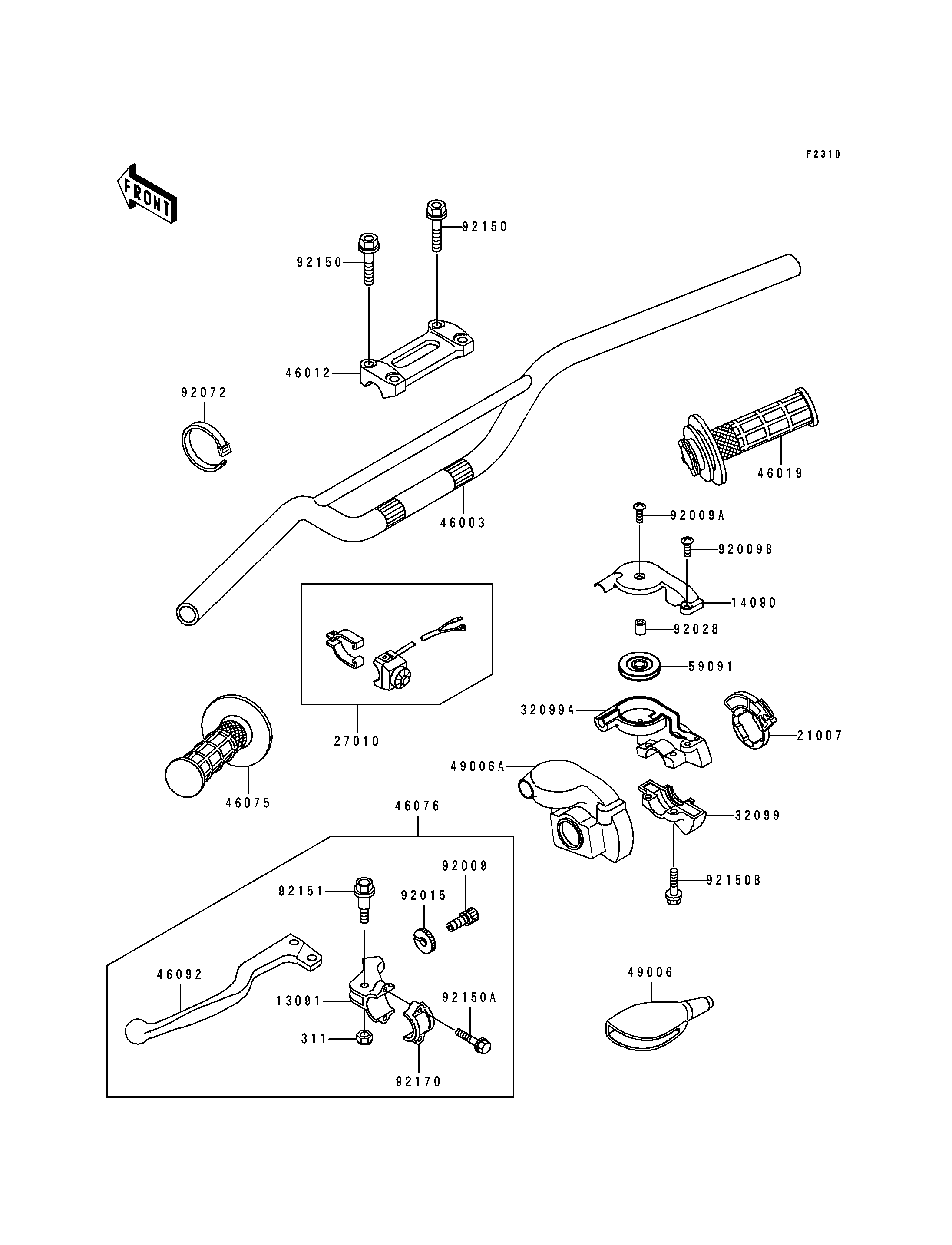

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX | 311 | 311C0500 | 1 | ||
| HOLDER,CLUTCH LEVER | 13091 | 13091-1728 | 1 | ||
| COVER,THROTTLE CASE,UPP | 14090 | 14090-1161 | 1 | ||
| ROTOR,THROTTLE | 21007 | 21007-1242 | 1 | ||
| SWITCH,ENGINE STOP | 27010 | 27010-1350 | 1 | ||
| CASE,THROTTLE,LWR | 32099 | 32099-1138 | 1 | ||
| CASE,THROTTLE,UPP | 32099A | 32099-1168 | 1 | ||
| HANDLE,L.GREEN | 46003 | 46003-1422-CC | 1 | ||
| HOLDER-HANDLE,UPP | 46012 | 46012-1190 | 1 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1076 | 1 | ||
| GRIP,LH | 46075 | 46075-1024 | 1 | ||
| LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1202 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-1165 | 1 | ||
| BOOT,LEVER HOLDER | 49006 | 49006-1017 | 1 | ||
| BOOT,THROTTLE | 49006A | 49006-1301 | 1 | ||
| PULLEY,THROTTLE | 59091 | 59091-1102 | 1 | ||
| SCREW,CABLE ADJUST,8MM | 92009 | 92009-1435 | 1 | ||
| SCREW | 92009A | 92009-1674 | 1 | ||
| SCREW | 92009B | 92009-1675 | 1 | ||
| NUT,CABLE ADJUST LOCK | 92015 | 92015-1596 | 1 | ||
| BUSHING,THROTTLE CASE | 92028 | 92028-1658 | 1 | ||
| BAND,L=123 | 92072 | 92072-030 | 1 | ||
| BOLT,FLANGED,8X30 | 92150 | 92150-1455 | 4 | ||
| BOLT | 92150A | 92150-1474 | 2 | ||
| BOLT | 92150B | 92150-1559 | 2 | ||
| BOLT,LEVER SET,5MM | 92151 | 92151-1103 | 1 | ||
| CLAMP,LEVER HOLDER | 92170 | 92170-1226 | 1 |
| NUT-HEX | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH LEVER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,THROTTLE CASE,UPP | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,THROTTLE | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,ENGINE STOP | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,THROTTLE,LWR | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,THROTTLE,UPP | |
| REF # | 32099A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLE,L.GREEN | |
| REF # | 46003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLE,UPP | |
| REF # | 46012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,THROTTLE | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,LH | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-GRIP,CLUTCH | |
| REF # | 46076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-GRIP,CLUTCH | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,LEVER HOLDER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,THROTTLE | |
| REF # | 49006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PULLEY,THROTTLE | |
| REF # | 59091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,CABLE ADJUST,8MM | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CABLE ADJUST LOCK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,THROTTLE CASE | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X30 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,LEVER SET,5MM | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,LEVER HOLDER | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
