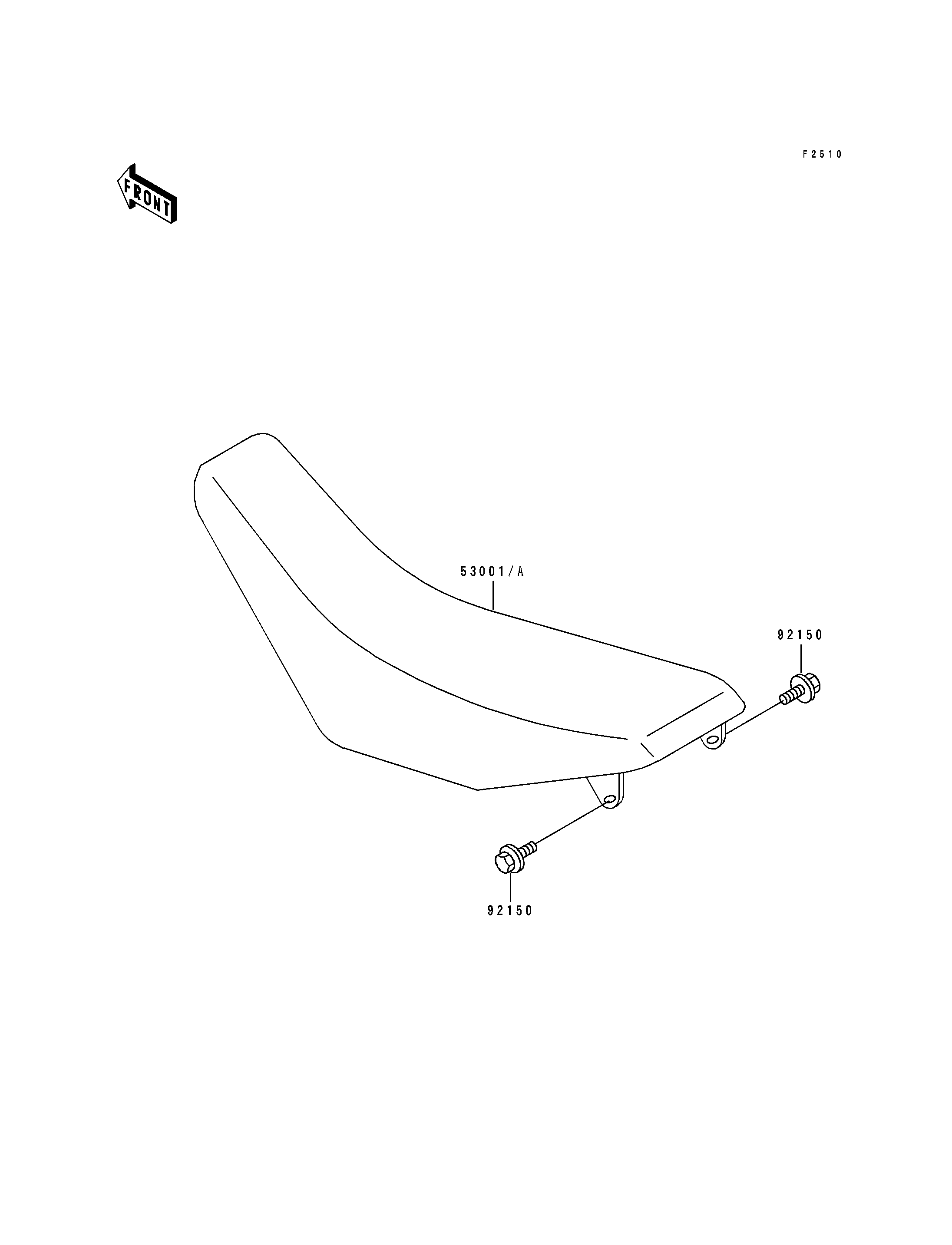

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY,LOW HEIGHT,VIOLET 53001 53001-1814-LW 1 (OPTION)
SEAT-ASSY,HIGH HEIGHT,VIOLET 53001A 53001-1815-LW 1
BOLT,6X20 92150 92150-1339 2
