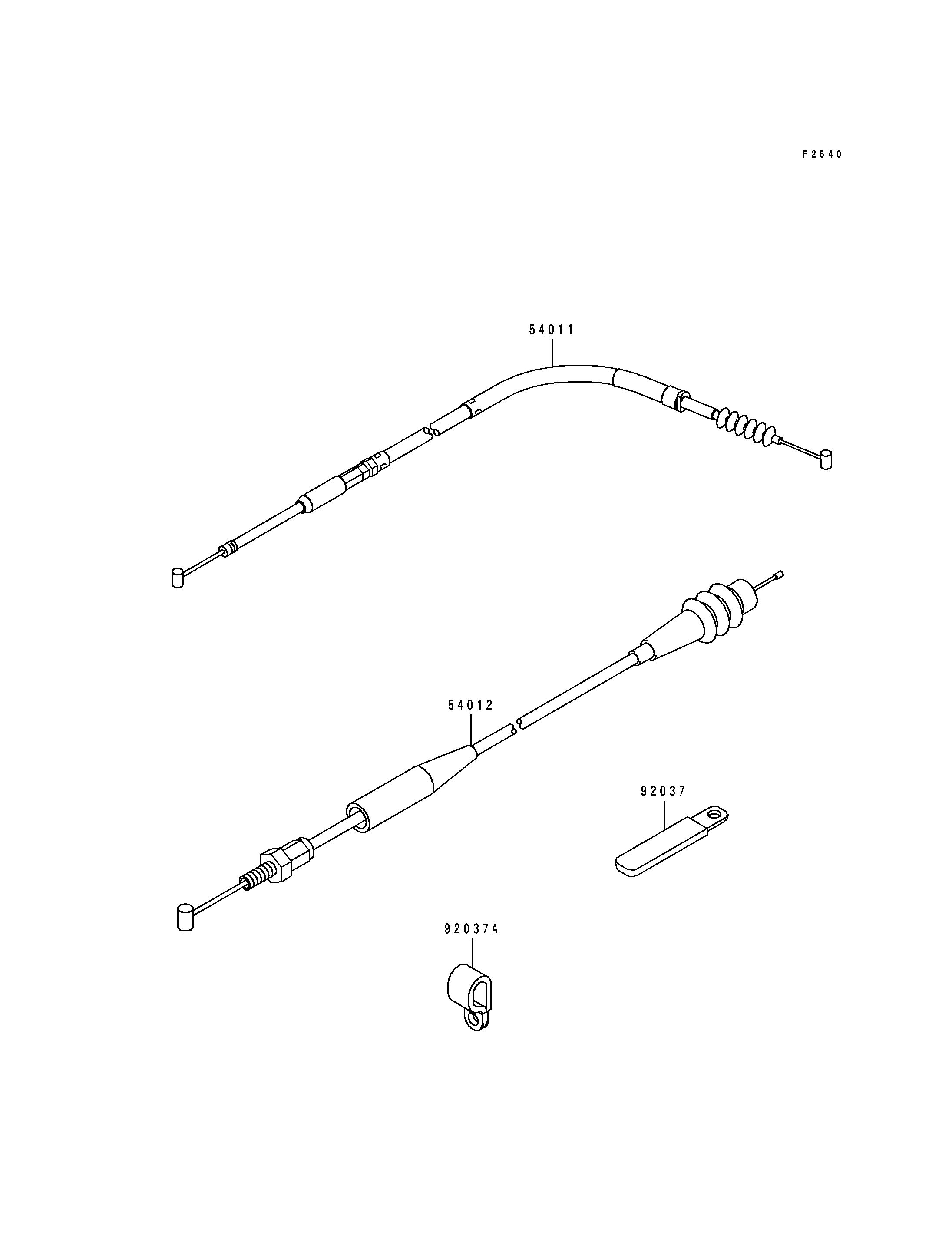

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-CLUTCH 54011 54011-1365 1
CABLE-THROTTLE 54012 54012-1432 1
CLAMP,WIRING HARNESS 92037 92037-1539 1
CLAMP 92037A 92037-1608 1
