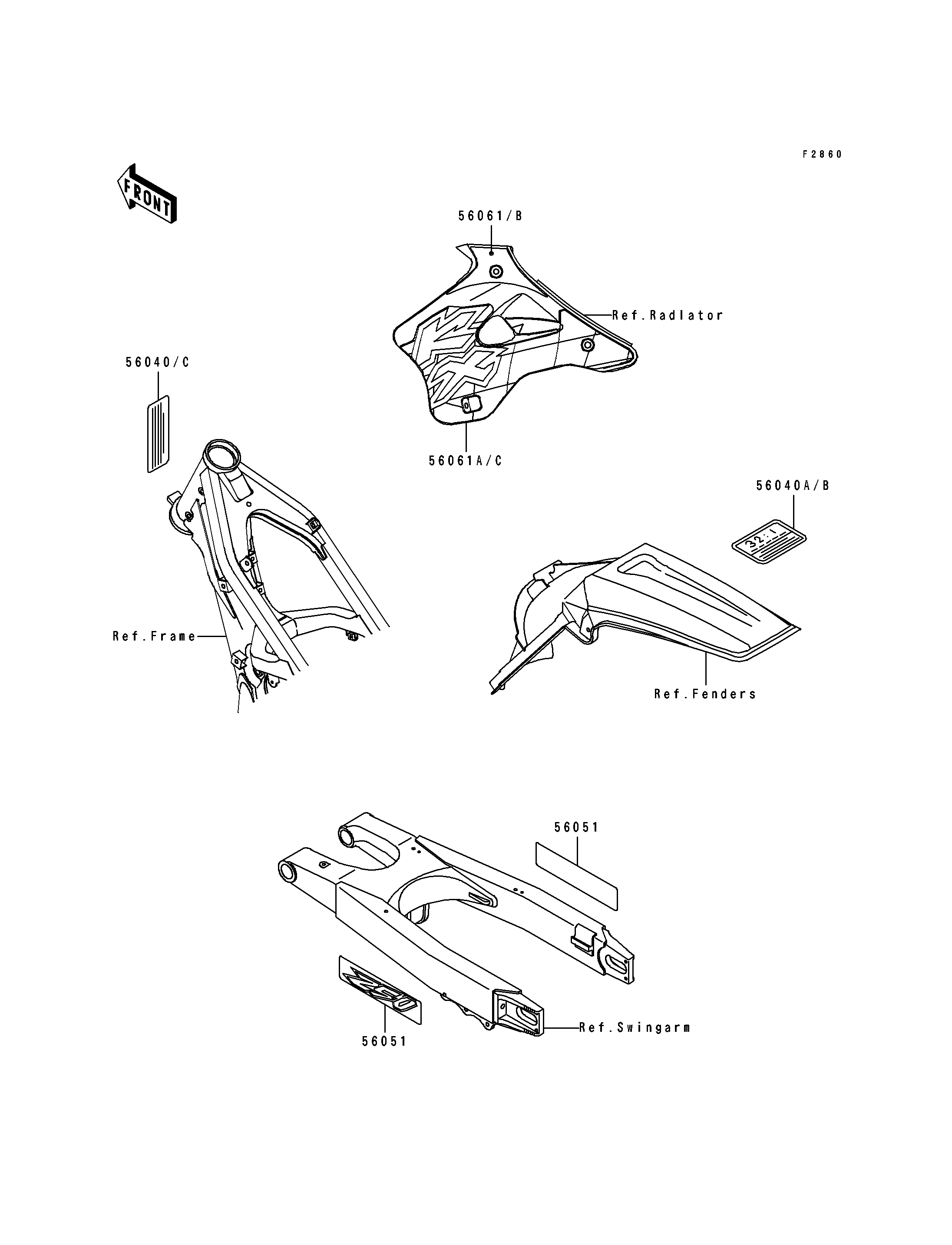

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-WARNING,NOISE 56040 56040-1101 1
LABEL-WARNING,GASOLINE/OIL 56040A 56040-1129 1
LABEL-WARNING,GASOLINE/OIL 56040B 56040-1306 1
LABEL-WARNING,WARRANTY 56040C 56040-1335 1
MARK,SWING ARM,250 56051 56051-1514 2
PATTERN,SHROUD,UPP,LH 56061 56061-1802 1
PATTERN,SHROUD,LWR,LH 56061A 56061-1803 1
PATTERN,SHROUD,UPP,RH 56061B 56061-1804 1
PATTERN,SHROUD,LWR,RH 56061C 56061-1805 1
