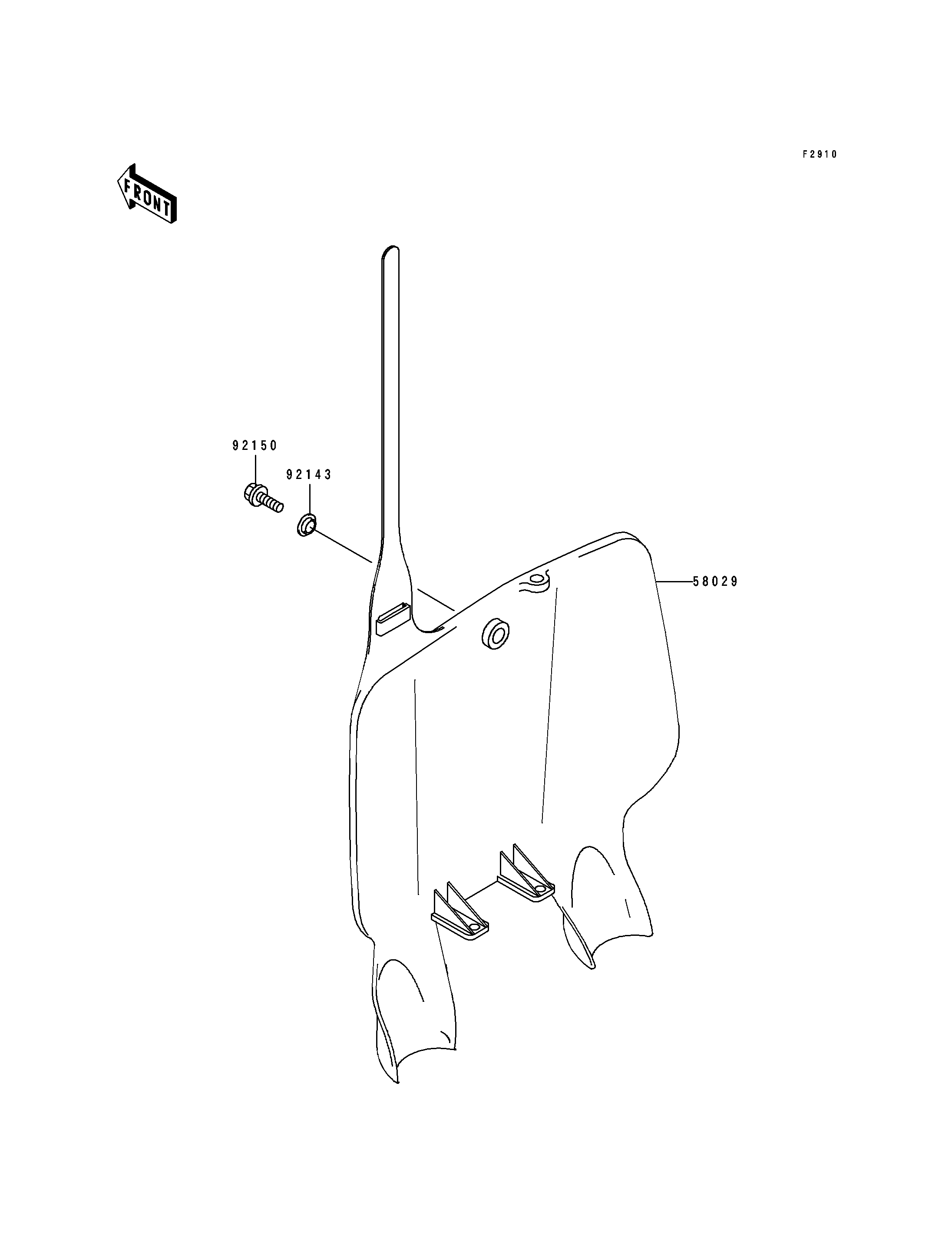

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE-NUMBER,P.WHITE 58029 58029-1078-6F 1
COLLAR 92143 92143-1196 1
BOLT,6X14 92150 92150-1340 1
