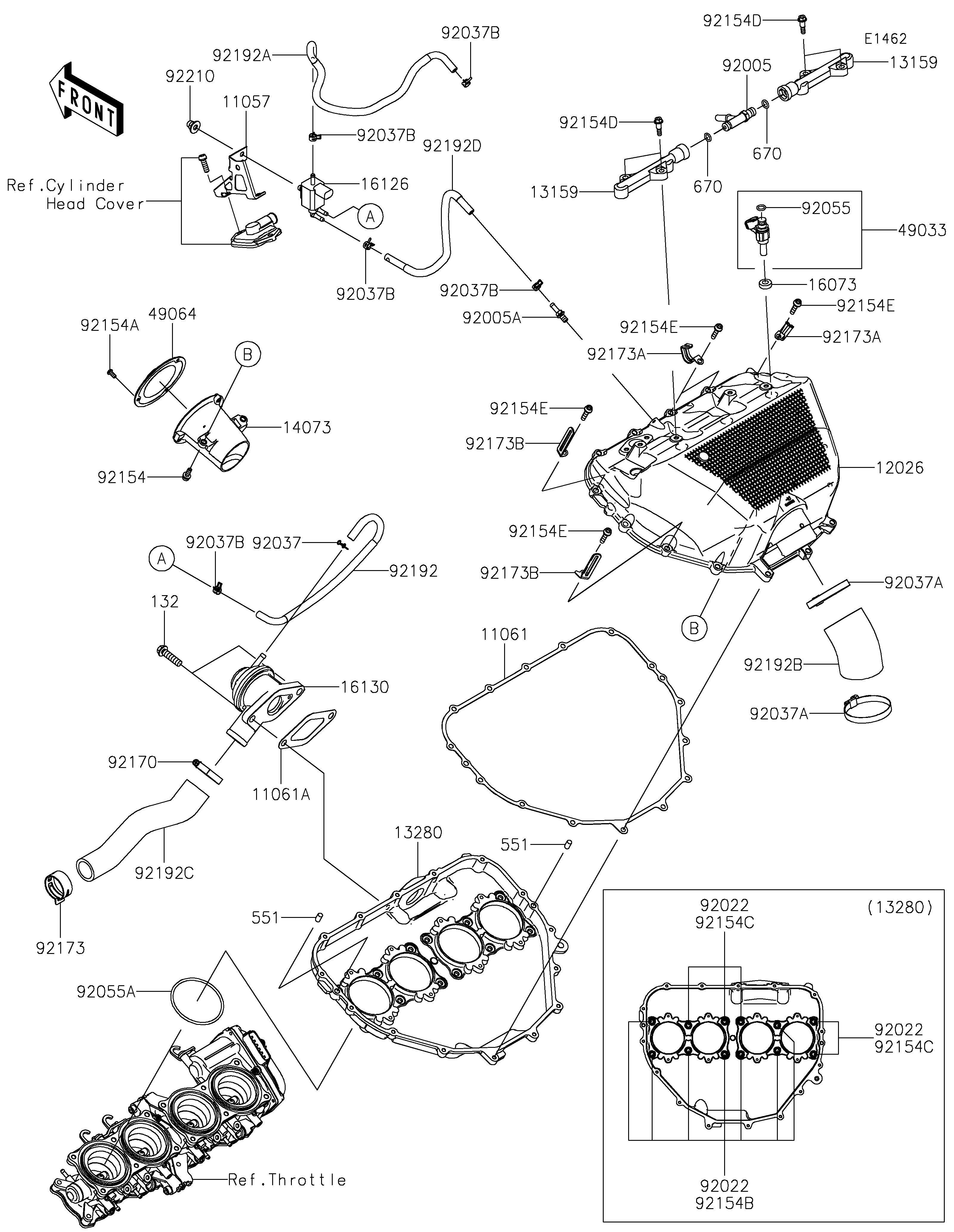

2020 Z H2 - Air Chamber

DOWNLOAD PDF
SELECT A NEW PART
11057
11061
11061A
12026
13159
13159
132
13280
14073
16073
16126
16130
49033
49064
551
551
670
670
92005
92005A
92022
92022
92022
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92055
92055A
92154
92154A
92154B
92154C
92154C
92154D
92154D
92154E
92154E
92154E
92154E
92170
92173
92173A
92173A
92173B
92173B
92192
92192A
92192B
92192C
92192D
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SOLENOID VALVE 11057 11057-3820 1
GASKET,CHAMBER 11061 11061-0949 1
GASKET,BLOWOFF VALVE 11061A 11061-0950 1
CHAMBER,INTAKE 12026 12026-0023 1
CONNECTOR 13159 13159-0016 2
BOLT-FLANGED-SMALL,8X30 132 132BC0830 2
HOLDER,CHAMBER 13280 13280-0905 1
DUCT,DIFFUSER 14073 14073-0884 1
INSULATOR 16073 16073-0129 4
VALVE,SOLENOID 16126 16126-0751 1
VALVE-ASSY-RELIEF 16130 16130-0010 1
NOZZLE-INJECTION 49033 49033-0565 4
FILTER-AIR 49064 49064-0007 1
PIN-DOWEL,6X12 551 551A0612 2
O RING,8MM 670 670E1508 2
FITTING 92005 92005-0125 1
FITTING 92005A 92005-0826 1
WASHER,5.5X10.5X0.8 92022 92022-037 12
CLAMP,TUBE 92037 92037-147 1
CLAMP,RESERVE TANK 92037A 92037-1586 2
CLAMP,7.8MM 92037B 92037-2116 5
RING-O,INJECTION NOZZLE 92055 92055-0124 4
RING-O,65.8X3 92055A 92055-0815 4
BOLT,SOCKET,5X16 92154 92154-1568 2
BOLT,TORX,4X10 92154A 92154-1790 3
BOLT,FLANGED,5X14 92154B 92154-3884 7
BOLT,FLANGED,5X95 92154C 92154-3886 5
BOLT,SHOULDER,5X20 92154D 92154-3971 4
BOLT,SOCKET,5X22 92154E 92154-4055 15
CLAMP 92170 92170-1036 1
CLAMP,35.5MM 92173 92173-1432 1
CLAMP 92173A 92173-2305 3
CLAMP 92173B 92173-2307 2
TUBE,SOLENOID-BLOWOFF VALVE 92192 92192-1841 1
TUBE,SOLENOID-THROTTLE BODY 92192A 92192-1842 1
TUBE,DIFFUSER 92192B 92192-1865 1
TUBE,BLOWOFF VALVE-AIR FILTER 92192C 92192-2290 1
TUBE,SOLENOID-CHAMBER 92192D 92192-2497 1
NUT,CAP,6MM 92210 92210-0170 1
