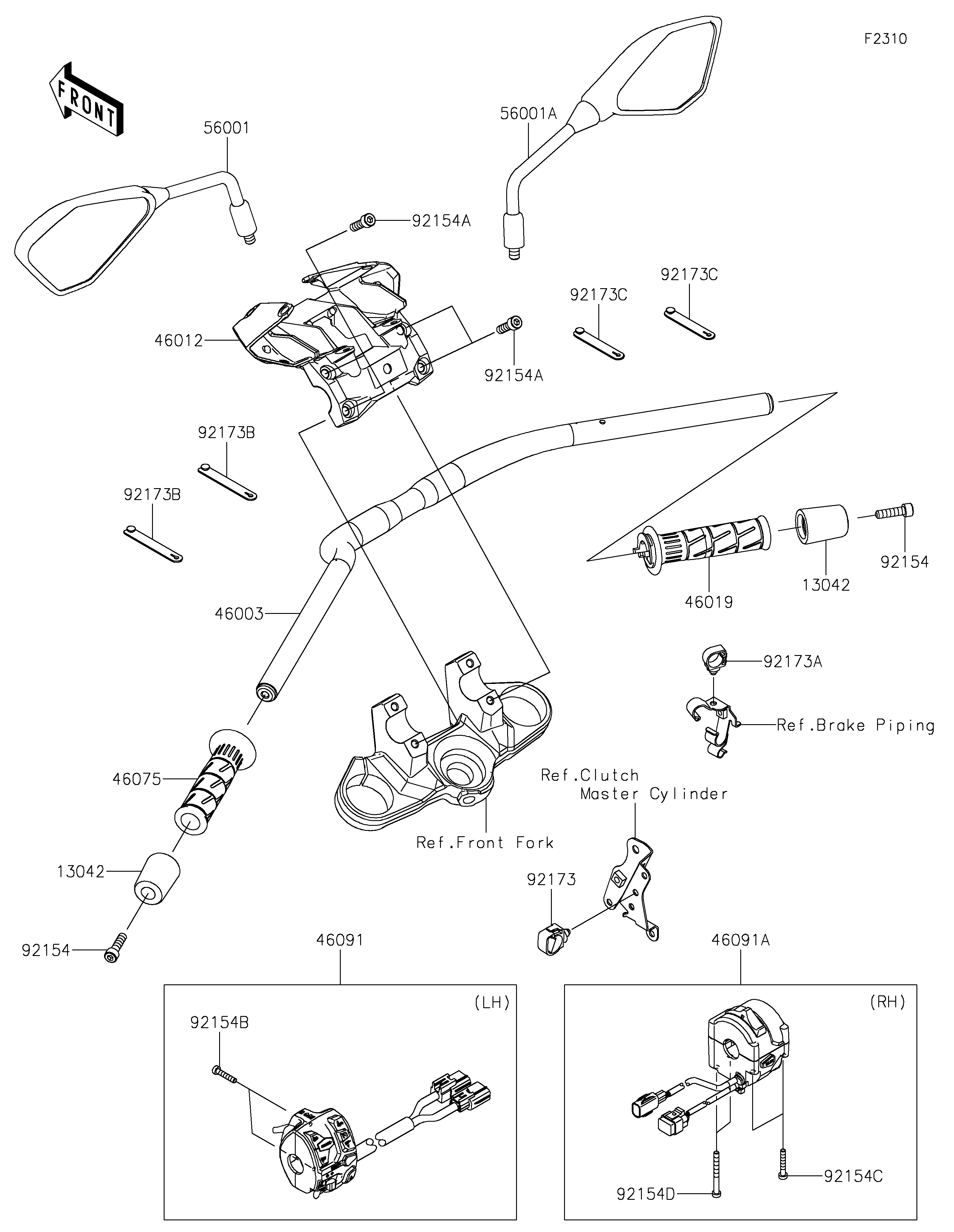

2020 Z H2 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
46003
46012
46019
46075
46091
46091A
56001
56001A
92154
92154
92154A
92154A
92154B
92154C
92154D
92173
92173A
92173B
92173B
92173C
92173C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-5007 2
HANDLE,F.S.BLACK 46003 46003-0758-18R 1
HOLDER-HANDLE 46012 46012-0402 1
GRIP-ASSY,THROTTLE 46019 46019-0100 1
GRIP,HANDLE,LH 46075 46075-1144 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0537 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0547 1
MIRROR-ASSY,LH 56001 56001-0299 1
MIRROR-ASSY,RH 56001A 56001-0300 1
BOLT,SOCKET,8X30 92154 92154-0502 2
BOLT,SOCKET,8X25 92154A 92154-1236 4
BOLT,SOCKET,5X25 92154B 92154-2596 2
BOLT,5X30 92154C 92154-3921 2
BOLT,5X50 92154D 92154-3922 2
CLAMP 92173 92173-0861 1
CLAMP,HOLDER CLIP 92173A 92173-0868 1
CLAMP 92173B 92173-2194 2
CLAMP 92173C 92173-2199 2
