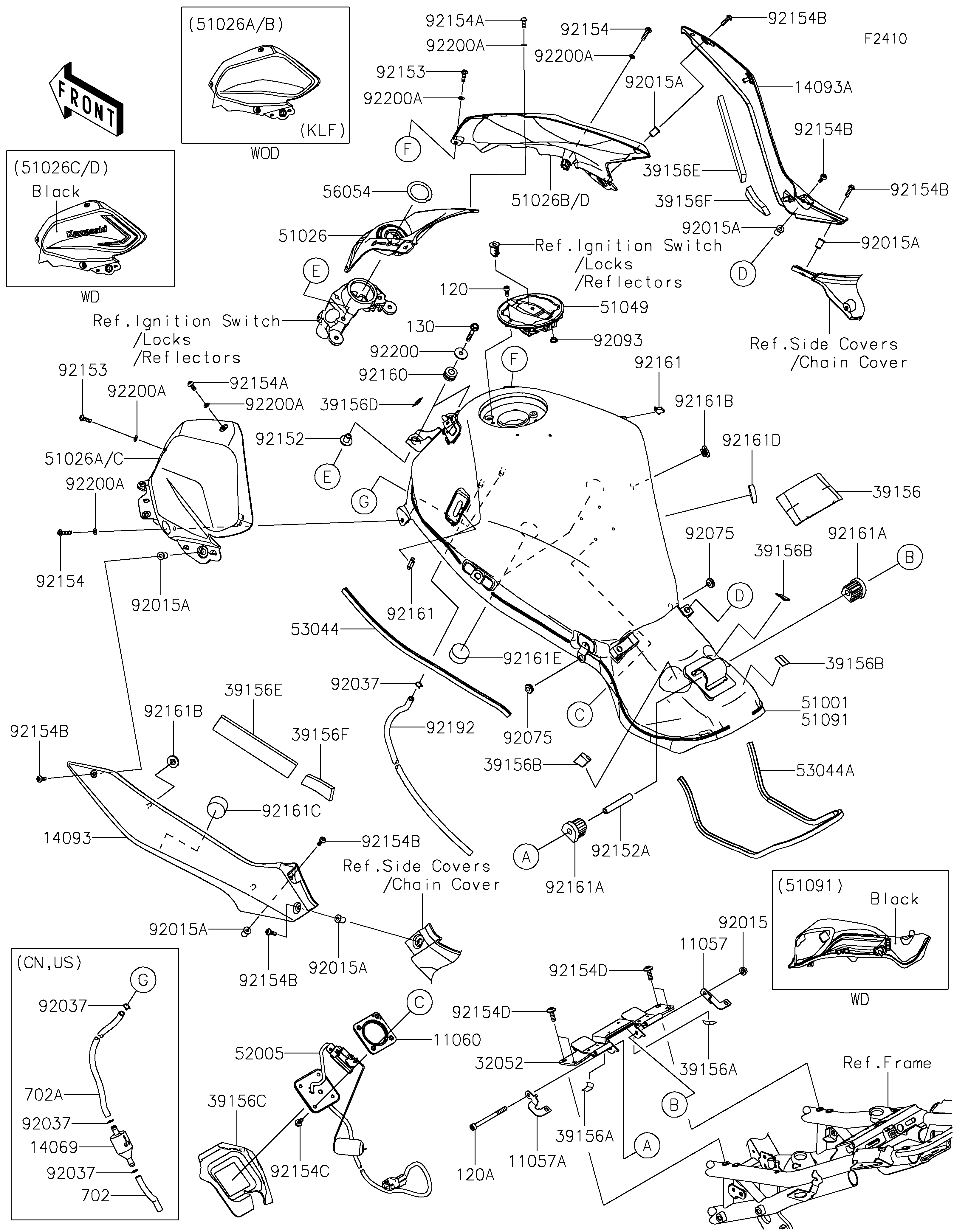

2020 Z H2 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
11060
11060
14069
14069
14093
14093
14093A
14093A
32052
32052
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156B
39156B
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156E
39156E
39156F
39156F
39156F
39156F
51026
51026
51026C
51026C
51026D
51026D
51049
51049
51091
51091
52005
52005
53044
53044
53044A
53044A
56054
56054
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92037
92037
92037
92037
92037
92037
92037
92037
92075
92075
92075
92075
92093
92093
120
120
120A
120A
130
130
702
702
702A
702A
92152
92152
92152A
92152A
92153
92153
92153
92153
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92160
92160
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92161D
92161D
92161E
92161E
92192
92192
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL GAUGE CONNECTOR 11057 11057-2911 1
BRACKET,FUEL PUMP CONNECTOR 11057A 11057-3780 1
GASKET,FUEL GAUGE 11060 11060-1952 1
BREATHER,TANK 14069 14069-0008 1 _________________________________________CN,US
COVER,KNEE GRIP,LH 14093 14093-0968 1
COVER,KNEE GRIP,RH 14093A 14093-0969 1
BRACKET-TANK 32052 32052-0823 1
PAD,RR FRM 39156 39156-1778 1
PAD,15X20X0.2 39156A 39156-1784 2
PAD,20X20X1 39156B 39156-2288 3
PAD,FUEL TANK 39156C 39156-2570 1
PAD,22X13X0.2 39156D 39156-2591 1
PAD,30X150X8 39156E 39156-2612 2
PAD 39156F 39156-2659 2
COVER TANK,CNT 51026 51026-0020 1
COVER TANK,LH,M.D.BLACK 51026C 51026-5138-17K 1 _________________________________________CA,US
COVER TANK,RH,M.D.BLACK 51026D 51026-5139-17K 1 _________________________________________CA,US
CAP-TANK 51049 51049-0735 1
TANK-COMP-FUEL,M.D.BLACK 51091 51091-5177-17K 1 _________________________________________CA,US
GAUGE,FUEL 52005 52005-0772 1
TRIM 53044 53044-1211 1
TRIM,L=760 53044A 53044-1240 1
MARK,IG. SWITCH 56054 56054-2583 1
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,WELL,5MM 92015A 92015-1757 6
CLAMP,TUBE 92037 92037-010 4 _________________________________________CN,US
DAMPER,6X16X7 92075 92075-1011 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT-SOCKET,5X12 120 120CA0512 4
BOLT-SOCKET,6X75 120A 120CA0675 1
BOLT-FLANGED,6X35 130 130BA0635 2
TUBE-RUBBER,6X9X120 702 702A06120 1 _________________________________________CN,US
TUBE-RUBBER,6X9X700 702A 702A06700 1 _________________________________________CN,US
COLLAR,6.3X9.5X14.1 92152 92152-1847 2
COLLAR,6X10X60.2 92152A 92152-1964 1
BOLT,SOCKET,5X16 92153 92153-1244 2
BOLT,SOCKET,5X20 92154 92154-0210 2
BOLT,SOCKET,5X12 92154A 92154-1421 2
BOLT,SOCKET,5X16 92154B 92154-1701 6
BOLT,FLANGED,5X12 92154C 92154-1856 4
BOLT,SOCKET,6X18 92154D 92154-2438 4
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92161 92161-0365 2
DAMPER,FUEL TANK 92161A 92161-1737 2
DAMPER,6X20X7.5 92161B 92161-1937 2
DAMPER,30X20 92161C 92161-2328 1
DAMPER,30X8 92161D 92161-2329 1
DAMPER 92161E 92161-3790 2
TUBE,DRAIN,6X9X808 92192 92192-1669 1
WASHER,6.5X22X1.6 92200 92200-1087 2
WASHER,5.2X10X0.5 92200A 92200-1730 6
