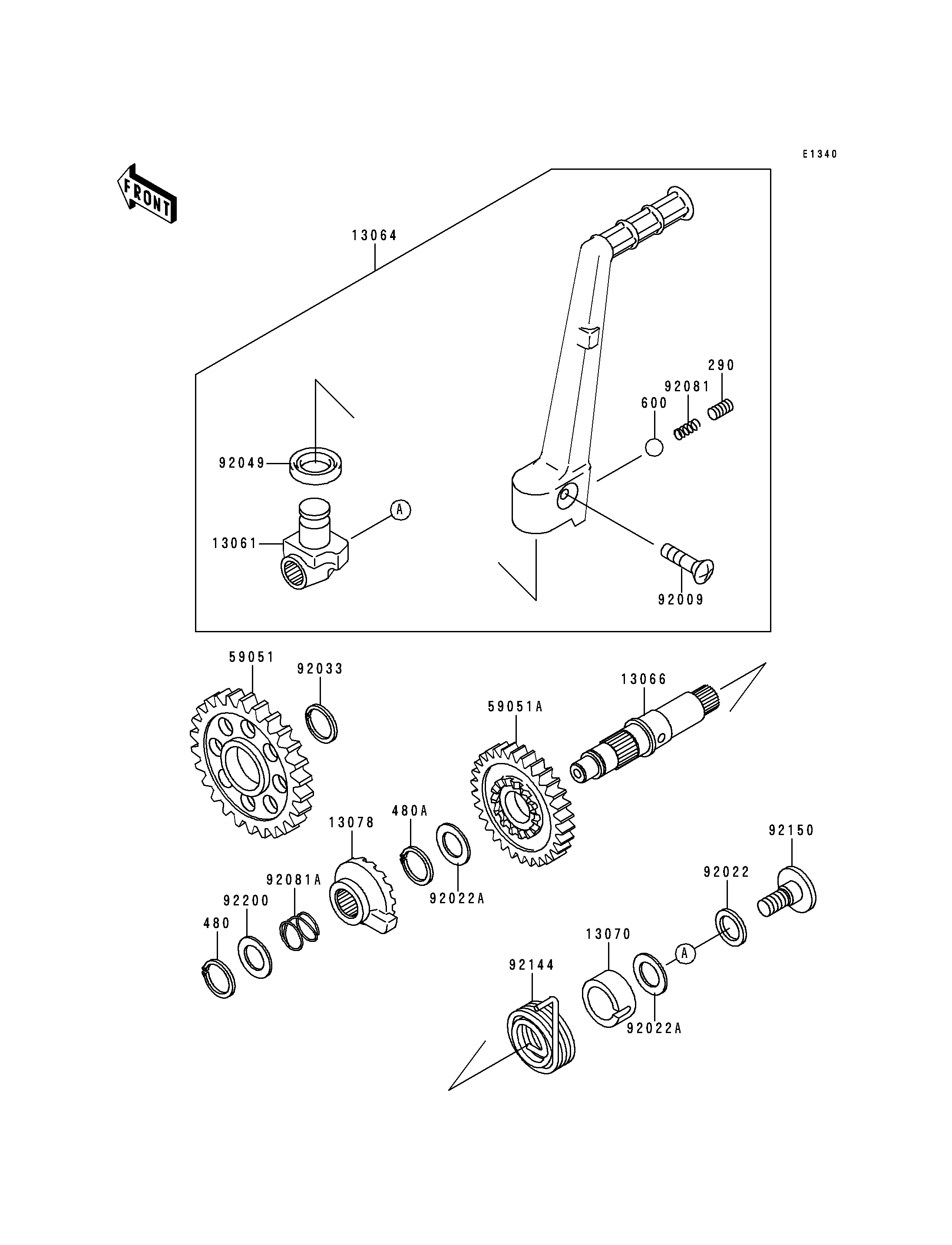

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-SET-SOCKET | 290 | 290P0812 | 1 | ||
CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 1 | ||
CIRCLIP-TYPE-C,18MM | 480A | 480J1800 | 1 | ||
BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
BOSS,KICK PEDAL | 13061 | 13061-1491 | 1 | ||
LEVER-ASSY-KICK,KICK PEDAL | 13064 | 13064-1178 | 1 | ||
SHAFT-KICK | 13066 | 13066-1091 | 1 | ||
GUIDE,KICK SPRING | 13070 | 13070-1063 | 1 | ||
RATCHET | 13078 | 13078-1063 | 1 | ||
GEAR,KICKSTARTER IDLE,26T | 59051 | 59051-1271 | 1 | ||
GEAR-SPUR,KICK STARTER | 59051A | 59051-1339 | 1 | ||
SCREW,6X30 | 92009 | 92009-1590 | 1 | ||
WASHER | 92022 | 92022-1944 | 1 | ||
WASHER,18.3X22X0.5 | 92022A | 92022-271 | 2 | ||
RING-SNAP,18MM | 92033 | 92033-029 | 1 | ||
SEAL-OIL,KICK PEDAL | 92049 | 92049-1387 | 1 | ||
SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
SPRING,KICKSTARTER | 92144 | 92144-1076 | 1 | ||
BOLT,KICK PEDAL | 92150 | 92150-1800 | 1 | ||
WASHER,KICKSHAFT | 92200 | 92200-1209 | 1 |
SCREW-SET-SOCKET | |
REF # | 290 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,16MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,18MM | |
REF # | 480A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALL-STEEL,1/4" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOSS,KICK PEDAL | |
REF # | 13061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-KICK,KICK PEDAL | |
REF # | 13064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-KICK | |
REF # | 13066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,KICK SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RATCHET | |
REF # | 13078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,KICKSTARTER IDLE,26T | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,KICK STARTER | |
REF # | 59051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X30 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,18.3X22X0.5 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,18MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,KICK PEDAL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICK PEDAL | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RATCHET | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICKSTARTER | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,KICK PEDAL | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,KICKSHAFT | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
