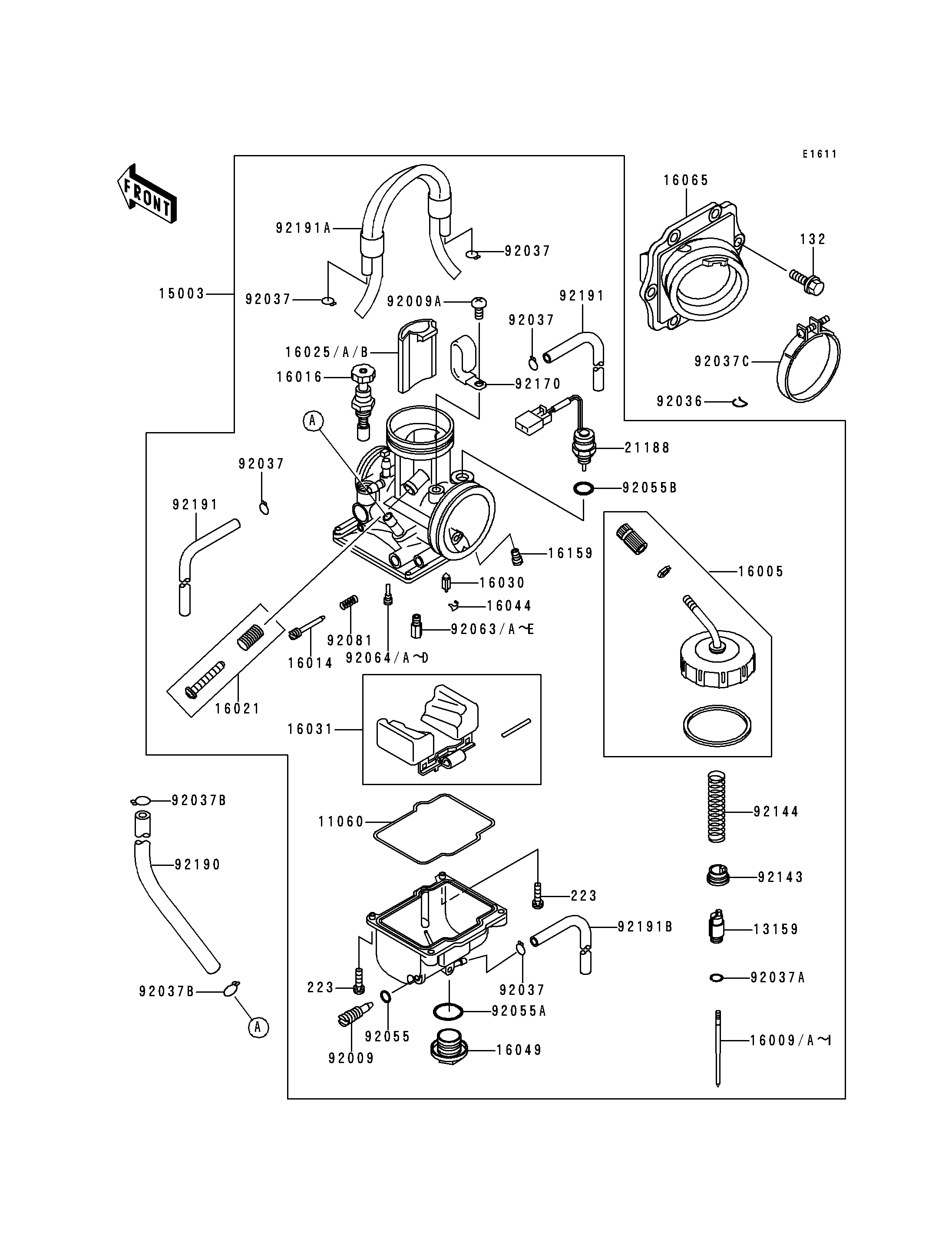

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FLOAT CHAMBER | 11060 | 11060-1254 | 1 | ||
CONNECTOR,THROTTLE CABLE | 13159 | 13159-1063 | 1 | ||
CARBURETOR-ASSY | 15003 | 15003-1342 | 1 | ||
TOP-CHAMBER | 16005 | 16005-1071 | 1 | ||
NEEDLE-JET,N0ZE | 16009 | 16009-1757 | 1 | (OPTION) | |
NEEDLE-JET,N0ZF | 16009A | 16009-1758 | 1 | (OPTION) | |
NEEDLE-JET,N0ZG | 16009B | 16009-1759 | 1 | ||
NEEDLE-JET,N0ZH | 16009C | 16009-1760 | 1 | (OPTION) | |
NEEDLE-JET,N1EE | 16009D | 16009-1762 | 1 | (OPTION) | |
NEEDLE-JET,N1EF | 16009E | 16009-1763 | 1 | (OPTION) | |
NEEDLE-JET,N1EG | 16009F | 16009-1764 | 1 | (OPTION) | |
NEEDLE-JET,N1EH | 16009G | 16009-1765 | 1 | (OPTION) | |
NEEDLE-JET,N0ZI | 16009H | 16009-1972 | 1 | (OPTION) | |
NEEDLE-JET,N1EI | 16009I | 16009-1975 | 1 | (OPTION) | |
SCREW-PILOT AIR | 16014 | 16014-1058 | 1 | ||
PLUNGER | 16016 | 16016-1085 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1198 | 1 | ||
VALVE-THROTTLE,CA7 | 16025 | 16025-1194 | 1 | ||
VALVE-THROTTLE,CA8 | 16025A | 16025-1197 | 1 | (OPTION) | |
VALVE-THROTTLE,CA6 | 16025B | 16025-1210 | 1 | (OPTION) | |
VALVE-FLOAT | 16030 | 16030-1057 | 1 | ||
FLOAT | 16031 | 16031-1084 | 1 | ||
CLAMP,FLOAT VALVE | 16044 | 16044-007 | 1 | ||
COVER-MAIN JET | 16049 | 16049-1051 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1334 | 1 | ||
JET-POWER,#55 | 16159 | 16159-1054 | 1 | ||
SOLENOID | 21188 | 21188-1005 | 1 | ||
SCREW,DRAIN,M6X1.0 | 92009 | 92009-1057 | 1 | ||
SCREW,CLAMP | 92009A | 92009-1833 | 1 | ||
RING-SNAP | 92036 | 92036-018 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0620 | 6 | ||
SCREW-PAN-WS-CROS | 223 | 223C0416 | 4 | ||
CLAMP,TUBE | 92037 | 92037-1396 | 5 | ||
CLAMP,JET NEEDLE | 92037A | 92037-1401 | 1 | ||
CLAMP,TUBE | 92037B | 92037-147 | 2 | ||
CLAMP | 92037C | 92037-1523 | 1 | ||
RING-O,DRAIN SCREW | 92055 | 92055-1053 | 1 | ||
RING-O,MAIN JET COVER | 92055A | 92055-1167 | 1 | ||
RING-O | 92055B | 92055-1580 | 1 | ||
JET-MAIN,#152 | 92063 | 92063-1365 | 1 | (OPTION) | |
JET-MAIN,#155 | 92063A | 92063-1366 | 1 | (OPTION) | |
JET-MAIN,#158 | 92063B | 92063-1367 | 1 | ||
JET-MAIN,#160 | 92063C | 92063-1368 | 1 | (OPTION) | |
JET-MAIN,#162 | 92063D | 92063-1369 | 1 | (OPTION) | |
JET-MAIN,#168 | 92063E | 92063-1371 | 1 | (OPTION) | |
JET-PILOT,#40 | 92064 | 92064-1140 | 1 | (OPTION) | |
JET-PILOT,#42 | 92064A | 92064-1141 | 1 | (OPTION) | |
JET-PILOT,#45 | 92064B | 92064-1142 | 1 | ||
JET-PILOT,#48 | 92064C | 92064-1143 | 1 | (OPTION) | |
JET-PILOT,#50 | 92064D | 92064-1144 | 1 | (OPTION) | |
SPRING,ADJUST SCREW | 92081 | 92081-1555 | 1 | ||
COLLAR,THROTTLE VALVE | 92143 | 92143-1201 | 1 | ||
SPRING,THROTTLE VALVE | 92144 | 92144-1305 | 1 | ||
CLAMP | 92170 | 92170-1873 | 1 | ||
TUBE,5.3X10.5X150 | 92190 | 92190-1528 | 1 | ||
TUBE,4X7X480 | 92191 | 92191-1254 | 2 | ||
TUBE,AIR VENT | 92191A | 92191-1255 | 1 | ||
TUBE,3.5X6.5X330 | 92191B | 92191-1256 | 1 |
