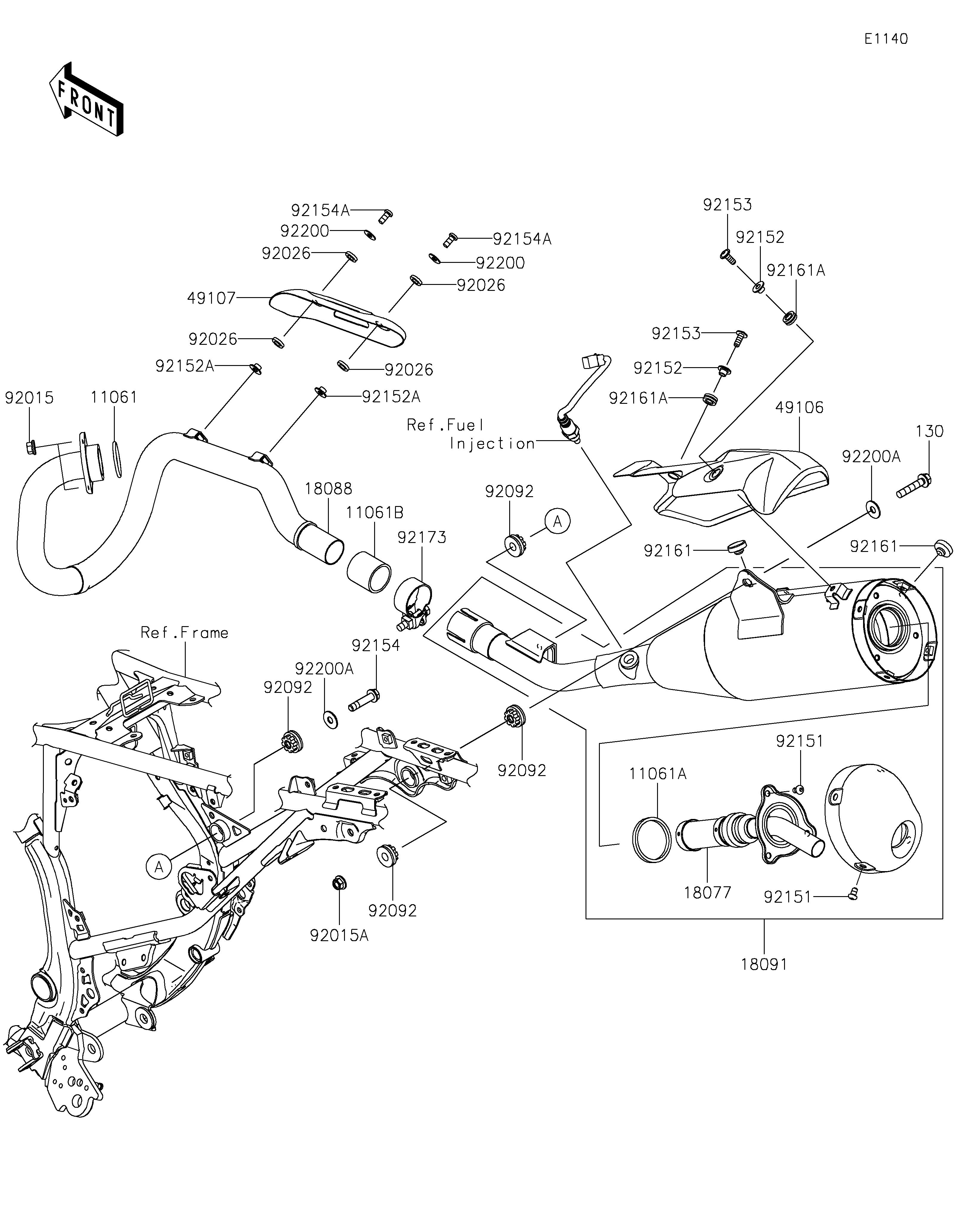

Parts Diagrams |
11061
11061A
11061B
130
18077
18088
18091
49106
49107
92015
92015A
92026
92026
92026
92026
92092
92092
92092
92092
92151
92151
92152
92152
92152A
92152A
92153
92153
92154
92154A
92154A
92161
92161
92161A
92161A
92173
92200
92200
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EX PIPE | 11061 | 11061-0027 | 1 | ||
GASKET,J/P-SILENCER | 11061A | 11061-0174 | 1 | ||
GASKET,EXHAUST PIPE CONNECTING | 11061B | 11061-1055 | 1 | ||
BOLT-FLANGED,8X40 | 130 | 130CA0840 | 1 | ||
ARRESTER-SPARK | 18077 | 18077-0046 | 1 | ||
PIPE-EXHAUST | 18088 | 18088-1453 | 1 | ||
BODY-COMP-MUFFLER | 18091 | 18091-1176 | 1 | ||
COVER-MUFFLER | 49106 | 49106-0840 | 1 | ||
COVER-EXHAUST PIPE | 49107 | 49107-0813 | 1 | ||
NUT,8MM | 92015 | 92015-1143 | 2 | ||
NUT,8MM | 92015A | 92015-1432 | 1 | ||
SPACER,8.7X15.2X3 | 92026 | 92026-0868 | 4 | ||
BUSHING-RUBBER | 92092 | 92092-0018 | 4 | ||
BOLT,SOCKET,6X10 | 92151 | 92151-1449 | 7 | ||
COLLAR,6.3X8.3X7.2 | 92152 | 92152-1602 | 2 | ||
COLLAR,6.3X8.3X6.2 | 92152A | 92152-2586 | 2 | ||
BOLT,SOCKET,6X16 | 92153 | 92153-0817 | 2 | ||
BOLT,FLANGED,8X36 | 92154 | 92154-1301 | 1 | ||
BOLT,6X14 | 92154A | 92154-3955 | 2 | ||
DAMPER,MUFFLER | 92161 | 92161-1284 | 2 | ||
DAMPER | 92161A | 92161-1475 | 2 | ||
CLAMP | 92173 | 92173-2189 | 1 | ||
WASHER,6.5X16X1 | 92200 | 92200-1974 | 2 | ||
WASHER,8.5X22X1.5 | 92200A | 92200-1975 | 2 |
