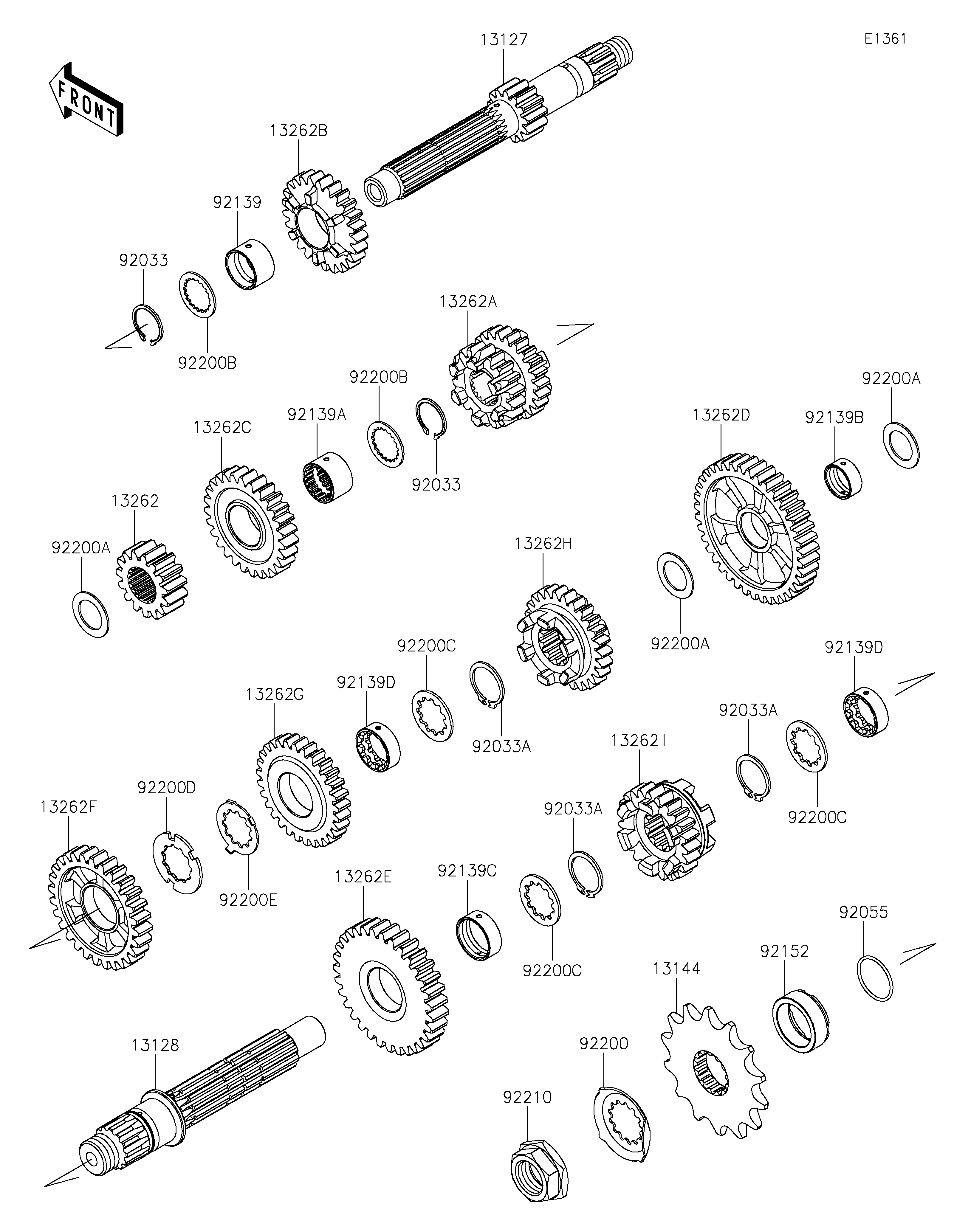

2021 KLX®230 ABS - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
13262I
92033
92033
92033A
92033A
92033A
92055
92139
92139A
92139B
92139C
92139D
92139D
92152
92200
92200A
92200A
92200A
92200B
92200B
92200C
92200C
92200C
92200D
92200E
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT 13127 13127-0698 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0712 1
SPROCKET-OUTPUT,14T 13144 13144-0586 1
GEAR,INPUT 2ND,15T 13262 13262-1368 1
GEAR,INPUT 3RD&4TH,18T&23T 13262A 13262-1369 1
GEAR,INPUT 5TH,25T 13262B 13262-1370 1
GEAR,INPUT 6TH,27T 13262C 13262-1371 1
GEAR,OUTPUT LOW,39T 13262D 13262-1372 1
GEAR,OUTPUT 2ND,31T 13262E 13262-1373 1
GEAR,OUTPUT 3RD,28T 13262F 13262-1374 1
GEAR,OUTPUT 4TH,29T 13262G 13262-1375 1
GEAR,OUTPUT 5TH,26T 13262H 13262-1376 1
GEAR,OUTPUT 6TH,23T 13262I 13262-1377 1
RING-SNAP 92033 92033-0798 2
RING-SNAP 92033A 92033-0799 3
RING-O,21.5X1.5 92055 92055-0196 1
BUSHING,20X23X14 92139 92139-0917 1
BUSHING,17.9X23X14.5 92139A 92139-0918 1
BUSHING,17X20X8.5 92139B 92139-0919 1
BUSHING,22X25X8.5 92139C 92139-0920 1
BUSHING,18.7X25X8.6 92139D 92139-0921 2
COLLAR 92152 92152-1350 1
WASHER 92200 92200-1720 1
WASHER,17.2X26X1 92200A 92200-2223 3
WASHER,20X26X1.2 92200B 92200-2224 2
WASHER,22.3X29X1.5 92200C 92200-2226 3
WASHER 92200D 92200-2227 1
WASHER 92200E 92200-2228 1
NUT,20MM 92210 92210-0850 1
