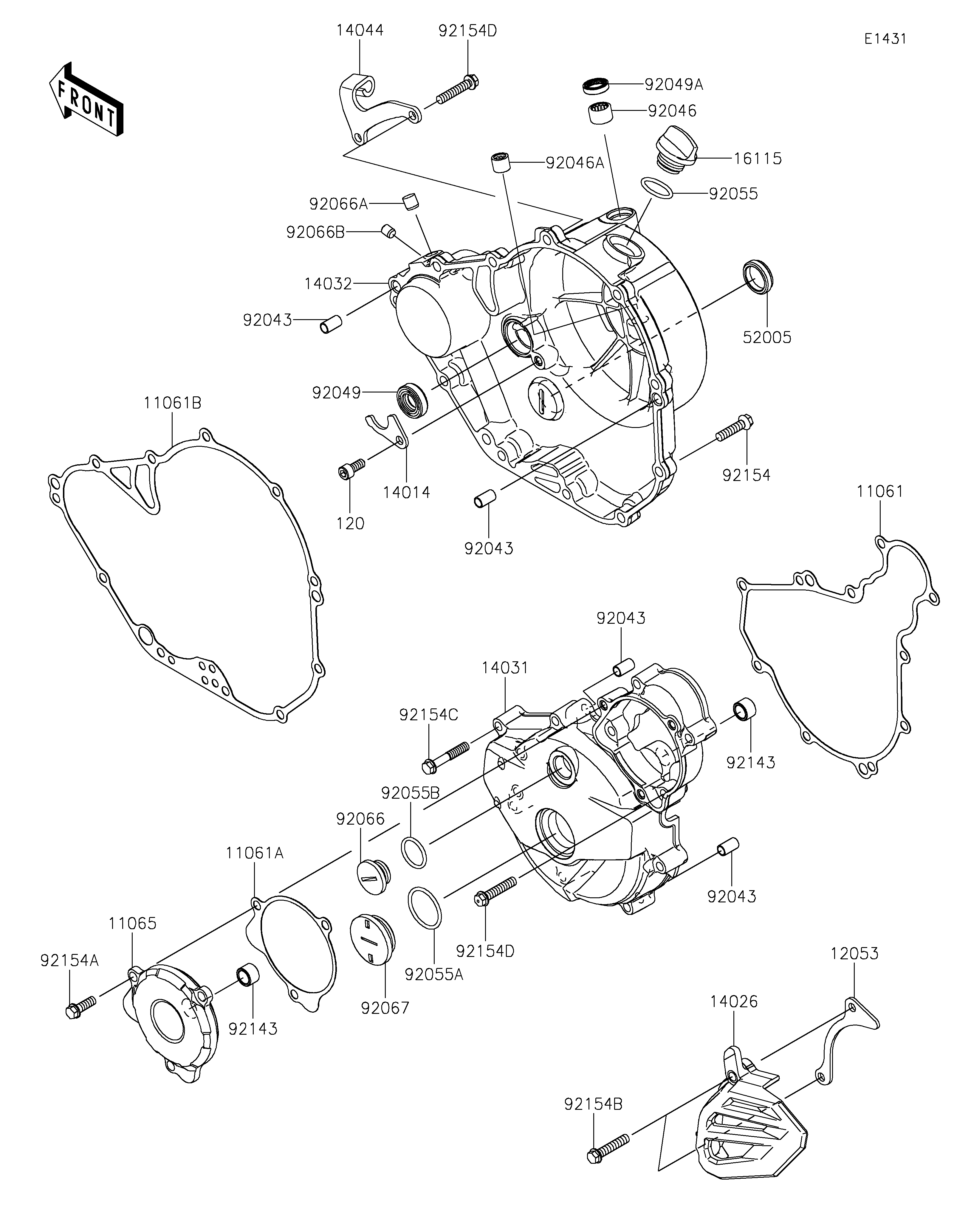

2021 KLX®230 ABS - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
11065
120
12053
14014
14026
14031
14032
14044
16115
52005
92043
92043
92043
92043
92046
92046A
92049
92049A
92055
92055A
92055B
92066
92066A
92066B
92067
92143
92143
92154
92154A
92154B
92154C
92154D
92154D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVER 11061 11061-1299 1
GASKET,GENERATOR COVER CAP 11061A 11061-1300 1
GASKET,CLUTCH COVER 11061B 11061-1301 1
CAP,GENERATOR COVER 11065 11065-1300 1
BOLT-SOCKET,6X14 120 120CA0614 1
GUIDE-CHAIN 12053 12053-0272 1
PLATE-POSITION 14014 14014-0567 1
COVER-CHAIN 14026 14026-0146 1
COVER-GENERATOR 14031 14031-0644 1
COVER-CLUTCH 14032 14032-0657 1
HOLDER-CABLE 14044 14044-0573 1
CAP-OIL FILLER 16115 16115-1053 1
GAUGE,OIL LEVEL 52005 52005-1009 1
PIN,6.2X8X14 92043 92043-1741 4
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
BEARING-NEEDLE 92046A 92046-0042 1
SEAL-OIL 92049 92049-1191 1
SEAL-OIL,AG0353-F0 92049A 92049-1262 1
RING-O,19.8MM 92055 92055-0844 1
RING-O,27.7X2.4 92055A 92055-091 1
RING-O,20X2 92055B 92055-1146 1
PLUG,COVER 92066 92066-0011 1
PLUG 92066A 92066-0796 1
PLUG,OIL LINE,7.2X8 92066B 92066-1012 1
PLUG,30X8 92067 92067-024 1
COLLAR 92143 92143-1263 2
BOLT,FLANGED,6X25 92154 92154-0520 9
BOLT,FLANGED,6X18 92154A 92154-1775 3
BOLT,FLANGED,6X30 92154B 92154-1830 2
BOLT,FLANGED,6X35 92154C 92154-2100 8
BOLT,FLANGED,6X30 92154D 92154-4061 4
