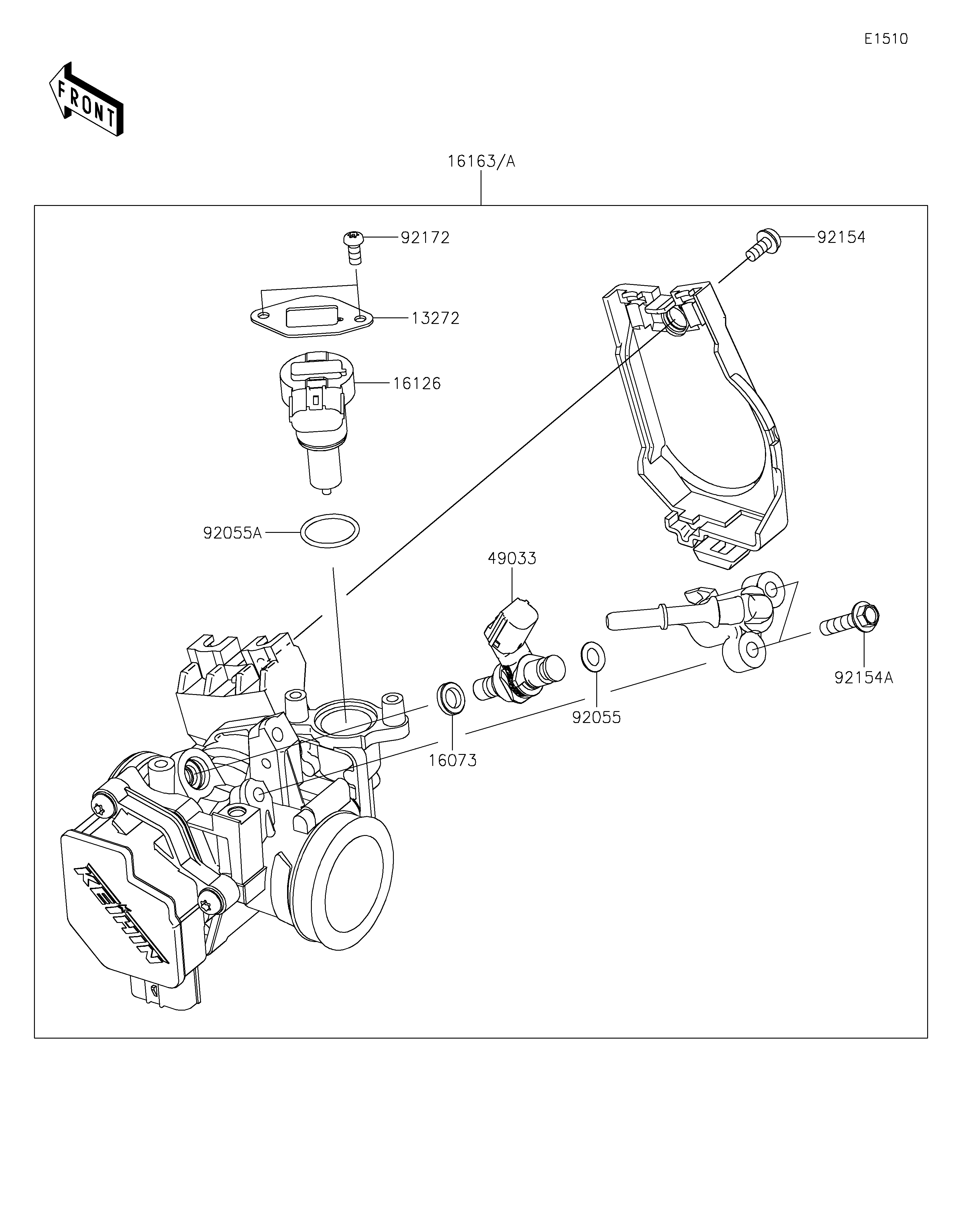

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-1862 1
INSULATOR 16073 16073-0821 1
VALVE,ISC 16126 16126-0729 1
THROTTLE-ASSY 16163 16163-0951 1 CA
THROTTLE-ASSY 16163A 16163-0990 1 US
NOZZLE-INJECTION 49033 49033-0031 1
RING-O,6.3X2.2 92055 92055-0821 1
RING-O 92055A 92055-0826 1
BOLT 92154 92154-0133 1
BOLT,FLANGED,5X20 92154A 92154-1559 2
SCREW,TORX 92172 92172-0903 2
