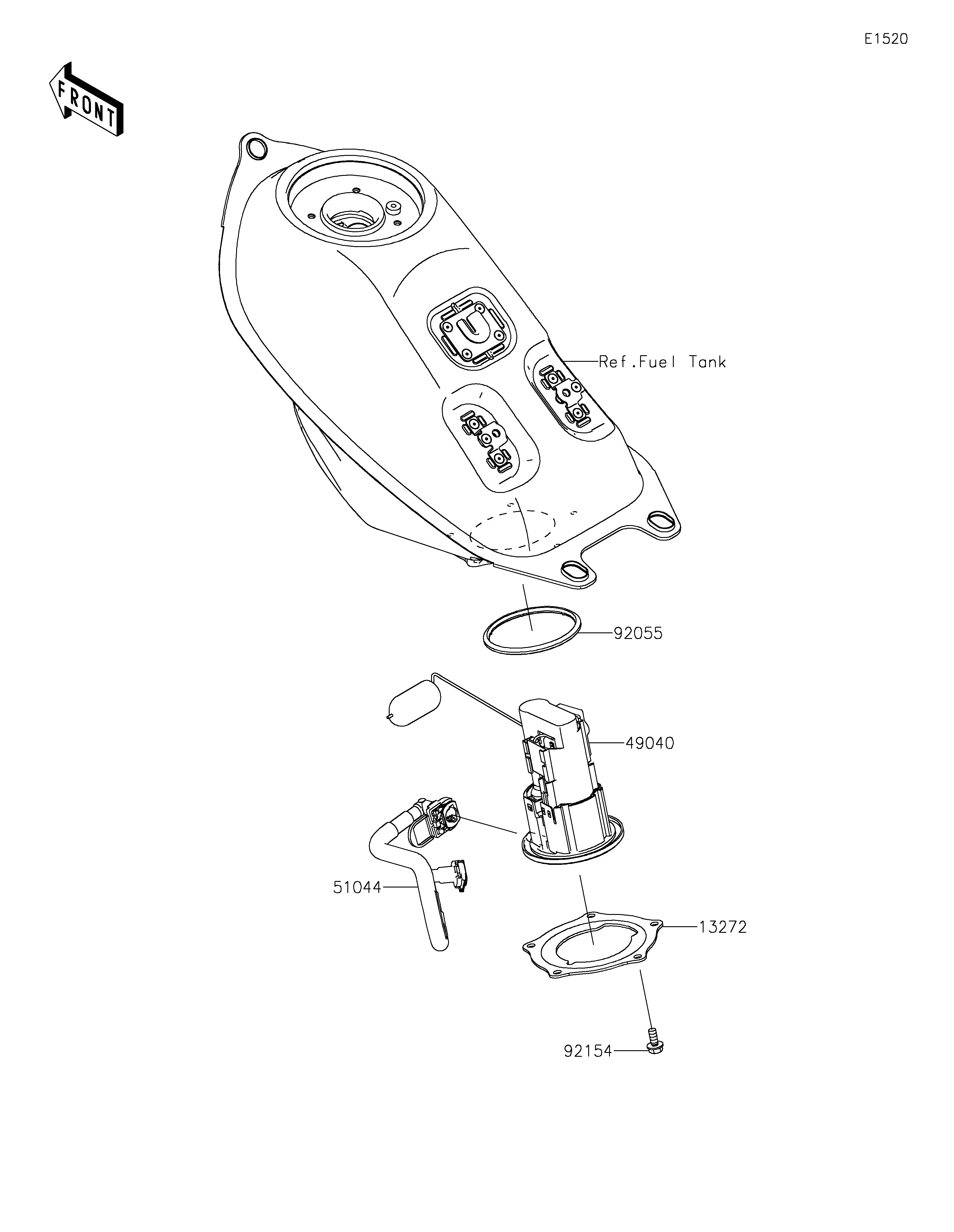

13272
49040
51044
92055
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,FUEL PUMP 13272 13272-2614 1
PUMP-FUEL 49040 49040-0783 1
TUBE-ASSY,FUEL 51044 51044-0903 1
RING-O,FUEL PUMP 92055 92055-0920 1
BOLT,FLANGED,6X14 92154 92154-3963 5
