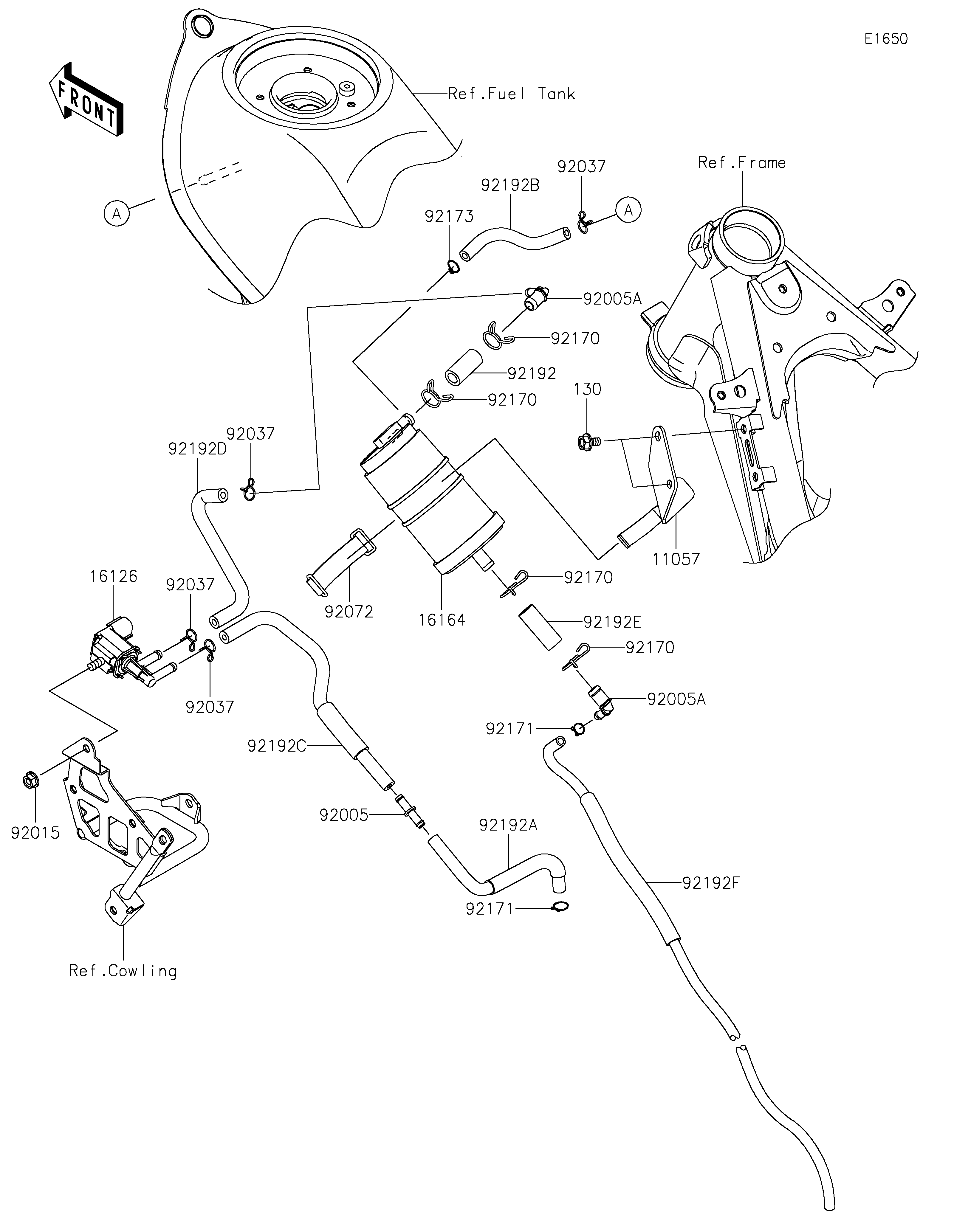

2021 KLX®230 ABS - Fuel Evaporative System(CA)
11057
130
16126
16164
92005
92005A
92005A
92015
92037
92037
92037
92037
92072
92170
92170
92170
92170
92171
92171
92173
92192
92192A
92192B
92192C
92192D
92192E
92192F
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11057 | 11057-2428 | 1 | CA | |
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 2 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0704 | 1 | CA | |
| FITTING | 92005 | 92005-0721 | 1 | CA | |
| FITTING | 92005A | 92005-0753 | 2 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP | 92037 | 92037-1712 | 4 | CA | |
| BAND,L=50 | 92072 | 92072-1419 | 1 | CA | |
| CLAMP | 92170 | 92170-1695 | 4 | CA | |
| CLAMP | 92171 | 92171-0573 | 2 | CA | |
| CLAMP | 92173 | 92173-1190 | 1 | CA | |
| TUBE,9X14.4X30 | 92192 | 92192-1757 | 1 | CA | |
| TUBE,PCV-THB | 92192A | 92192-1939 | 1 | CA | |
| TUBE,FUEL TANK-CANISTER | 92192B | 92192-1973 | 1 | CA | |
| TUBE,PCV-THROTTLE BODY | 92192C | 92192-1974 | 1 | CA | |
| TUBE,FITTING-PCV | 92192D | 92192-1975 | 1 | CA | |
| TUBE,DRAIN,9X14X36 | 92192E | 92192-1982 | 1 | CA | |
| TUBE,DRAIN | 92192F | 92192-2310 | 1 | CA |
| BRACKET,CANISTER | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| VALVE,SOLENOID | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,9X14.4X30 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,PCV-THB | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,FUEL TANK-CANISTER | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,PCV-THROTTLE BODY | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,FITTING-PCV | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,DRAIN,9X14X36 | |
| REF # | 92192E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,DRAIN | |
| REF # | 92192F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
