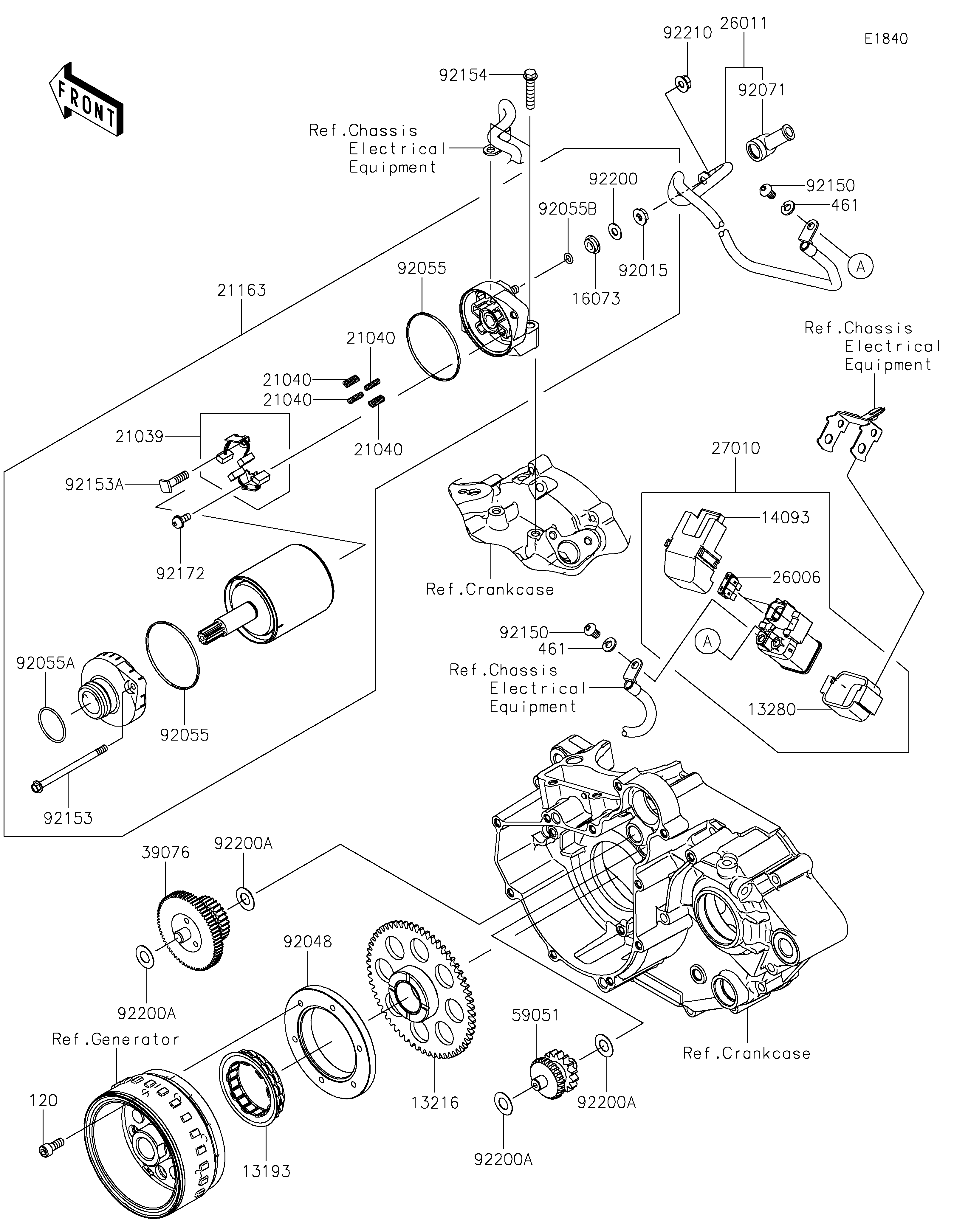

2021 KLX®230 ABS - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
13193
13216
13280
14093
16073
21039
21040
21040
21040
21040
21163
26006
26011
27010
39076
461
461
59051
92015
92048
92055
92055
92055A
92055B
92071
92150
92150
92153
92153A
92154
92172
92200
92200A
92200A
92200A
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120CA0616 6
CLUTCH-ASSY-ONEWAY 13193 13193-0007 1
GEAR-COMP,ONEWAY CLUTCH 13216 13216-0900 1
HOLDER 13280 13280-0710 1
COVER 14093 14093-0199 1
INSULATOR 16073 16073-0053 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
STARTER-ELECTRIC 21163 21163-0783 1
FUSE,BLADE,30A,GREEN 26006 26006-1006 2
WIRE-LEAD 26011 26011-0890 1
SWITCH 27010 27010-0754 1
LIMITER,STARTER IDLE GEAR 39076 39076-0020 1
WASHER-SPRING,6MM 461 461DB0600 2
GEAR-SPUR,IDLER 59051 59051-0824 1
NUT,STARTER MOTOR 92015 92015-1476 1
RACE,ONEWAY CLUTCH 92048 92048-0030 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
GROMMET 92071 92071-0024 1
BOLT,6X10 92150 92150-1577 2
BOLT 92153 92153-1850 2
BOLT 92153A 92153-1866 1
BOLT,FLANGED,6X30 92154 92154-1773 2
SCREW 92172 92172-0334 1
WASHER 92200 92200-0386 1
WASHER,10.2X20X0.5 92200A 92200-1976 4
NUT,6MM 92210 92210-0188 1
