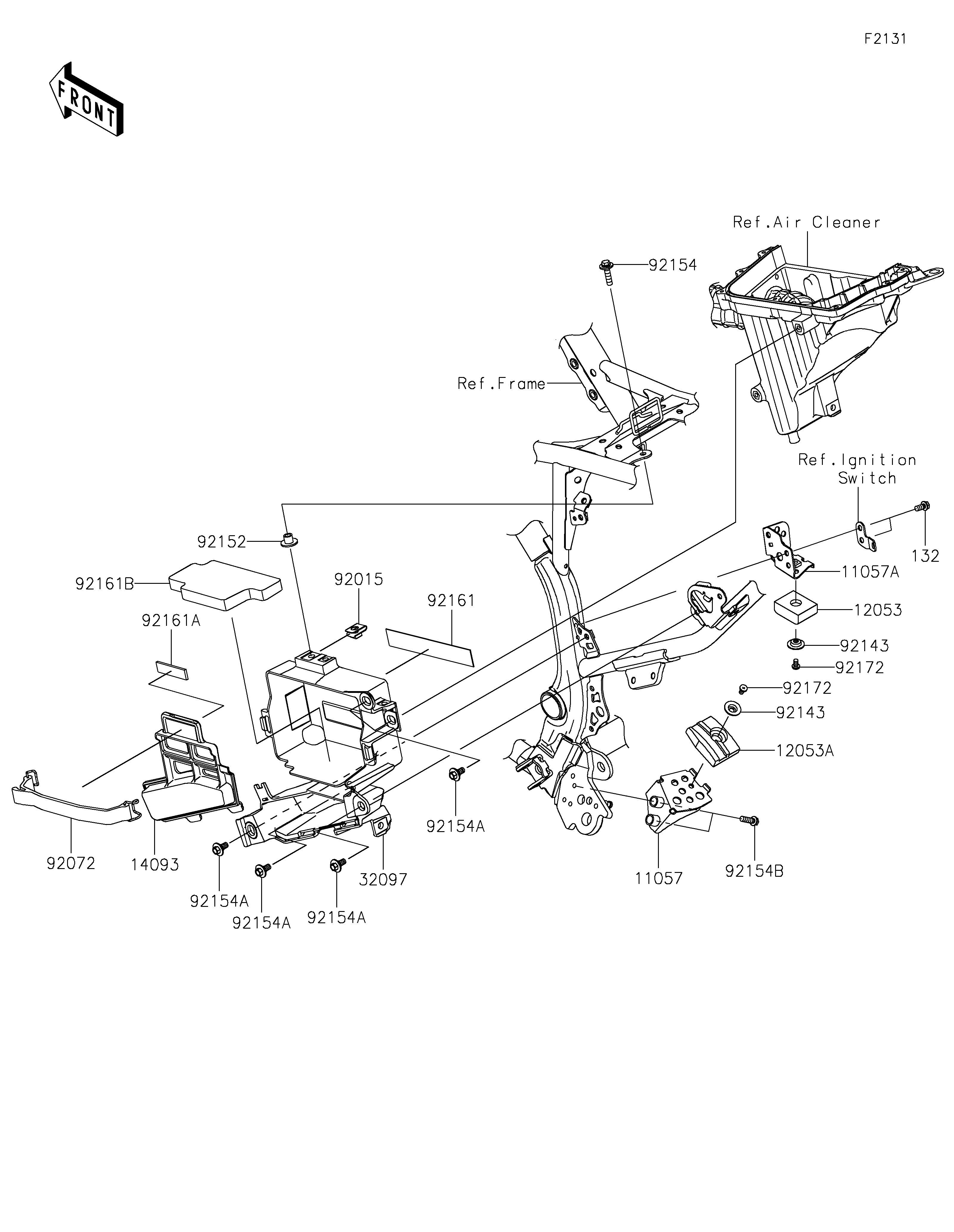

2021 KLX®230 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
12053
12053A
132
14093
32097
92015
92072
92143
92143
92152
92154
92154A
92154A
92154A
92154A
92154B
92161
92161A
92161B
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR 11057 11057-2065 1
BRACKET,UPP 11057A 11057-2067 1
GUIDE-CHAIN,UPP 12053 12053-0270 1
GUIDE-CHAIN,LWR 12053A 12053-0271 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
COVER,BATTERY CASE 14093 14093-0861 1
CASE-BATTERY 32097 32097-0048 1
NUT,6MM 92015 92015-1602 1
BAND,BATTERY 92072 92072-0838 1
COLLAR 92143 92143-1676 2
COLLAR,6.5X10X10.4 92152 92152-1688 1
BOLT,6X25 92154 92154-0467 1
BOLT,FLANGED,6X9 92154A 92154-0546 5
BOLT,FLANGED,6X20 92154B 92154-2757 2
DAMPER,146X22X1 92161 92161-2210 1
DAMPER,49X13X3 92161A 92161-2211 1
DAMPER,BATTERY 92161B 92161-2221 1
SCREW,5X8 92172 92172-0119 2
