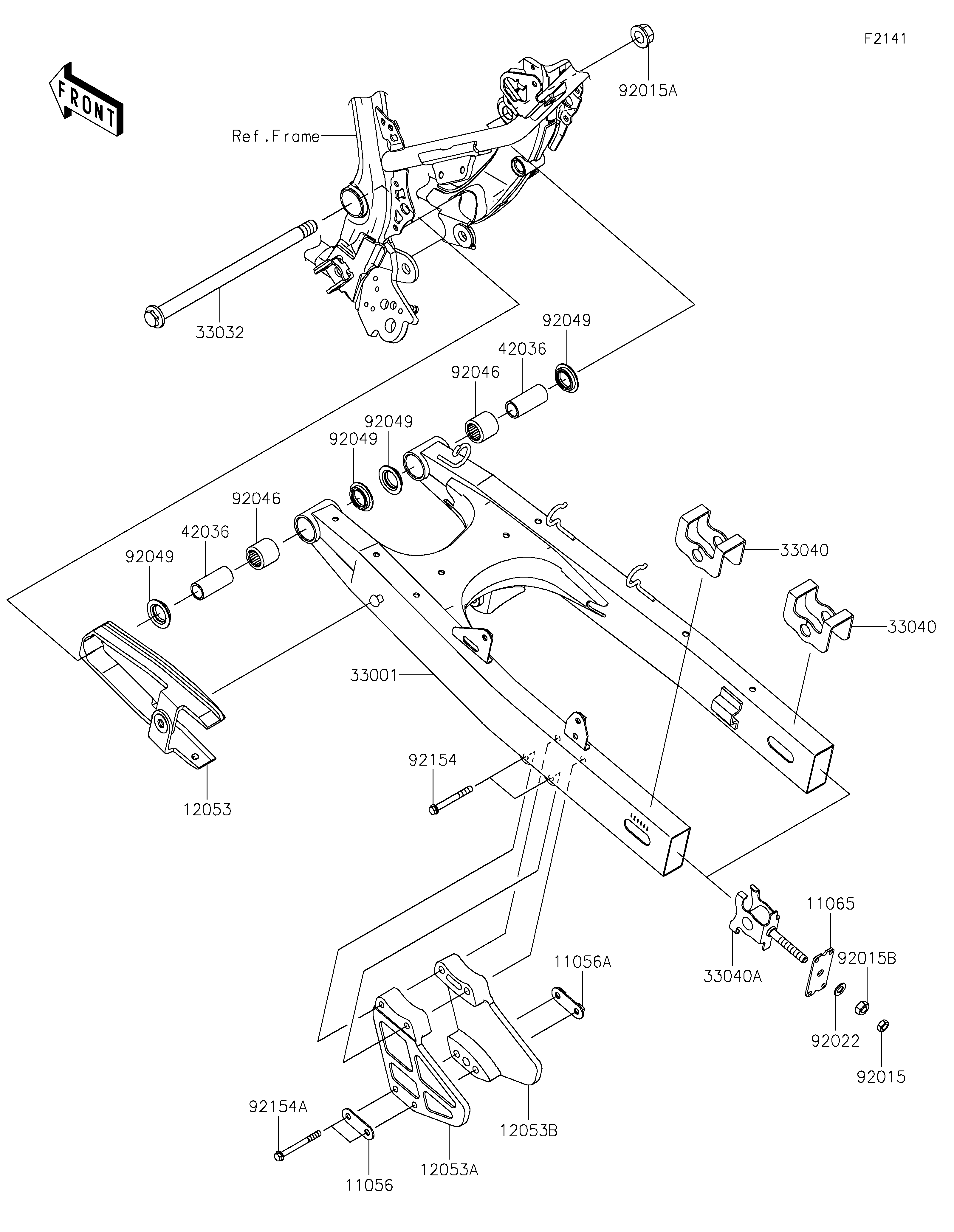

2021 KLX®230 ABS - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11065
12053
12053A
12053B
33001
33032
33040
33040
33040A
42036
42036
92015
92015A
92015B
92022
92046
92046
92049
92049
92049
92049
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2395 1
BRACKET,WITH NUT 11056A 11056-2396 1
CAP 11065 11065-1309 2
GUIDE-CHAIN,FR 12053 12053-0286 1
GUIDE-CHAIN,RR,OUTSIDE 12053A 12053-0287 1
GUIDE-CHAIN,RR,INSIDE 12053B 12053-0288 1
ARM-COMP-SWING,P.SILVER 33001 33001-0712-458 1
SHAFT-SWING ARM,14X243 33032 33032-0061 1
ADJUSTER-CHAIN,OUTSIDE 33040 33040-0092 2
ADJUSTER-CHAIN,INSIDE 33040A 33040-0093 2
SLEEVE,15X20X46 42036 42036-0831 2
NUT,8MM 92015 92015-1364 2
NUT,14MM 92015A 92015-1407 1
NUT,8MM 92015B 92015-1658 2
WASHER,8.5X16X1.2 92022 92022-1582 2
BEARING-NEEDLE,BM202726 92046 92046-1110 2
SEAL-OIL,ARM 92049 92049-1109 4
BOLT,FLANGED,6X55 92154 92154-1190 2
BOLT,FLANGED,6X60 92154A 92154-2762 2
