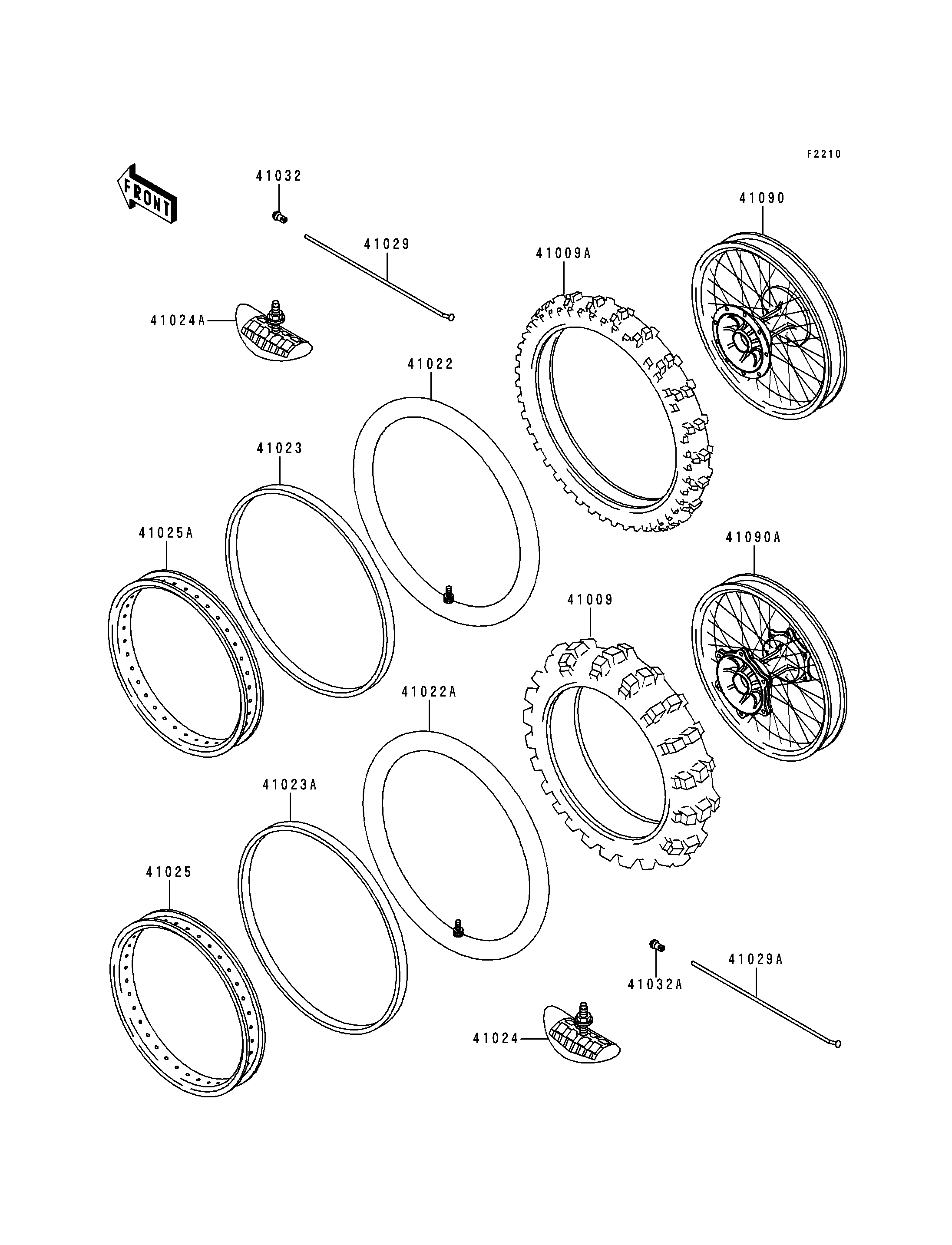

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,RR,110/90-19 62M,M78(BS) 41009 41009-1128 1
TIRE,FR,80/100-21 51M,M77(BS) 41009A 41009-1171 1
TUBE-TIRE,MC90/90-21(BS) 41022 41022-1107 1
TUBE-TIRE,110/90-19(BS) 41022A 41022-1140 1
BAND-RIM,X-21(BS) 41023 41023-1009 1
BAND-RIM,110/90-19(BS) 41023A 41023-1081 1
STOPPER-RIM,2.15-M(DUNLOP) 41024 41024-009 1
STOPPER-RIM,1.60-M(DUNLOP) 41024A 41024-010 1
RIM,RR,2.15X19 41025 41025-1239 1
RIM,FR,1.60X21 41025A 41025-1241 1
SPOKE-INNER,FR,230MMX165D 41029 41029-1197 36
SPOKE-INNER,RR,202MMX160D 41029A 41029-1204 36
NIPPLE-SPOKE 41032 41032-1061 36
NIPPLE-SPOKE 41032A 41032-1064 36
WHEEL-SUB ASSY,FR 41090 41090-1099 1 (OPTION)
WHEEL-SUB ASSY,RR 41090A 41090-1107 1 (OPTION)
