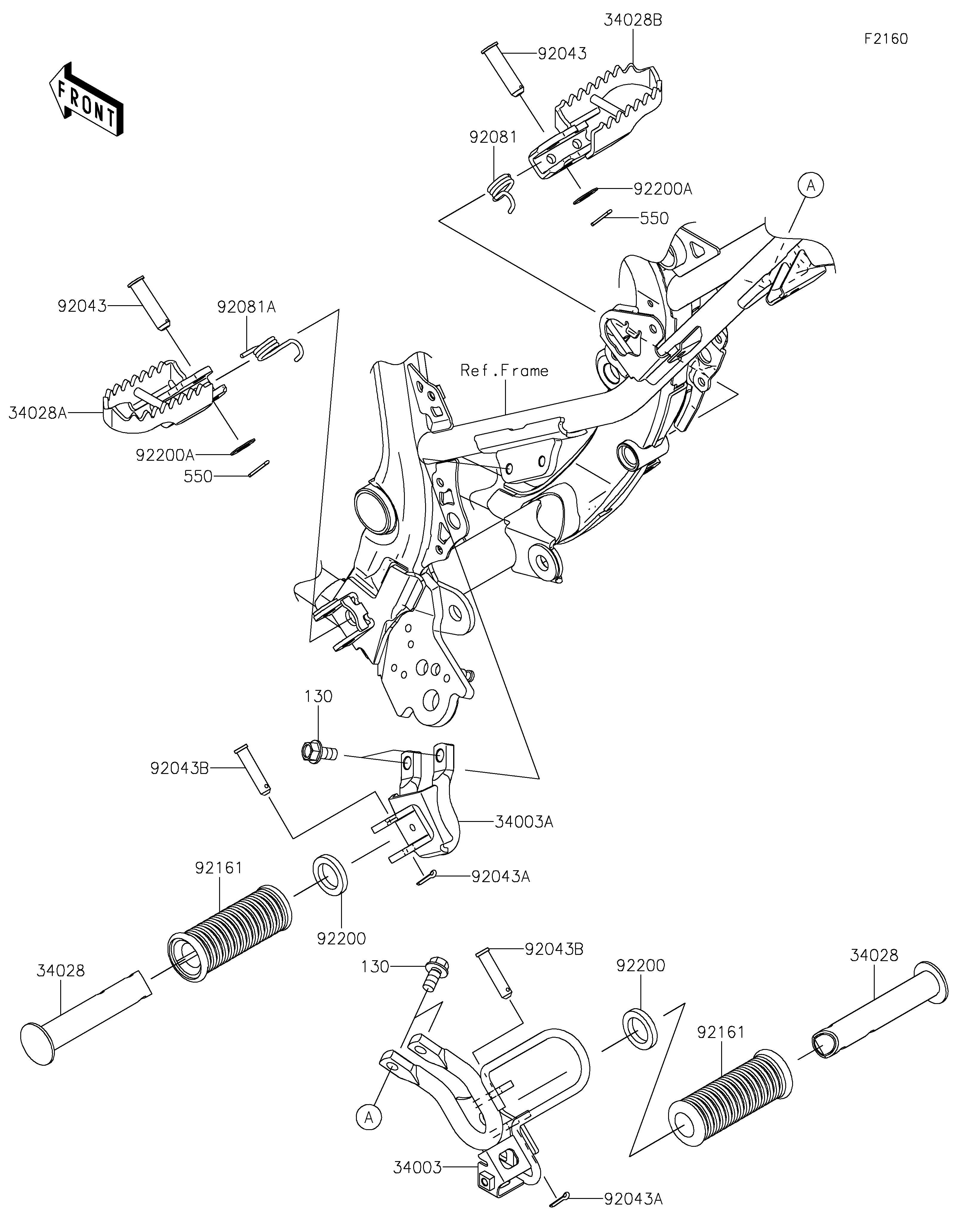

2021 KLX®230 ABS - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
130
34003
34003A
34028
34028
34028A
34028B
550
550
92043
92043
92043A
92043A
92043B
92043B
92081
92081A
92161
92161
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130CA0816 4
HOLDER-STEP,RH,P.SILVER 34003 34003-0182-458 1
HOLDER-STEP,LH,P.SILVER 34003A 34003-0183-458 1
STEP,RR 34028 34028-0007 2
STEP,LH 34028A 34028-0369 1
STEP,RH 34028B 34028-0371 1
PIN-COTTER,2.0X18 550 550AA2018 2
PIN,10X35 92043 92043-0744 2
PIN,COTTER,2.5X18 92043A 92043-0771 2
PIN 92043B 92043-1714 2
SPRING,STEP,RH 92081 92081-1606 1
SPRING,STEP,LH 92081A 92081-1607 1
DAMPER,REAR STEP 92161 92161-0866 2
WASHER,20X30X4.5 92200 92200-0869 2
WASHER,10.5X20X1.0 92200A 92200-0870 2
