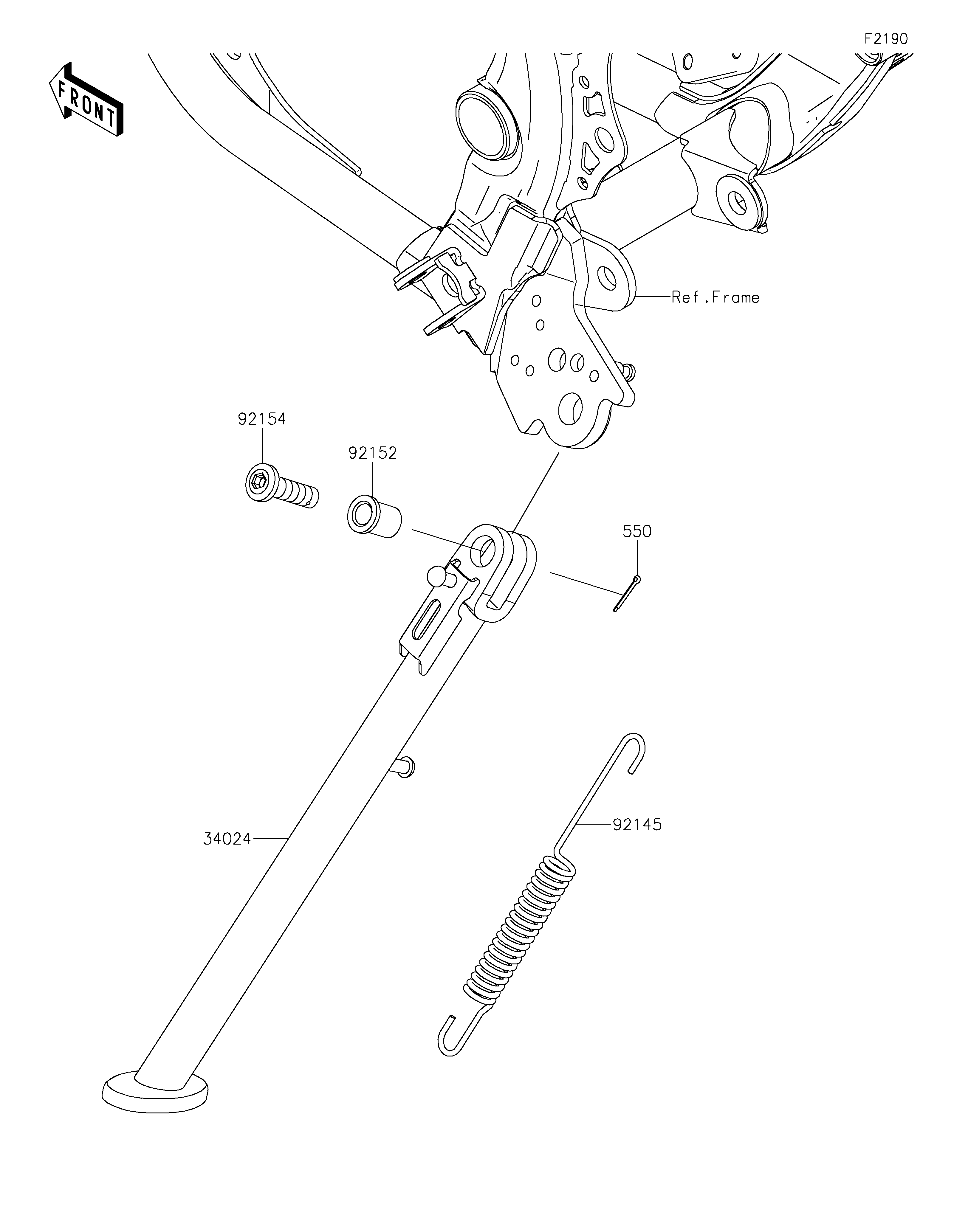

34024
550
92145
92152
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE,P.SILVER 34024 34024-0157-458 1
PIN-COTTER,2.0X15 550 550AA2015 1
SPRING,SIDE STAND 92145 92145-1910 1
COLLAR 92152 92152-2561 1
BOLT,SIDE STAND 92154 92154-3895 1
