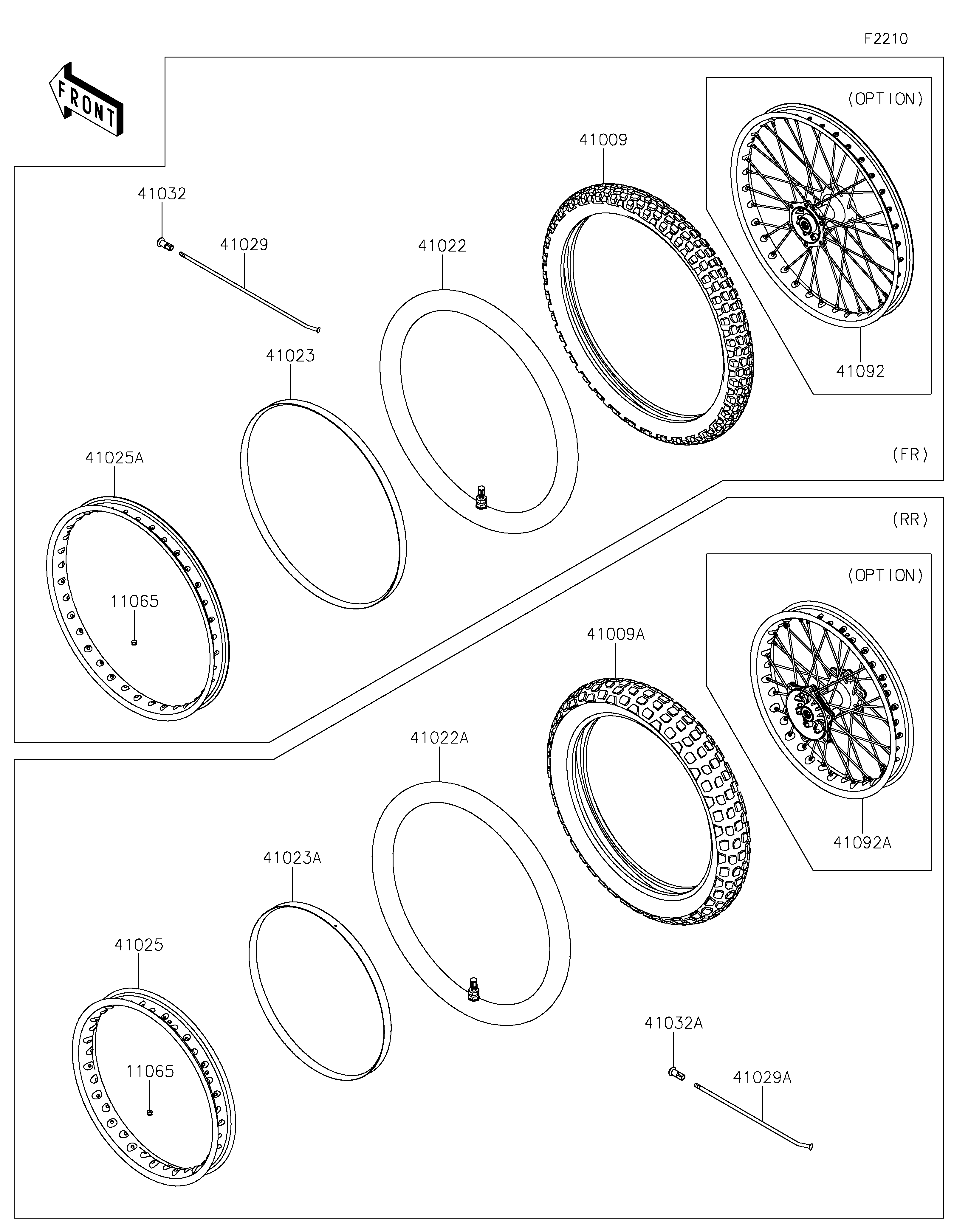

2021 KLX®230 ABS - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
41009
41009A
41022
41022A
41023
41023A
41025
41025A
41029
41029A
41032
41032A
41092
41092A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,BEAD STOPPER 11065 11065-0384 2
TIRE,FR,2.75-21 45P,GP-21F 41009 41009-0559 1
TIRE,RR,4.10-18 59P,GP-22R 41009A 41009-0560 1
TUBE-TIRE 41022 41022-0112 1
TUBE-TIRE 41022A 41022-0113 1
BAND-RIM,2.75-21 41023 41023-0028 1
BAND-RIM,4.10-18 41023A 41023-0029 1
RIM,RR,18X1.85,SILVER 41025 41025-0399-WA 1
RIM,FR,21X1.60,SILVER 41025A 41025-0400-WA 1
SPOKE-INNER,225.5MMX162D 41029 41029-0105 36
SPOKE-INNER,186.5MMX162D 41029A 41029-0106 36
NIPPLE-SPOKE 41032 41032-0010 36
NIPPLE-SPOKE 41032A 41032-0013 36
WHEEL-SUB ASSY,FR,SILVER 41092 41092-0041-WA 1 (OPTION)
WHEEL-SUB ASSY,RR,SILVER 41092A 41092-0042-WA 1 (OPTION)
