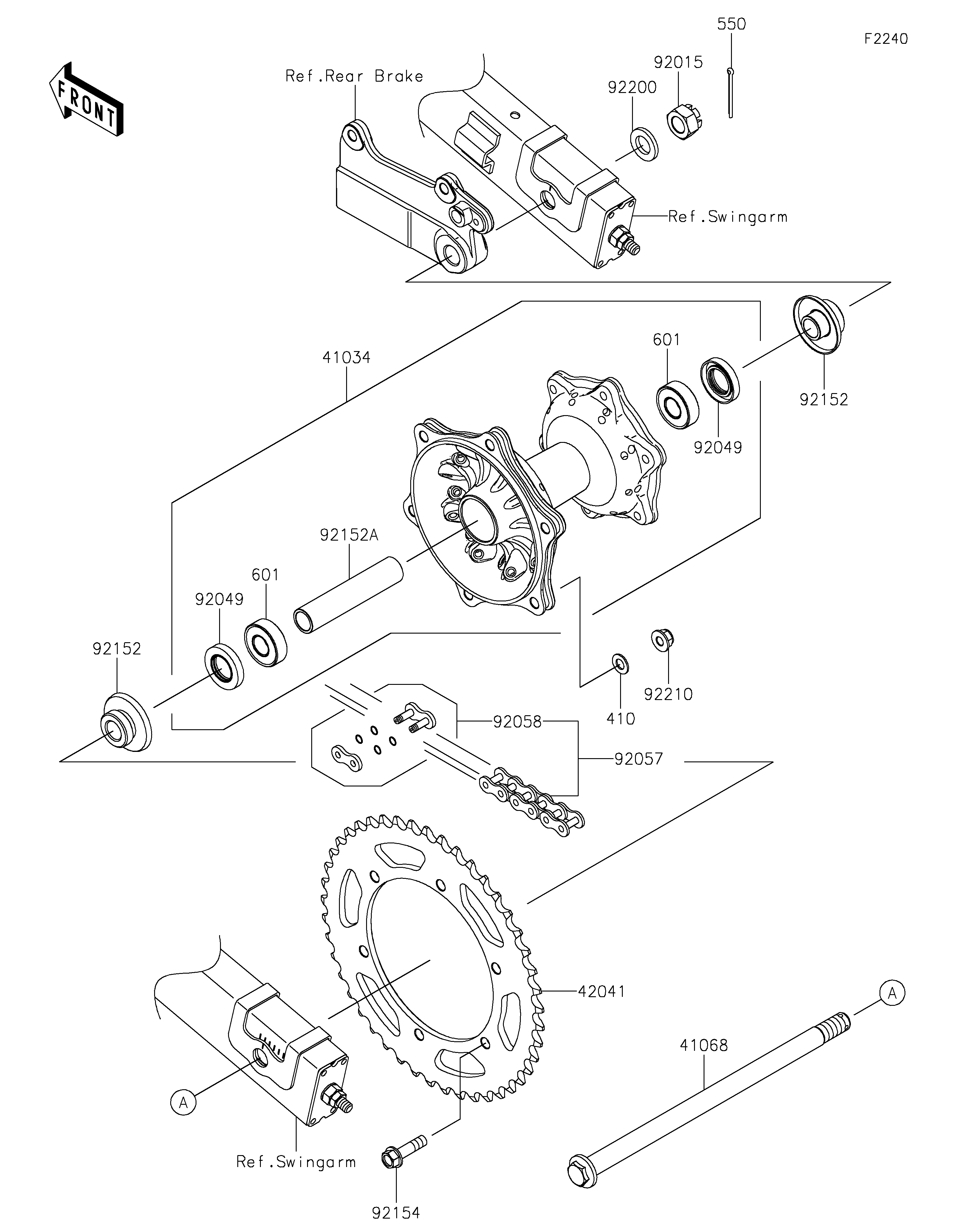

Parts Diagrams |
410
41034
41068
42041
550
601
601
92015
92049
92049
92057
92058
92152
92152
92152A
92154
92200
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,8MM | 410 | 410AA0800 | 6 | ||
| DRUM-ASSY,RR | 41034 | 41034-0601 | 1 | ||
| AXLE,RR,15X275 | 41068 | 41068-0648 | 1 | ||
| SPROCKET-HUB,45T | 42041 | 42041-0174 | 1 | ||
| PIN-COTTER,3.0X35 | 550 | 550AA3035 | 1 | ||
| BEARING-BALL | 601 | 601B6202UU | 2 | ||
| NUT,CASTLE,14MM | 92015 | 92015-1765 | 1 | ||
| SEAL-OIL | 92049 | 92049-0114 | 2 | ||
| CHAIN,DRIVE,520VF2X108L | 92057 | 92057-0802 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-0069 | 1 | ||
| COLLAR | 92152 | 92152-2544 | 2 | ||
| COLLAR,15.2X20X96.2 | 92152A | 92152-2546 | 1 | ||
| BOLT,FLANGED,8X30 | 92154 | 92154-3918 | 6 | ||
| WASHER,14.2X26X3.2 | 92200 | 92200-1428 | 1 | ||
| NUT,8MM | 92210 | 92210-0570 | 6 |
