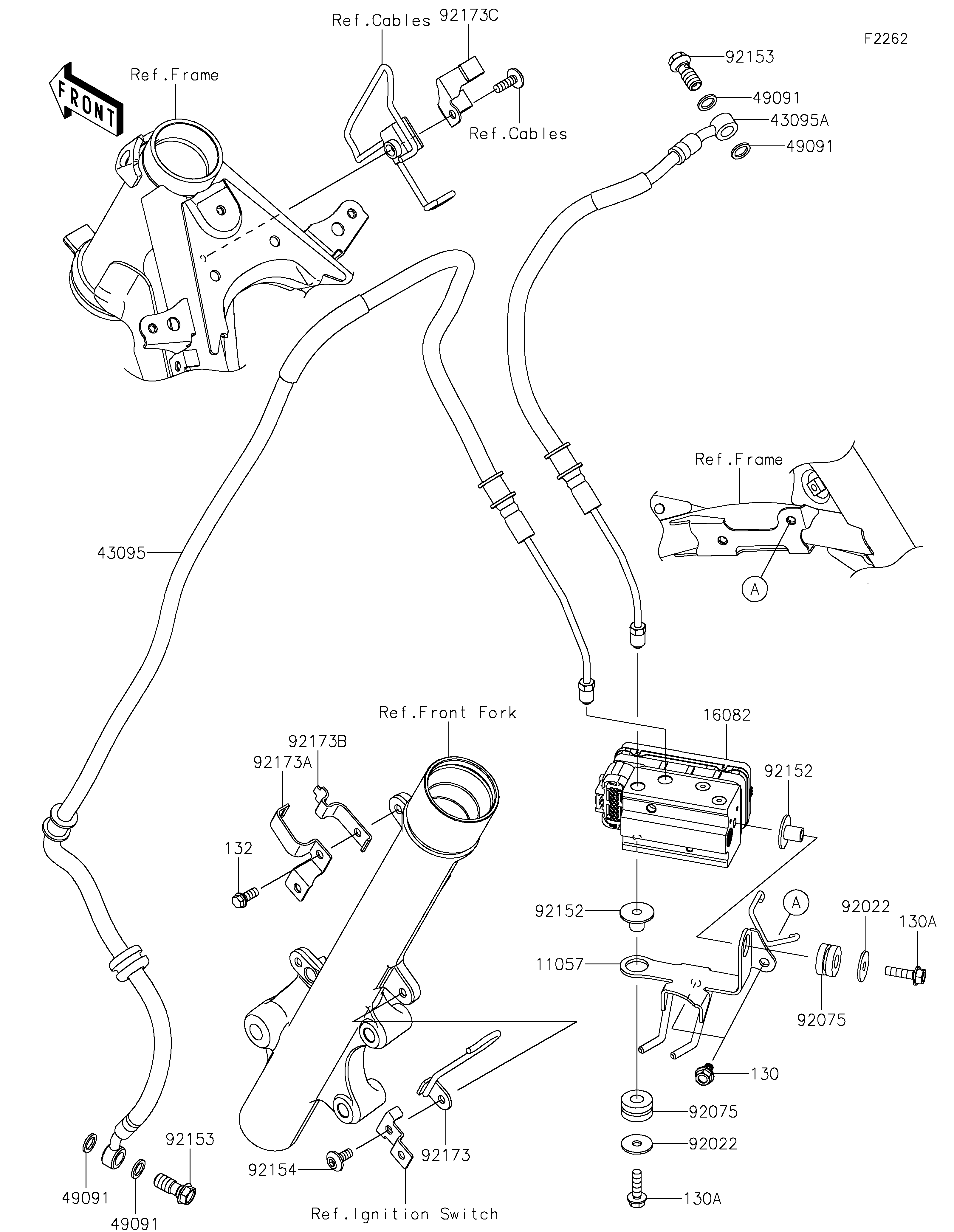

2021 KLX®230 ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11057
130
130A
130A
132
16082
43095
43095A
49091
49091
49091
49091
92022
92022
92075
92075
92152
92152
92153
92153
92154
92173
92173A
92173B
92173C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS UNIT 11057 11057-2358 1
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED,6X22 130A 130BA0622 2
BOLT-FLANGED-SMALL,6X14 132 132BA0614 1
PUMP-ASSY-OIL,ABS,BOSCH,10MB 16082 16082-0823 1
HOSE-BRAKE,ABS UNIT-FR CALIPER 43095 43095-1644 1
HOSE-BRAKE,ABS UNIT-FR M/C 43095A 43095-1645 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
WASHER,6.5X22X1.6 92022 92022-237 2
DAMPER 92075 92075-209 2
COLLAR,6.5X10X13.6 92152 92152-2204 2
BOLT,OIL,L=23 92153 92153-0029 2
BOLT,SOCKET,6X14 92154 92154-3763 1
CLAMP,BRAKE HOSE,CALIPER 92173 92173-1972 1
CLAMP 92173A 92173-2043 1
CLAMP 92173B 92173-2044 1
CLAMP 92173C 92173-2045 1
