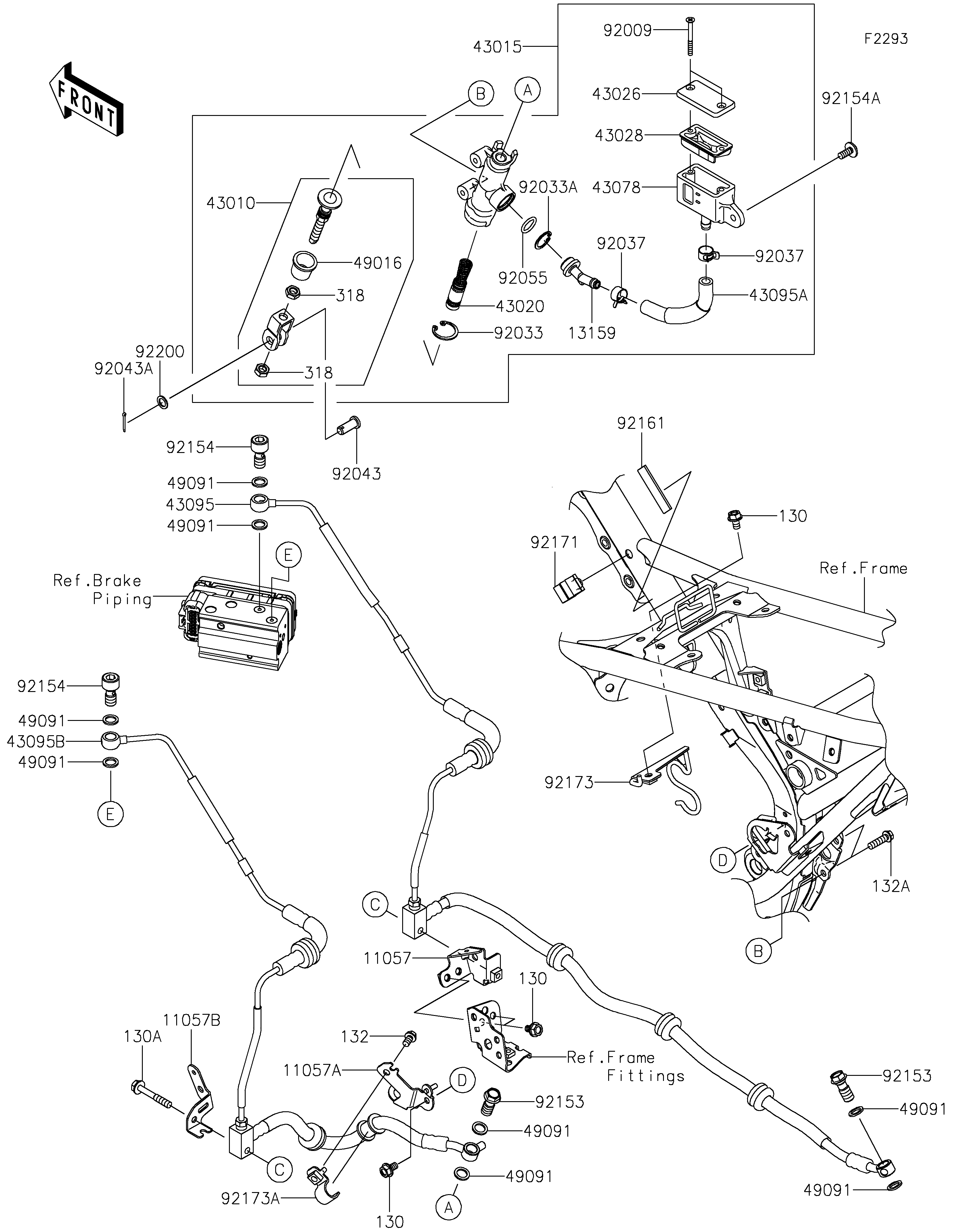

2021 KLX®230 ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
130
130
130
130A
13159
132
132A
318
318
43010
43015
43020
43026
43028
43078
43095
43095A
43095B
49016
49091
49091
49091
49091
49091
49091
49091
49091
92009
92033
92033A
92037
92037
92043
92043A
92055
92153
92153
92154
92154
92154A
92161
92171
92173
92173A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-2362 1
BRACKET 11057A 11057-2363 1
BRACKET 11057B 11057-2485 1
BOLT-FLANGED,6X10 130 130BA0610 4
BOLT-FLANGED,6X40 130A 130BA0640 1
CONNECTOR 13159 13159-0009 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
BOLT-FLANGED-SMALL,6X22 132A 132BA0622 2
NUT-HEX-SMALL,8MM 318 318BA0800 2
ROD-ASSY-BRAKE 43010 43010-0028 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0737 1
PISTON-COMP-BRAKE 43020 43020-0027 1
CAP-BRAKE 43026 43026-1075 1
DIAPHRAGM 43028 43028-1067 1
RESERVOIR 43078 43078-1189 1
HOSE-BRAKE,ABS UNIT-RR CALIPER 43095 43095-1647 1
HOSE-BRAKE 43095A 43095-1663 1
HOSE-BRAKE,ABS UNIT-RR M/C 43095B 43095-1734 1
COVER-SEAL,BRAKE PISTON 49016 49016-1103 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 8
SCREW,4X40 92009 92009-1596 2
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-0004 1
PIN,COTTER,2.0X15 92043A 92043-0766 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,OIL,L=23 92153 92153-0029 2
BOLT,BANJO,10X20.8 92154 92154-1121 2
BOLT,SOCKET,6X14 92154A 92154-1202 1
DAMPER,13X48X2 92161 92161-1972 1
CLAMP 92171 92171-0818 1
CLAMP 92173 92173-2047 1
CLAMP 92173A 92173-2137 1
WASHER,8.5X13X1 92200 92200-1980 1
