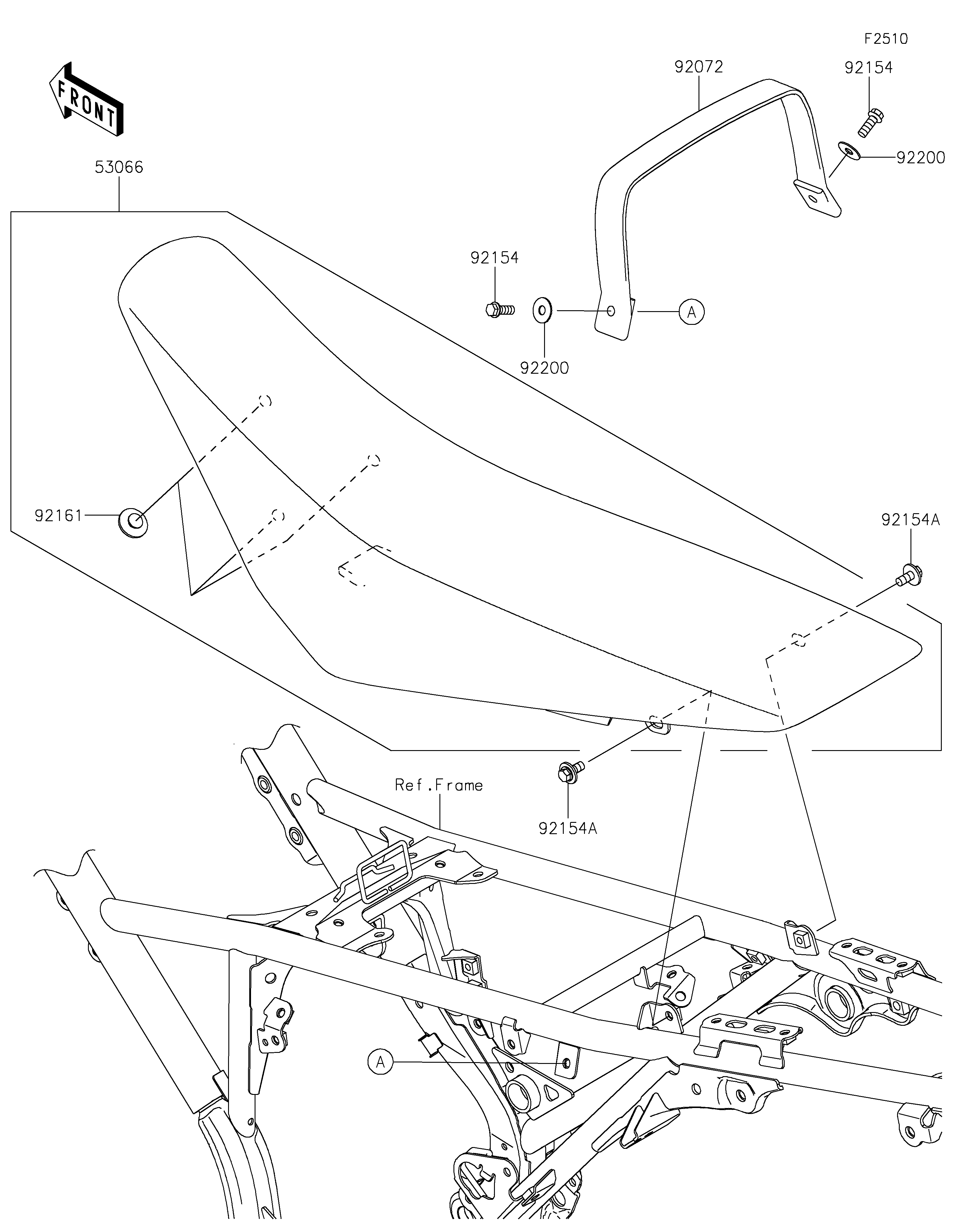

53066
92072
92154
92154
92154A
92154A
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY,BLACK 53066 53066-0692-MA 1
BAND,BLACK 92072 92072-0837-MA 1
BOLT,FLANGED,6X16 92154 92154-0460 2
BOLT,FLANGED,6X14 92154A 92154-1231 2
DAMPER,8X22X10 92161 92161-1685 3
WASHER,6.5X18X1 92200 92200-0544 2
