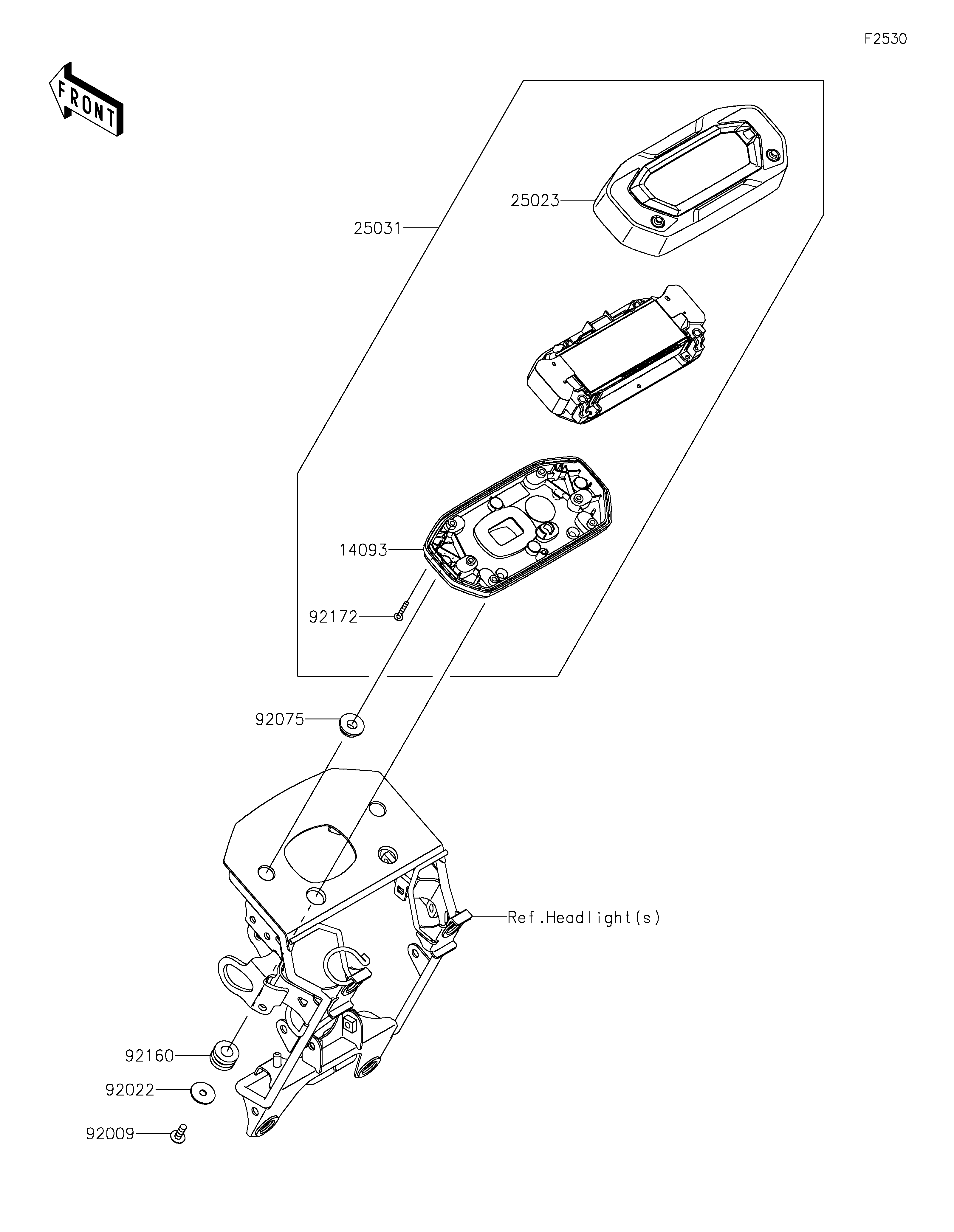

14093
25023
25031
92009
92022
92075
92160
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER 14093 14093-0941 1
COVER-METER CASE 25023 25023-0139 1
METER-ASSY,LCD 25031 25031-0852 1
SCREW,TAPPING,5X14 92009 92009-1197 2
WASHER,5.5X20X1.2 92022 92022-1405 2
DAMPER,RADIATOR GUARD 92075 92075-1469 2
DAMPER,10X20X12 92160 92160-1167 2
SCREW,TAPPING,3X20 92172 92172-1224 6
