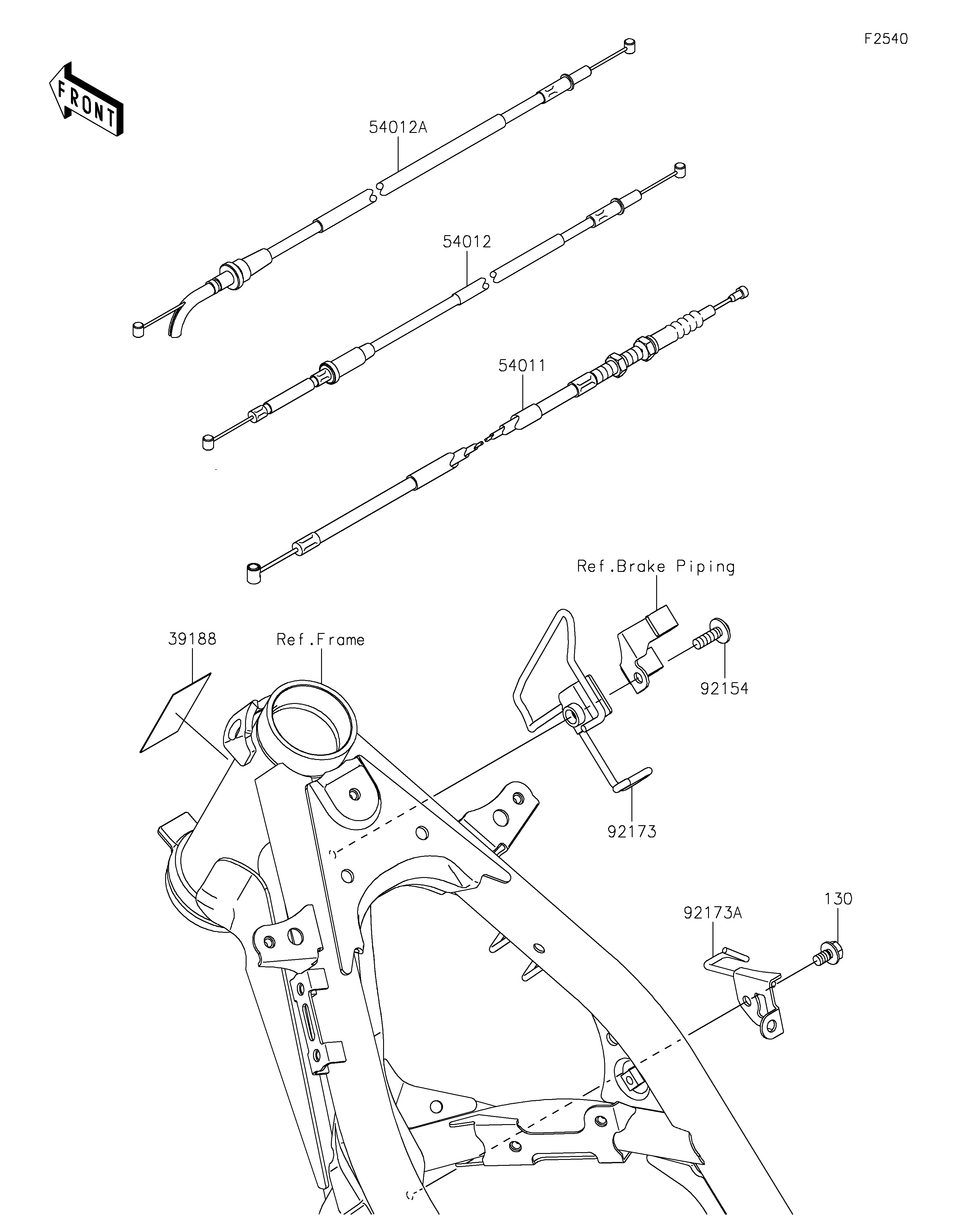

130
39188
54011
54012
54012A
92154
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 1
TAPE,30X60X0.36 39188 39188-0581 1
CABLE-CLUTCH 54011 54011-0639 1
CABLE-THROTTLE,RETURN 54012 54012-0689 1
CABLE-THROTTLE,PULL 54012A 54012-0710 1
BOLT,SOCKET,6X18 92154 92154-1291 1
CLAMP 92173 92173-2046 1
CLAMP 92173A 92173-2243 1
