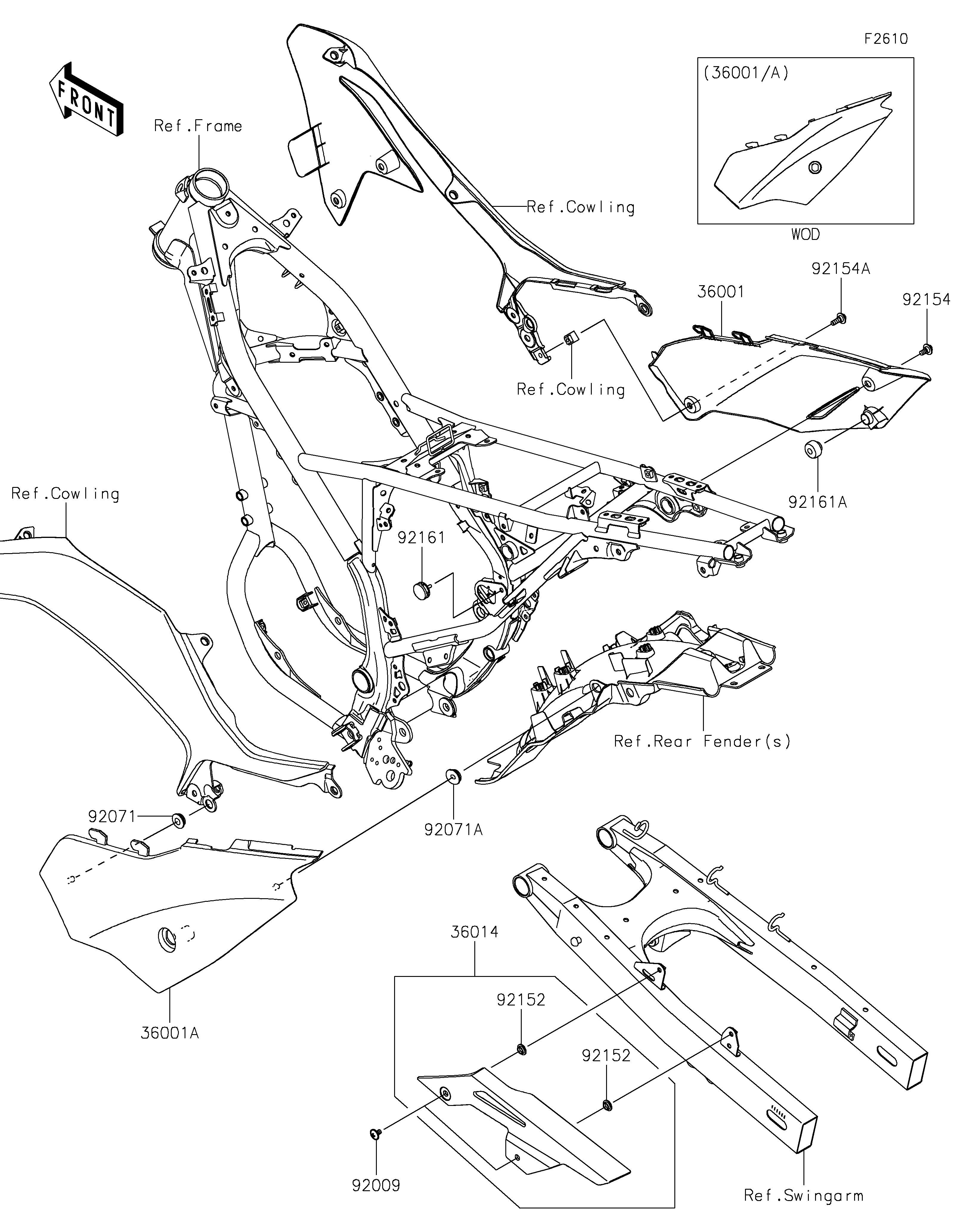

36001
36001A
36014
92009
92071
92071A
92152
92152
92154
92154A
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,RH,B.WHITE 36001 36001-0679-266 1
COVER-SIDE,LH,B.WHITE 36001A 36001-0684-266 1
CASE-CHAIN 36014 36014-0560 1
SCREW,6X10 92009 92009-1729 2
GROMMET 92071 92071-0794 1
GROMMET 92071A 92071-0795 1
COLLAR,8.8X16X4 92152 92152-1731 2
BOLT,FLANGED,6X9 92154 92154-0546 1
BOLT,FLANGED,6X28 92154A 92154-1739 1
DAMPER 92161 92161-0581 1
DAMPER 92161A 92161-1783 1
