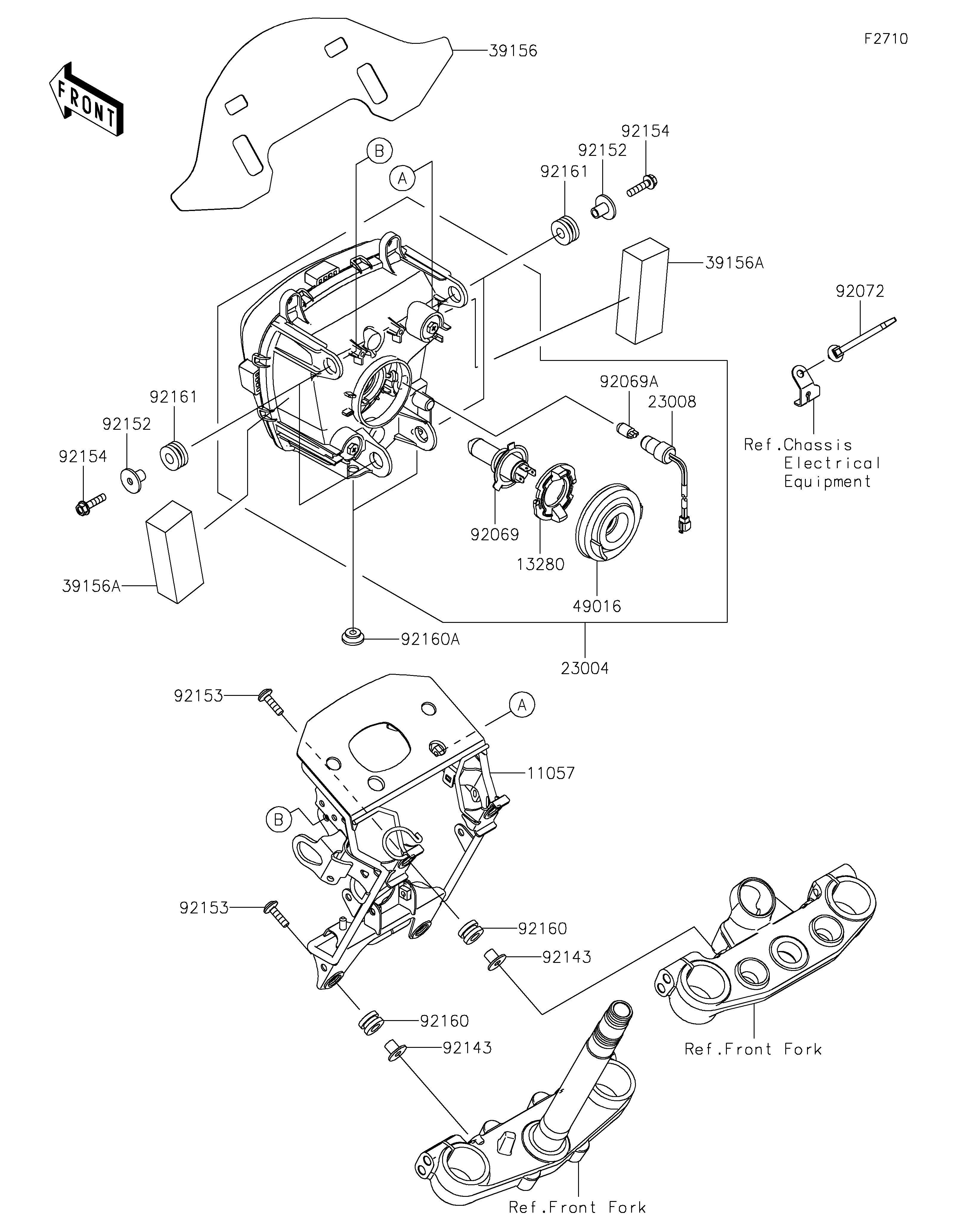

Parts Diagrams |
11057
13280
23004
23008
39156
39156A
39156A
49016
92069
92069A
92072
92143
92143
92152
92152
92153
92153
92154
92154
92160
92160
92160A
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LAMP | 11057 | 11057-4020 | 1 | ||
| HOLDER | 13280 | 13280-0902 | 1 | ||
| LAMP-HEAD | 23004 | 23004-0415 | 1 | ||
| SOCKET-ASSY,POSITION | 23008 | 23008-0197 | 1 | ||
| PAD | 39156 | 39156-2564 | 1 | ||
| PAD,90X25X35 | 39156A | 39156-2572 | 2 | ||
| COVER-SEAL | 49016 | 49016-0649 | 1 | ||
| BULB,12V 60/55W,H4 | 92069 | 92069-0097 | 1 | ||
| BULB,12V 5W | 92069A | 92069-0098 | 1 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | 1 | ||
| COLLAR | 92143 | 92143-1353 | 4 | ||
| COLLAR,6.5X10X15.3 | 92152 | 92152-1793 | 4 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-0574 | 4 | ||
| BOLT,FLANGED,6X25 | 92154 | 92154-2774 | 4 | ||
| DAMPER,10X20X12 | 92160 | 92160-1167 | 4 | ||
| DAMPER | 92160A | 92160-1613 | 2 | ||
| DAMPER,10X24X12 | 92161 | 92161-2112 | 4 |
| BRACKET,HEAD LAMP | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-HEAD | |
| REF # | 23004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,POSITION | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,90X25X35 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 60/55W,H4 | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 5W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,OS170-FT7(BLACK) | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X15.3 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X12 | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X24X12 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
