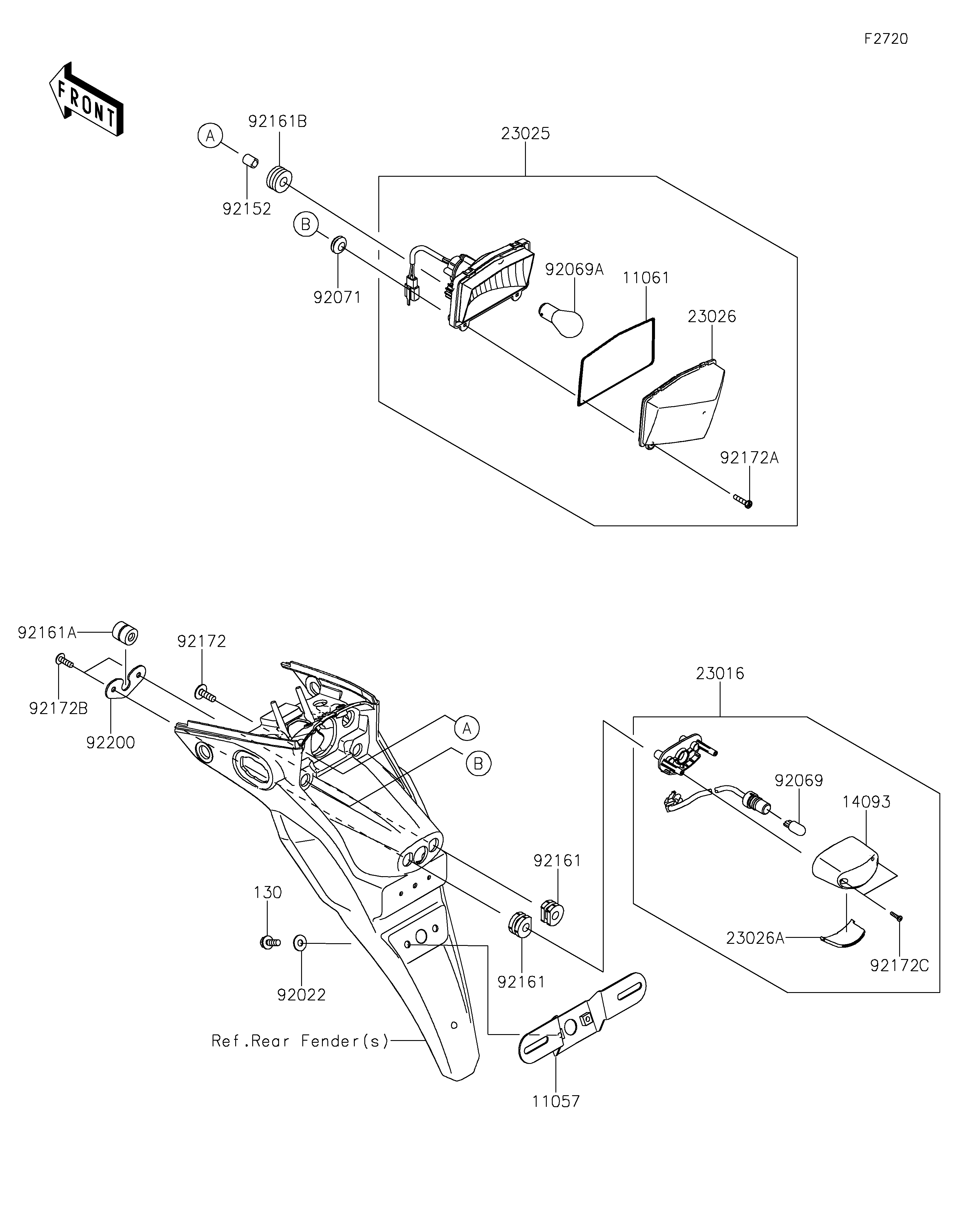

2021 KLX®230 ABS - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
11061
130
14093
23016
23025
23026
23026A
92022
92069
92069A
92071
92152
92161
92161
92161A
92161B
92172
92172A
92172B
92172C
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE PLATE 11057 11057-1046 1
GASKET,TAIL LAMP LENS 11061 11061-0393 1
BOLT-FLANGED,6X16 130 130BA0616 2
COVER,LICENSE LAMP 14093 14093-0525 1
LAMP-ASSY,LICENCE 23016 23016-0604 1
LAMP-TAIL 23025 23025-0355 1
LENS,TAIL LAMP 23026 23026-0024 1
LENS,LICENSE LAMP 23026A 23026-0025 1
WASHER,6.5X16X1.0 92022 92022-1093 2
BULB,12V 5W 92069 92069-1016 1
BULB,12V 21/5W 92069A 92069-1084 1
GROMMET 92071 92071-024 2
COLLAR,6.8X10X13 92152 92152-0580 2
DAMPER 92161 92161-0776 2
DAMPER,6X18X18.2 92161A 92161-1809 1
DAMPER,10X24X12 92161B 92161-2112 2
SCREW,6X18 92172 92172-0192 2
SCREW,4.2X19 92172A 92172-0411 2
SCREW,TAPPING,5X16 92172B 92172-0427 2
SCREW,4X12 92172C 92172-0904 2
WASHER 92200 92200-1773 1
