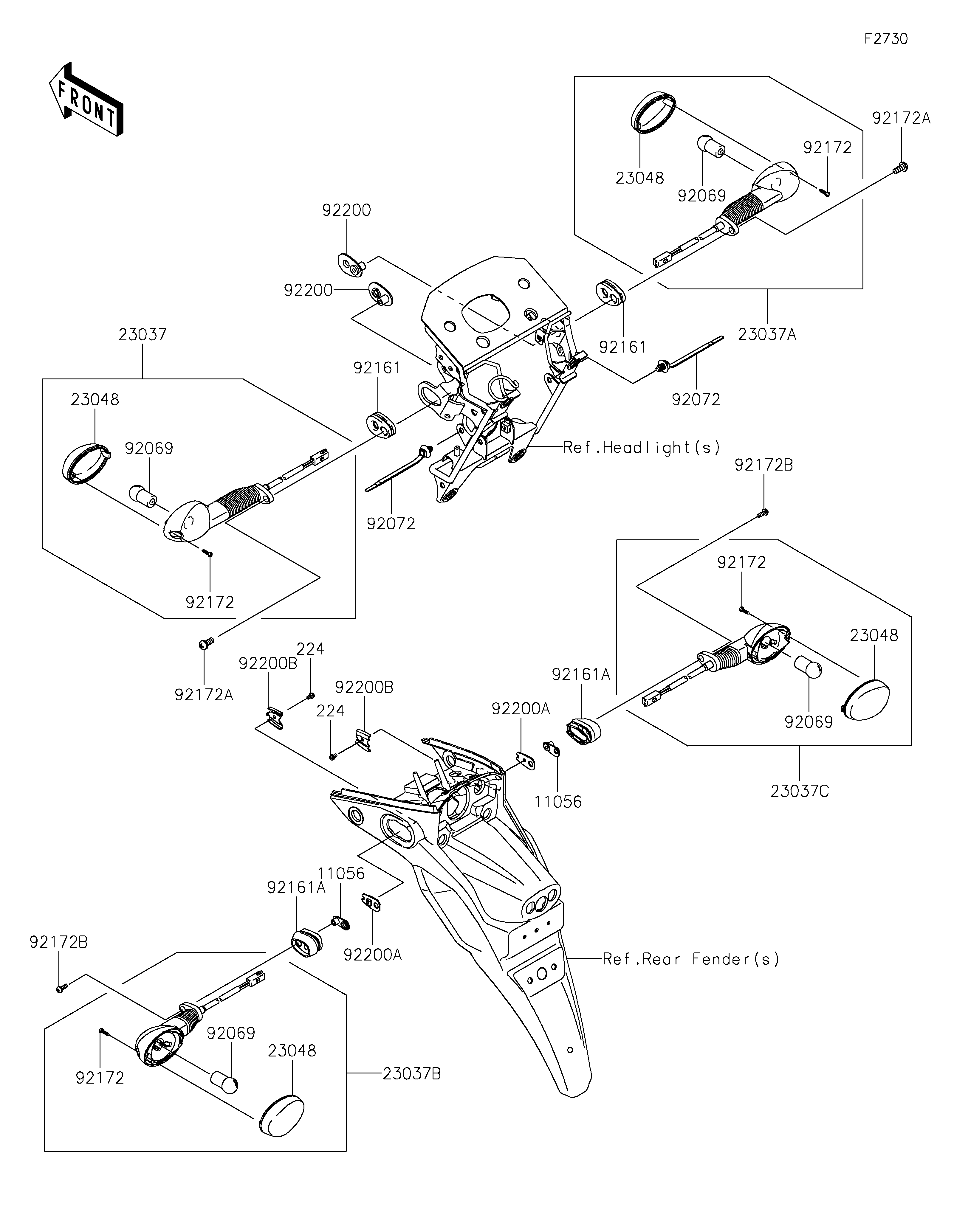

Parts Diagrams |
11056
11056
224
224
23037
23037A
23037B
23037C
23048
23048
23048
23048
92069
92069
92069
92069
92072
92072
92161
92161
92161A
92161A
92172
92172
92172
92172
92172A
92172A
92172B
92172B
92200
92200
92200A
92200A
92200B
92200B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,6MM | 11056 | 11056-4156 | 2 | ||
| SCREW-PAN-WP-CROS,4X8 | 224 | 224AB0408 | 2 | ||
| LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-0382 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-0383 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,LH | 23037B | 23037-0418 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,RH | 23037C | 23037-0419 | 1 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-0035 | 4 | ||
| BULB,12V 10W | 92069 | 92069-0106 | 4 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | 2 | ||
| DAMPER,MOUNT,FR | 92161 | 92161-2113 | 2 | ||
| DAMPER | 92161A | 92161-2287 | 2 | ||
| SCREW,TAPPING,2.9X13 | 92172 | 92172-0343 | 4 | ||
| SCREW,6X14 | 92172A | 92172-0497 | 2 | ||
| SCREW-PAN-WP-CROS,6X14 | 92172B | 92172-1256 | 2 | ||
| WASHER | 92200 | 92200-0874 | 2 | ||
| WASHER,W/NUT,M4 | 92200A | 92200-1978 | 2 | ||
| WASHER | 92200B | 92200-1979 | 2 |
