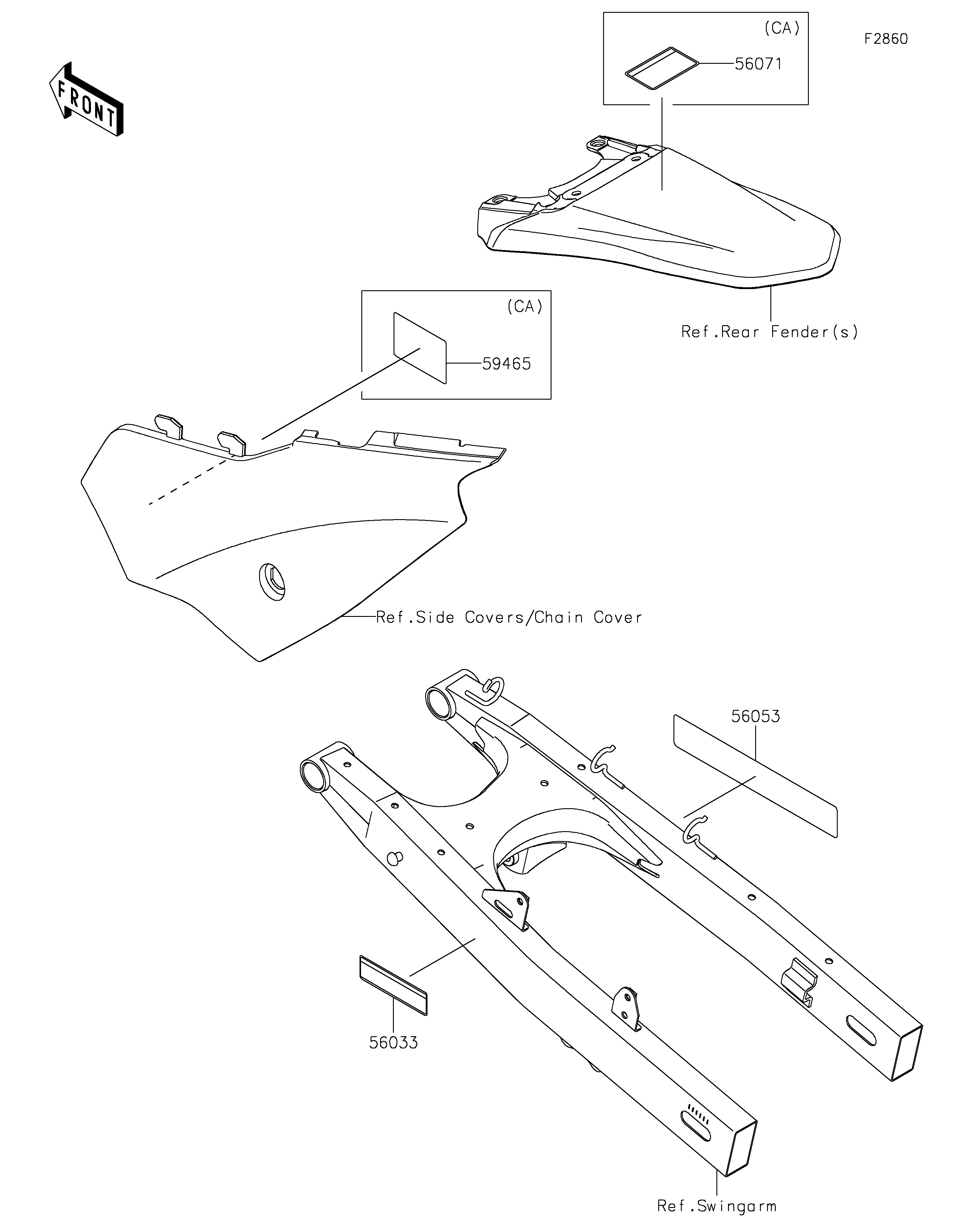

56033
56053
56071
59465
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,CHAIN 56033 56033-1466 1
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-1779 1
LABEL-WARNING,EVAPO 56071 56071-0158 1 CA
LABEL-CERTIFICATION,ROUTING 59465 59465-7182 1 CA
