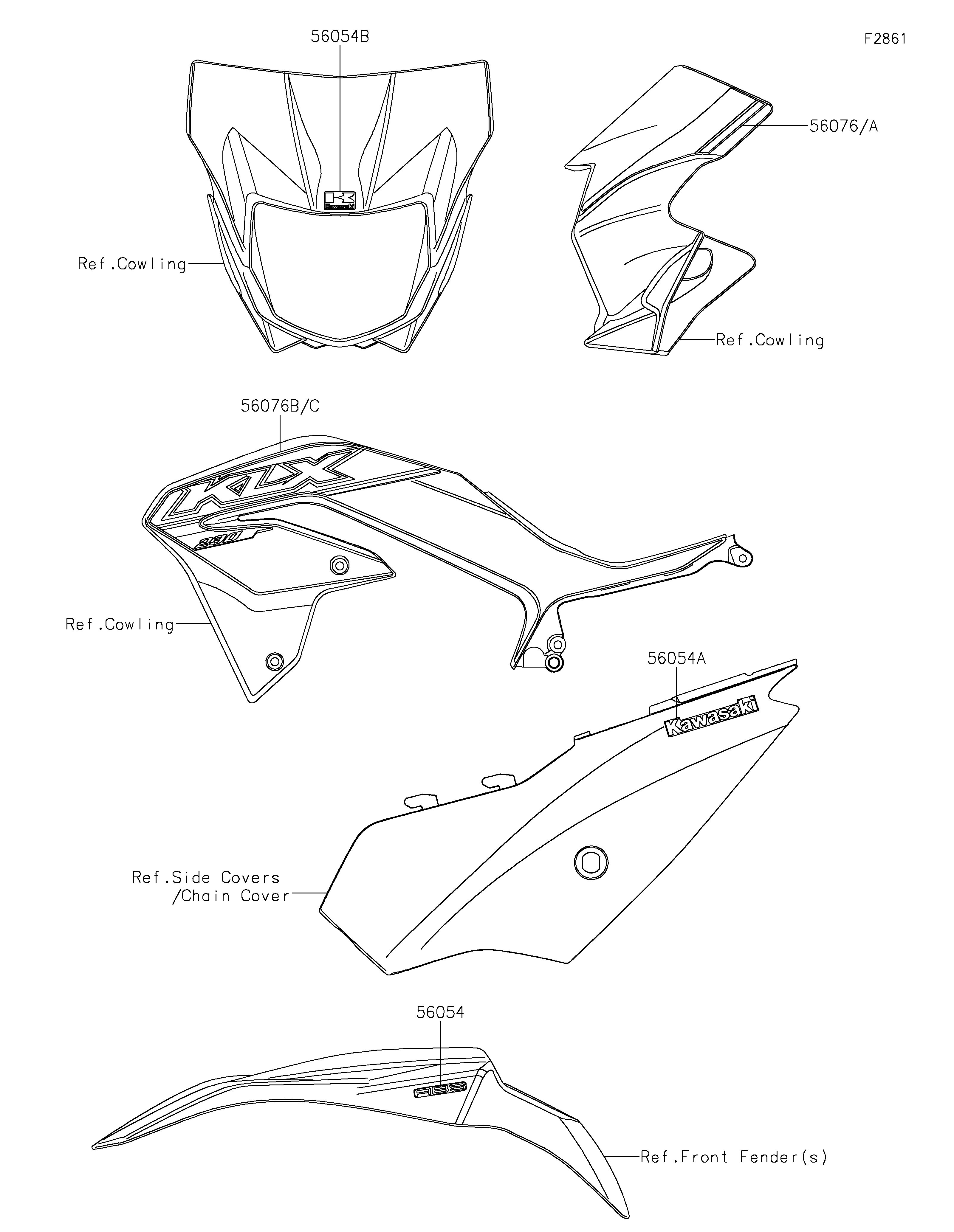

56054
56054A
56054B
56076
56076A
56076B
56076C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,ABS 56054 56054-2589 2
MARK,SIDE COVER,KAWASAKI 56054A 56054-2602 2
MARK,KAWASAKI 56054B 56054-2700 1
PATTERN,HEAD LAMP COVER,LH 56076 56076-1500 1
PATTERN,HEAD LAMP COVER,RH 56076A 56076-1501 1
PATTERN,SHROUD,LH 56076B 56076-1502 1
PATTERN,SHROUD,RH 56076C 56076-1503 1
