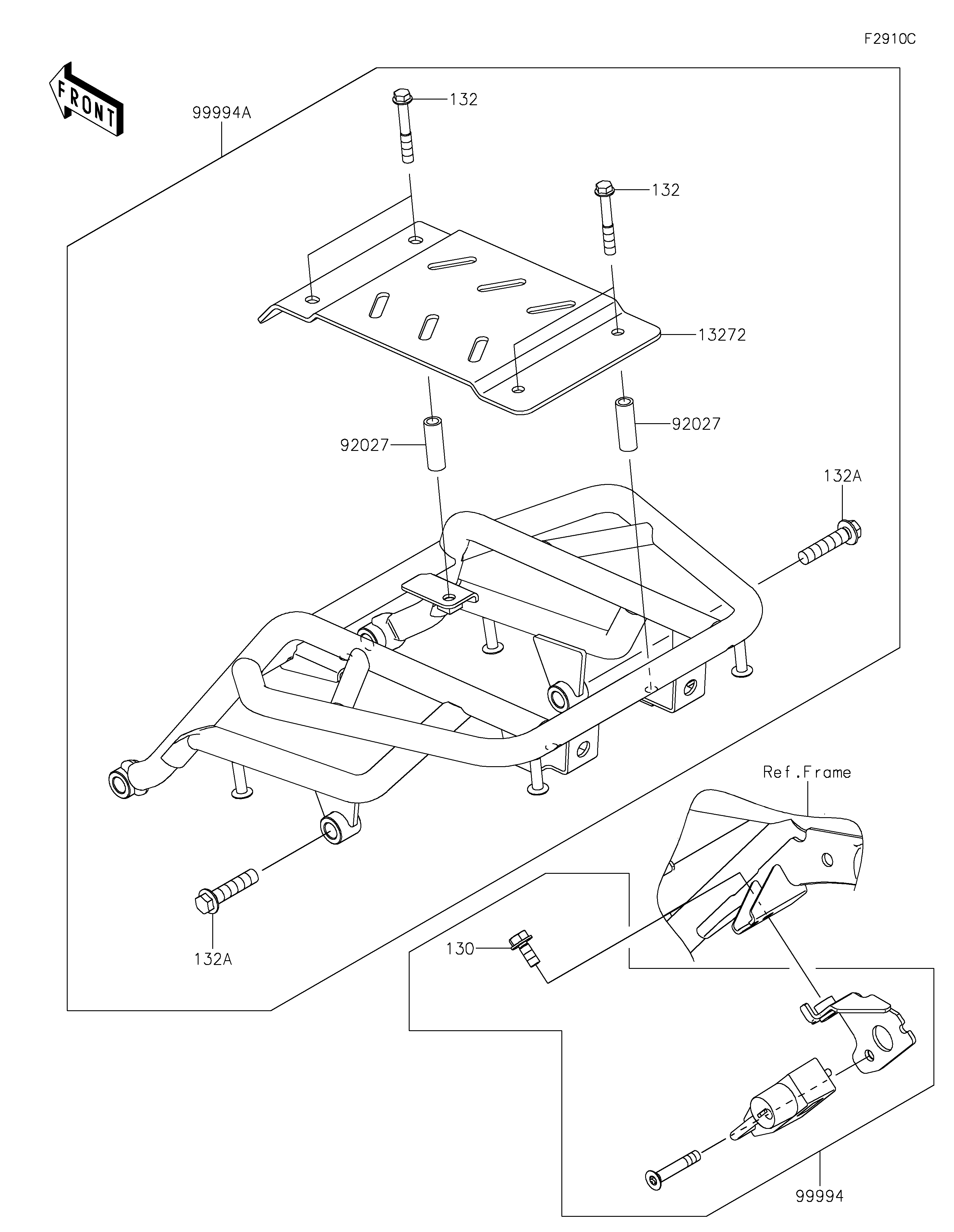

2021 KLX®230 ABS - Accessory(Helmet Lock and Carrier)

130
132
132
13272
132A
132A
92027
92027
99994
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 1
BOLT-FLANGED-SMALL,6X40 132 132BA0640 4
PLATE 13272 13272-2731 1
BOLT-FLANGED-SMALL,8X35 132A 132BA0835 4
COLLAR,6.8X10X30 92027 92027-209 4
HELMET LOCK 99994 99994-1279 1
CARRIER 99994A 99994-1280 1
