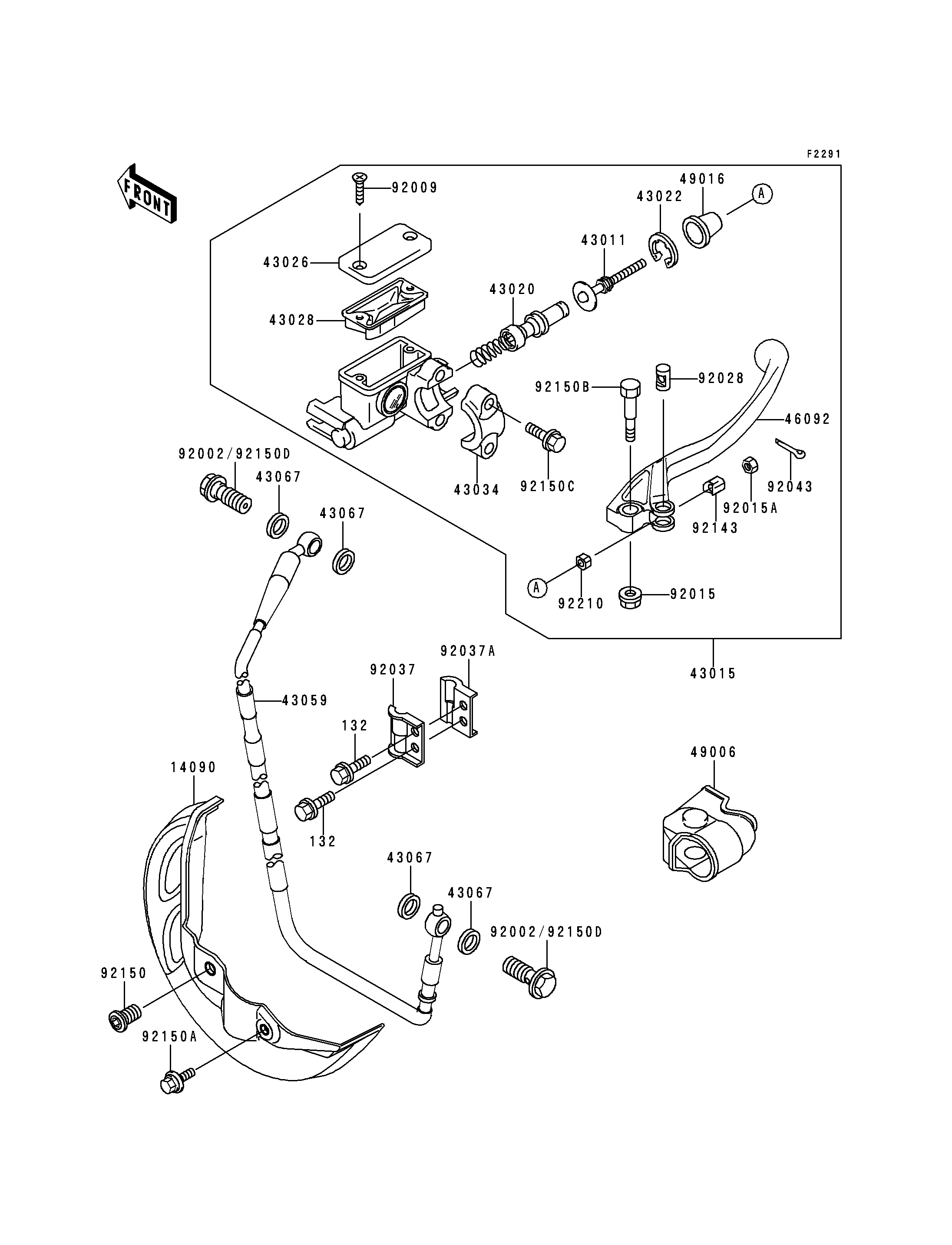

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0616 | 2 | ||
| COVER,FRONT DISC,WHITE | 14090 | 14090-1824-RZ | 1 | ||
| ROD-BRAKE,FR MASTER CYLINDER | 43011 | 43011-1166 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1582 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1112 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1075 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1067 | 1 | ||
| HOLDER-BRAKE | 43034 | 43034-1110 | 1 | ||
| HOSE-BRAKE,FR | 43059 | 43059-1950 | 1 | ||
| WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
| LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1191 | 1 | ||
| BOOT,FRONT BRAKE LEVER | 49006 | 49006-1286 | 1 | ||
| COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
| SCREW,4MM | 92009 | 92009-1458 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
| NUT,ADJUST | 92015A | 92015-1642 | 1 | ||
| BUSHING | 92028 | 92028-1792 | 1 | ||
| CLAMP,BRAKE HOSE,OUTSIDE | 92037 | 92037-1362 | 1 | ||
| CLAMP,BRAKE HOSE,INSIDE | 92037A | 92037-1363 | 1 | ||
| PIN | 92043 | 92043-1539 | 1 | ||
| COLLAR | 92143 | 92143-1882 | 1 | ||
| BOLT,SOCKET,10X16 | 92150 | 92150-1111 | 1 | ||
| BOLT,6X14 | 92150A | 92150-1340 | 1 | ||
| BOLT,LEVER SET | 92150B | 92150-1451 | 1 | ||
| BOLT | 92150C | 92150-1452 | 2 | ||
| BOLT,OIL,L=23 | 92150D | 92150-1886 | 2 | (OPTION) | |
| NUT,ADJUST | 92210 | 92210-1064 | 1 |
