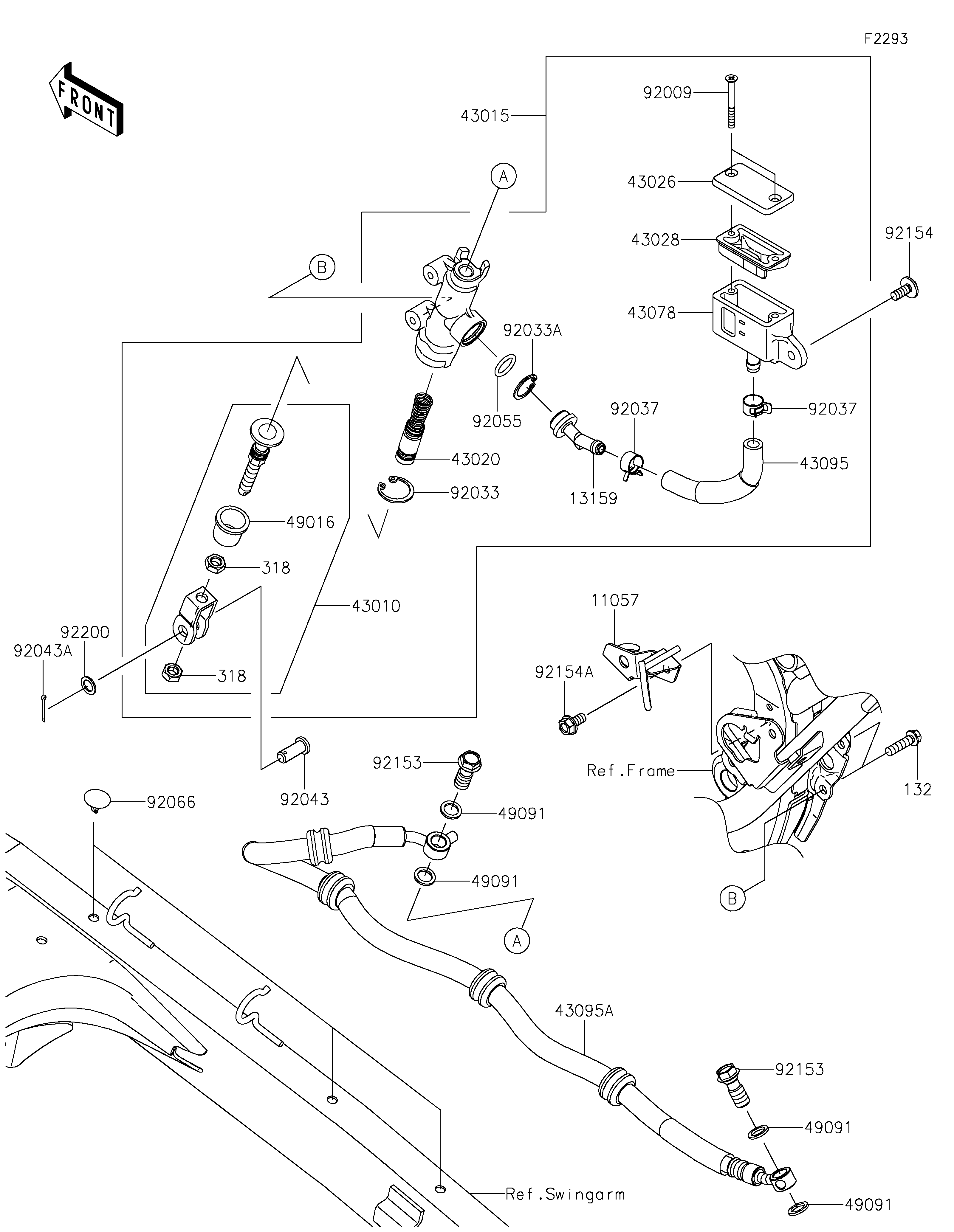

2021 KLX®230 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
13159
132
318
318
43010
43015
43020
43026
43028
43078
43095
43095A
49016
49091
49091
49091
49091
92009
92033
92033A
92037
92037
92043
92043A
92055
92066
92153
92153
92154
92154A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-2396 1
CONNECTOR 13159 13159-0009 1
BOLT-FLANGED-SMALL,6X22 132 132BA0622 2
NUT-HEX-SMALL,8MM 318 318BA0800 2
ROD-ASSY-BRAKE 43010 43010-0028 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0737 1
PISTON-COMP-BRAKE 43020 43020-0027 1
CAP-BRAKE 43026 43026-1075 1
DIAPHRAGM 43028 43028-1067 1
RESERVOIR 43078 43078-1189 1
HOSE-BRAKE 43095 43095-1663 1
HOSE-BRAKE,RR CALIPER-RR M/C 43095A 43095-1665 1
COVER-SEAL,BRAKE PISTON 49016 49016-1103 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
SCREW,4X40 92009 92009-1596 2
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-0004 1
PIN,COTTER,2.0X15 92043A 92043-0766 1
RING-O,14.8X2.4 92055 92055-0741 1
PLUG 92066 92066-0934 3
BOLT,OIL,L=23 92153 92153-0029 2
BOLT,SOCKET,6X14 92154 92154-1202 1
BOLT,FLANGED,6X12 92154A 92154-2776 1
WASHER,8.5X13X1 92200 92200-1980 1
