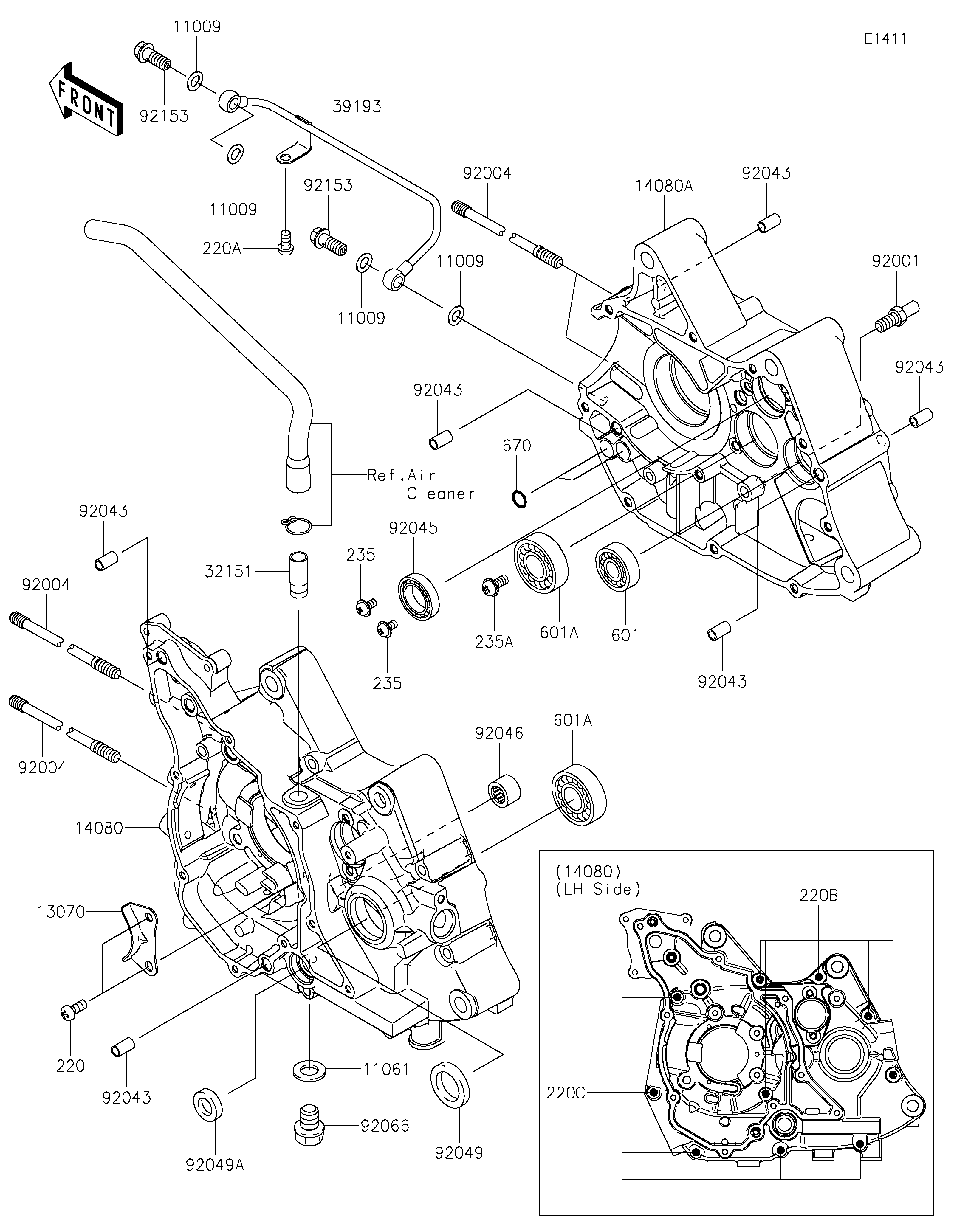

2021 Z125 PRO - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11061
13070
14080
14080A
220
220A
220B
220C
235
235
235A
32151
39193
601
601A
601A
670
92001
92004
92004
92004
92043
92043
92043
92043
92043
92043
92045
92046
92049
92049A
92066
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,8.2X14X1.0 11009 11009-1344 4
GASKET,DRAIN PLUG 11061 11061-0421 1
GUIDE 13070 13070-0069 1
CRANKCASE,LH 14080 14080-0747 1
CRANKCASE,RH 14080A 14080-0752 1
SCREW-PAN-CROS,6X14 220 220AA0614 2
SCREW-PAN-CROS,6X12 220A 220AC0612 1
SCREW-PAN-CROS,6X50 220B 220AC0650 5
SCREW-PAN-CROS,6X75 220C 220AC0675 5
SCREW-PAN-WP-CROS,5X10 235 235AA0510 2
SCREW-PAN-WP-CROS,6X14 235A 235AA0614 1
PIPE 32151 32151-1961 1
PIPE-OIL 39193 39193-1056 1
BEARING-BALL 601 601A6201 1
BEARING-BALL,#6203 601A 601A6203 2
O RING,9.8X1.9 670 670B1510 2
BOLT,RETURN SPRING 92001 92001-1455 1
STUD,8X190 92004 92004-1281 4
PIN,6.2X8X14 92043 92043-1263 6
BEARING-BALL,6804 92045 92045-0758 1
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,SC22325 92049 92049-1048 1
SEAL-OIL 92049A 92049-1559 1
PLUG,OIL DRAIN,12X15 92066 92066-0753 1
BOLT,8X20 92153 92153-0570 2
