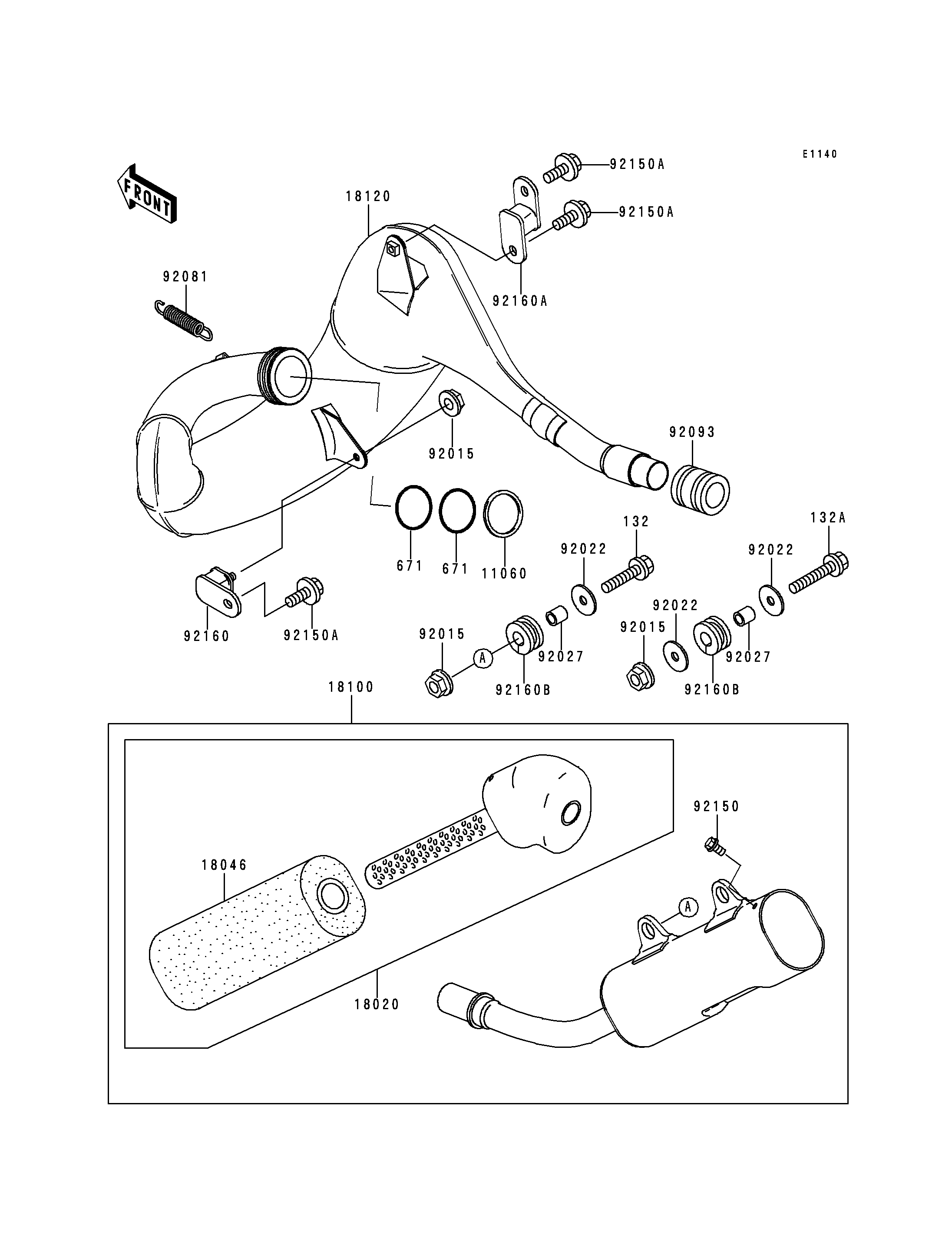

2000 KX250 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
671
671
11060
18020
18046
18100
18120
92015
92015
92015
92022
92022
92022
92027
92027
92081
92093
92150
92150A
92150A
92150A
92160
92160A
92160B
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0635 1
BOLT-FLANGED-SMALL 132A 132G0640 1
O RING,50MM 671 671E2550 2
GASKET,EXHAUST PIPE 11060 11060-1689 1
BAFFLE 18020 18020-1237 1
WOOL,BAFFLE PIPE 18046 18046-1397 1
BODY-ASSY-MUFFLER 18100 18100-1078 1
CHAMBER-EXHAUST 18120 18120-1087 1
NUT,FLANGED,6MM 92015 92015-1078 3
WASHER,6.5X22X1.6 92022 92022-237 3
COLLAR,6.8X10X10.5 92027 92027-120 2
SPRING 92081 92081-1526 2
SEAL,MUFFLER CONNECTING 92093 92093-1328 1
BOLT,5X8 92150 92150-1406 4
BOLT,6X12 92150A 92150-1435 3
DAMPER,MUFFLER,FR 92160 92160-1176 1
DAMPER,MUFFLER,RR 92160A 92160-1201 1
DAMPER,MUFFLER FITTING 92160B 92160-1913 2
