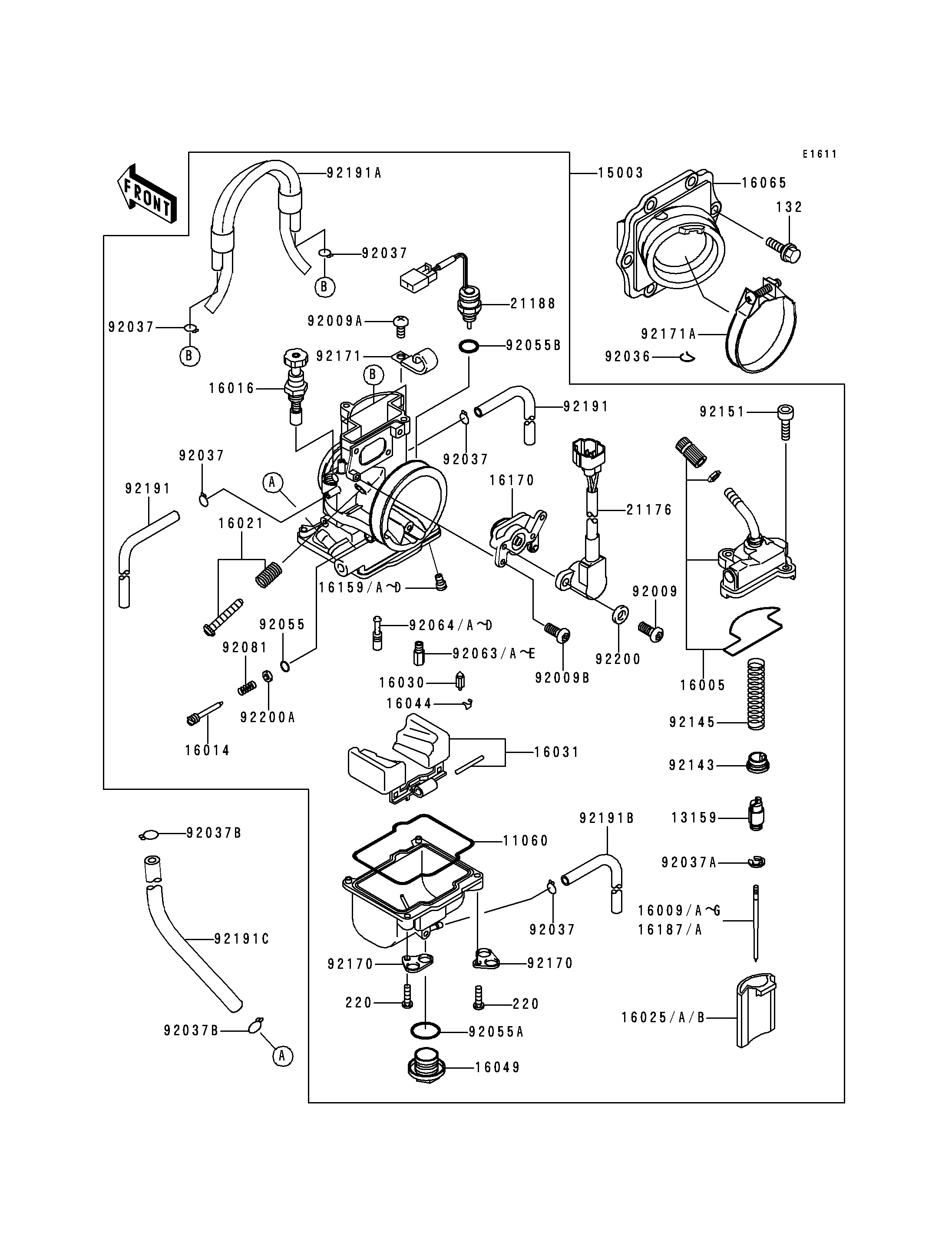

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FLOAT CHAMBER | 11060 | 11060-1254 | 1 | ||
| CONNECTOR,THROTTLE CABLE | 13159 | 13159-1063 | 1 | ||
| CARBURETOR-ASSY | 15003 | 15003-1524 | 1 | ||
| TOP-CHAMBER | 16005 | 16005-1083 | 1 | ||
| NEEDLE-JET,N3WD | 16009 | 16009-1914 | 1 | (OPTION) | |
| SCREW-PILOT AIR | 16014 | 16014-1058 | 1 | ||
| PLUNGER | 16016 | 16016-1085 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-1198 | 1 | ||
| VALVE-THROTTLE,#6 | 16025 | 16025-1215 | 1 | (OPTION) | |
| VALVE-THROTTLE,#7 | 16025A | 16025-1216 | 1 | (OPTION) | |
| VALVE-THROTTLE,#8 | 16025B | 16025-1217 | 1 | ||
| VALVE-FLOAT | 16030 | 16030-1057 | 1 | ||
| FLOAT | 16031 | 16031-1100 | 1 | ||
| CLAMP,FLOAT VALVE | 16044 | 16044-007 | 1 | ||
| COVER-MAIN JET | 16049 | 16049-1051 | 1 | ||
| HOLDER-CARBURETOR | 16065 | 16065-1358 | 1 | ||
| JET-POWER,#50 | 16159 | 16159-1053 | 1 | (OPTION) | |
| LINK-ASSY | 16170 | 16170-1056 | 1 | ||
| SENSOR | 21176 | 21176-1089 | 1 | ||
| SOLENOID | 21188 | 21188-1005 | 1 | ||
| SCREW | 92009 | 92009-1781 | 2 | ||
| SCREW,CLAMP | 92009A | 92009-1833 | 1 | ||
| SCREW | 92009B | 92009-1889 | 2 | ||
| RING-SNAP | 92036 | 92036-018 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1396 | 5 | ||
| CLAMP,JET NEEDLE | 92037A | 92037-1401 | 1 | ||
| CLAMP,TUBE | 92037B | 92037-147 | 2 | ||
| RING-O,PILOT ADJUST | 92055 | 92055-1002 | 1 | ||
| RING-O,MAIN JET COVER | 92055A | 92055-1167 | 1 | ||
| RING-O | 92055B | 92055-1580 | 1 | ||
| JET-MAIN,#155 | 92063 | 92063-1366 | 1 | (OPTION) | |
| JET-MAIN,#158 | 92063A | 92063-1367 | 1 | (OPTION) | |
| JET-MAIN,#160 | 92063B | 92063-1368 | 1 | ||
| JET-MAIN,#162 | 92063C | 92063-1369 | 1 | (OPTION) | |
| JET-MAIN,#165 | 92063D | 92063-1370 | 1 | (OPTION) | |
| JET-MAIN,#170 | 92063E | 92063-1372 | 1 | (OPTION) | |
| JET-PILOT,#52 | 92064 | 92064-1130 | 1 | ||
| JET-PILOT,#48 | 92064A | 92064-1143 | 1 | (OPTION) | |
| JET-PILOT,#50 | 92064B | 92064-1144 | 1 | (OPTION) | |
| JET-PILOT,#55 | 92064C | 92064-1145 | 1 | (OPTION) | |
| JET-PILOT,#58 | 92064D | 92064-1146 | 1 | (OPTION) | |
| SPRING,ADJUST SCREW | 92081 | 92081-1555 | 1 | ||
| COLLAR,THROTTLE VALVE | 92143 | 92143-1201 | 1 | ||
| SPRING,THROTTLE VALVE | 92145 | 92145-1242 | 1 | ||
| BOLT | 92151 | 92151-1507 | 2 | ||
| CLAMP | 92170 | 92170-1582 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0620 | 6 | ||
| SCREW-PAN-CROS | 220 | 220D0414 | 4 | ||
| CLAMP | 92171 | 92171-1077 | 1 | ||
| CLAMP | 92171A | 92171-1105 | 1 | ||
| TUBE,4X7X480 | 92191 | 92191-1254 | 2 | ||
| TUBE,AIR VENT | 92191A | 92191-1255 | 1 | ||
| TUBE,3.5X6.5X330 | 92191B | 92191-1256 | 1 | ||
| TUBE,5.3X10.5X160 | 92191C | 92191-1332 | 1 | ||
| WASHER | 92200 | 92200-1369 | 2 | ||
| WASHER | 92200A | 92200-1466 | 1 | ||
| NEEDLE-JET,N3WE | 16009A | 16009-1915 | 1 | ||
| NEEDLE-JET,N3WF | 16009B | 16009-1916 | 1 | (OPTION) | |
| NEEDLE-JET,N3WG | 16009C | 16009-1917 | 1 | (OPTION) | |
| NEEDLE-JET,N3YD | 16009D | 16009-1919 | 1 | (OPTION) | |
| NEEDLE-JET,N3YE | 16009E | 16009-1920 | 1 | (OPTION) | |
| NEEDLE-JET,N3YF | 16009F | 16009-1921 | 1 | (OPTION) | |
| NEEDLE-JET,N3YG | 16009G | 16009-1922 | 1 | (OPTION) | |
| JET-POWER,#52 | 16159A | 16159-1055 | 1 | (OPTION) | |
| JET-POWER,#48 | 16159B | 16159-1058 | 1 | ||
| JET-POWER,#42 | 16159C | 16159-1059 | 1 | (OPTION) | |
| JET-POWER,#45 | 16159D | 16159-1060 | 1 | (OPTION) | |
| NEEDLE-JET,N3WC | 16187 | 16187-1122 | 1 | (OPTION) | |
| NEEDLE-JET,N3YC | 16187A | 16187-1123 | 1 | (OPTION) |
