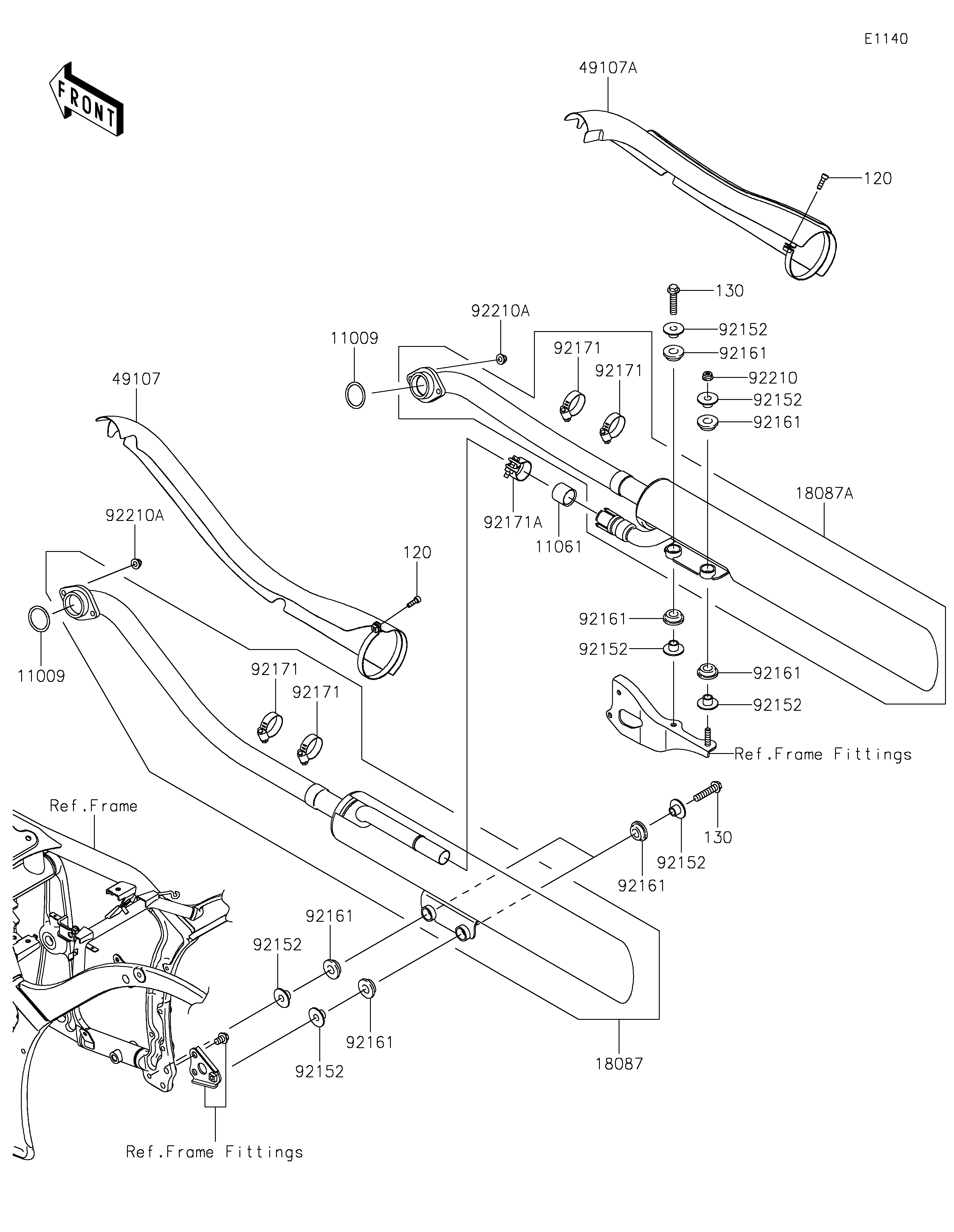

2021 VULCAN® 900 CLASSIC LT - Muffler(s)
11009
11009
11061
120
120
130
130
18087
18087A
49107
49107A
92152
92152
92152
92152
92152
92152
92152
92161
92161
92161
92161
92161
92161
92161
92171
92171
92171
92171
92171A
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1856 | 2 | ||
| GASKET,MUFFLER JOINT | 11061 | 11061-0207 | 1 | ||
| BOLT-SOCKET,6X20 | 120 | 120CC0620 | 2 | ||
| BOLT-FLANGED,8X35 | 130 | 130BB0835 | 3 | ||
| MUFFLER,FR | 18087 | 18087-0281 | 1 | ||
| MUFFLER,RR | 18087A | 18087-0282 | 1 | ||
| COVER-EXHAUST PIPE,FR | 49107 | 49107-0087 | 1 | ||
| COVER-EXHAUST PIPE,RR | 49107A | 49107-0106 | 1 | ||
| COLLAR,8.8X12X10.6 | 92152 | 92152-0082 | 8 | ||
| DAMPER | 92161 | 92161-0135 | 8 | ||
| CLAMP | 92171 | 92171-0059 | 4 | ||
| CLAMP | 92171A | 92171-0593 | 1 | ||
| NUT,FLANGED,8MM | 92210 | 92210-0004 | 1 | ||
| NUT,CAP,8MM | 92210A | 92210-1132 | 4 |
